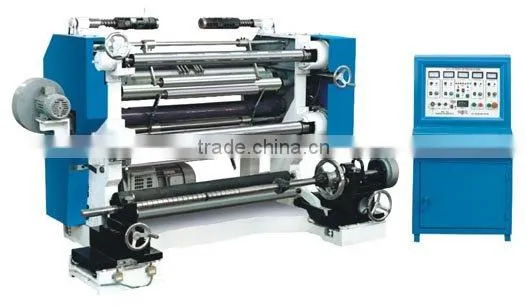

YAD-Series of Microcompter Control Auto Slitting Machines
US$ 10,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
xintai
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YAD-series High-speed Slitting MachineUS$ 10,000 - 300,000MOQ: 1 Set -
WFQ700-1300 Series Horizontal Type Computer Slip-separating MachineUS$ 10,000 - 200,000MOQ: 1 Set
-
High Speed Slitting & Rewinding MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
Slitting & Rewinding MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
FQ-HS2580 High Speed SlittingUS$ 1,000 - 30,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
xintai
Specifications
Machines in this series are suitable for stripping of reel-shape materials such as BOPP??PET??PE??PVC,aluminum foil and paper.1.They are upright striping machines.
2.Independent microcomputer control screen making easy operation.
3.magnetic powder control for tension of reeling and unreeling.
4.Auto metering with material running ,auto photoelectric error correction for unreeling .
5.Equipped with side waste scrap air-blowing sending air-blowing sending or reeling devices.
6.Dual-aire swelling shaft reeling ,smooth and level end face splitting.
7.Disc knife accessories must be selected for splitting aluminum foil and paper.
| Model | YAD-700 | YAD-1100 | YAD-1300 |
| Diameter of Width | 700mm | 1100mm | 1300mm |
| Unwinding Diameter | 600mm | 600mm | 600mm |
| Rewinding Diameter | 400mm | 400mm | 400mm |
| Slitting and rewinding speed Specification | 20-700mm | 20-110mm | 20-1300mm |
| Slitting and rewinding speed | 10-160m/min | 10-160m/min | 10-160m/min |
| Error correctiong accuracy | -2~2mm | -2~2mm | -2~2mm |
| Total Power | 3kw | 4kw | 5kw |
| Net weight of machine | 1900kg | 2100kg | 2300kg |
| Overall dimensions(L x W x H) | 1200X1900X1270mm | 1200X2300X1370mm | 1200X2500X1370mm |
