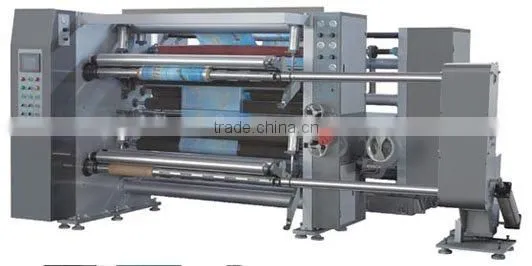

Help CenterYAD-series High-speed Slitting Machine
Related Products
-
WFQ700-1300 Series Horizontal Type Computer Slip-separating MachineUS$ 10,000 - 200,000MOQ: 1 Set -
High Speed Slitting & Rewinding MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
Slitting & Rewinding MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
FQ-HS2580 High Speed SlittingUS$ 1,000 - 30,000MOQ: 1 Set
-
Model YAD Series Vertical Automatic Separating Cutting MachineNegotiableMOQ: 1 Set
Specifications
USE:Machines in series are suitable for stripping of reel-shape materials such as cellophane paper, Aluminum-platedfilm, Foil,
FEATURE:
1.Adopt the best manner of peed+ moment ?and frequency converter timingfor automatic adjustment, is has the functions including 2.start cushion, stop working ,locking and metering, etc.
2.Adopt full automatic tension controller and powder magnetic brake for unwinding which can keep tension of unwinding invariable
3.Using taper tension controlling for frequency converter of rewinding with digital taper tension controller .
4.Adopt vector frequency converter motor for traction transmission, which can be controlled with invariable line speed.
5.Top air style shaftless fixing and liquid pressure lifting structure are adopted for raw material loading and discharging , and 7.screw motor is used for adjusting width.
6.Adopt two manner of vertical cutter and round cutter for slitting.
7.EPC edge correction with air liquid style is used for unwinding edge error correction.
8.The whole set is in fission type structure, which can make it more steady and easy operation.
9.Resistance of raw material can be reduced by new style guide roller when working.
10.Loading and discharging for material will be more convenient more convenient with new style manner.
| Width of materia | l700mm-1500mm |
| Diameter of unwinding | 1300mm |
| Diameter of rewinding | 600mm |
| Slitting and rewinding specification | 10-250m/min |
| Min. width of finished product | 30mm |
| Total power | 15kw |
| Weight of machine | 4500kg |
| Overall dimensions (L x W x H) | 3300mmX5000mmX2050mm |
