Specifications
BOPP Film Slitter Rewinder Machinery1.Width: 1100mm/ 1300mm
2.Speed: 0-160m/min
3.Unwind id: 700mm

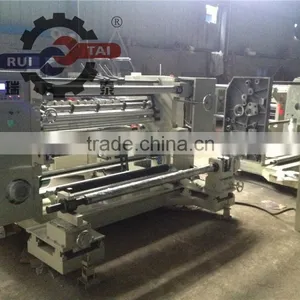

BOPP Film Slitter Rewinder Machinery
------------------------------------------------------------------------------------------------------------------------------
USE:
Machines in this series are suitable for stripping of backing materials such as self-adhesive ,aluminum foil, insulation paper.
------------------------------------------------------------------------------------------------------------------------------
FEATURE:
1.Photoelectric auto tracing and error correction devices.
2.Magnetic powder tension control.
3.Auto metering and waste scrap air-blowing devise.
------------------------------------------------------------------------------------------------------------------------------
Max width |
1300mm |
Max unwinding diameter |
700mm |
Max rewinding diameter |
600mm |
Paper core diameter |
76mm |
Slitting speed |
‹160m/min |
Precision of edge correction |
‹0.5mm |
Tension setting range |
0-80N.m |
Main power |
5kw |
Weight |
2000kg |
Dimension LxWxH |
2300x2000x1500 |
