Specifications
Printing Machines For Posters1.High Speed
2. High effiency
3.Reasonbale design.

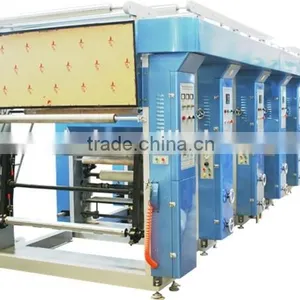

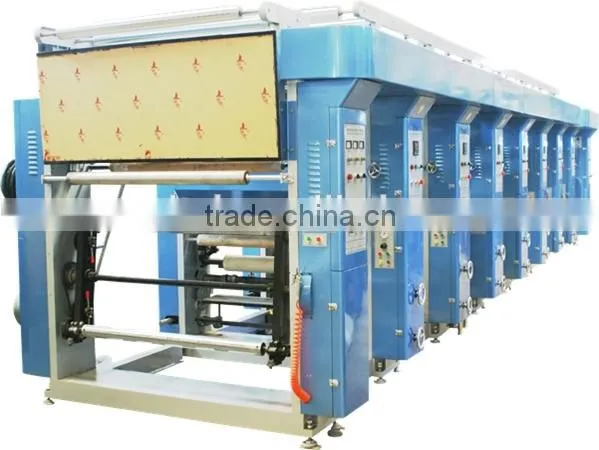

Printing Machines For Posters , Rotogravure Printing Machine
Printing Material
PVDC |
35-60micron |
PET |
12-60micron |
OPP |
20-60micron |
BOPP |
20-60micron |
PE |
30-100micron |
Nylon |
12-50micron |
CPP |
20-60micron |
Composite film |
15-60micron |
Cellophane |
20-30micron |
PVC |
32-60micron |
Paper |
30-80gsm |
|
|
Main Technical Parameters
Main parameter | |
Direction |
From left to right |
Printing color |
8 color |
Max width |
800mm |
Max machine speed |
100m/min (Φ170mm Cylinder) |
Max printing speed |
80m/min (Φ170mm Cylinder) |
Diameter of printing cylinder |
Φ120mm-Φ300mm |
Precision of register |
Lengthwise ±0.15mm (Manual register tracking) |
Cross direction ±0.15mm (Manual register tracking) | |
Unwinding diameter |
Φ700mm |
Shaft |
Air shaft |
Paper core diameter |
3" or 6" |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Air supply |
0.6Mpa |
Pressing force |
800kg |
Doctor blade swing capacity |
±5mm |
Heat way |
Electricity |
Main motor power |
15kw |
Main power |
85kw |
Dimension |
13000×2200×2800(mm)
|
Weight |
9000kg
|
Shipment
Product printed
Company Information
Hi. Welcome to visit XinTai Printing Machinery Co., Ltd., which specialize in
printing machine,
slitting machine,
laminating machine
and film blowing machine for more than 10 years.
And there are many different models of machines for you to choose.
We always pursue for meeting our customer's demand by our best. So any question, glad to service you!
Advantage & services
1. One Year warranty.
2. Our engineers available to service machinery overseas.
Contact information
XinTai Printing Machinery Co., Ltd.
Tel: 86-577-65150111 65150222
Fax: 86-577-65161177
Thank you for your time and looking forward to our cooperation!
