Specifications
Professional Taiwan Rotogravure Printing Machine for film1. High Speed,120m/min
2. Computer control
3. Reasonable design

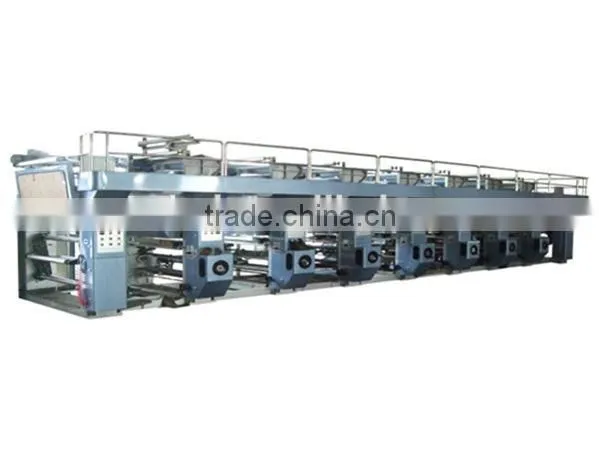

Professional Taiwan Rotogravure Printing Machine for film
Printing Material
PVDC |
35-60micron |
PET |
12-60micron |
OPP |
20-60micron |
BOPP |
20-60micron |
PE |
30-100micron |
Nylon |
12-50micron |
CPP |
20-60micron |
Composite film |
15-60micron |
Cellophane |
20-30micron |
PVC |
32-60micron |
Paper |
30-80gsm |
|
|
Main Technical Parameters
Main parameter | |
Direction |
From unwind to rewind |
Printing colour |
8 |
Max printing width |
800mm |
Max machinery speed |
150m/min |
Max printing speed |
120m/min |
Diameter of printing cylinder |
Φ120mm-Φ300mm |
Precision of register |
Vertical ±0.15mm(Auto ) Horizontal ±0.15mm(Manual) |
Unwinding diameter |
Φ600mm |
Rewinding diameter |
Φ600mm |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Air supply |
0.8mpa |
Force of impression |
500kg |
Doctor blade swing capacity |
±5mm |
Max change material speed |
180m/min |
Heat way |
Electricity |
Main motor power |
11kw |
Main power |
85kw |
Dimensions |
13000x2200x2800mm |
Shipment
Product printed
Advantage & services
1. One year warranty.
2. Our engineers available to seivice machinery overseas.
Contact information
XinTai Printing Machinery Co., Ltd.
Tel: 86-577-65150111 65150222
Fax: 86-577-65161177
Thank you for your time now and looking forward to our cooperation!
