Specifications
This gravure printing machine is used for printing of PVC shrink film. It is a combination of 6 color units. It adopts the advan
Quick Details
- Type: Rotogravure Printing Machine
- Condition: New
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: RUITAI
- Model Number: YAD-D
- Usage: Film printer
- Automatic Grade: Automatic
- Color & Page: 1-12 color
- Gross Power: 220kw
- Dimensions(L*W*H): 15500x3200x3000mm
- Plate Type: Gravure
Packaging & Delivery
| Packaging Details: | In nude |
|---|---|
| Delivery Detail: | within 60 day after receiving down payment |
<:article id=richTextContainer>
Specifications
THIS MACHINE USE FOR MULTICOLOR PRINTING OF GLASS PAPER,BOPP,PET,PVC,PE,ALUMINIUM FOIL&PAPER IN ROLL .
------------------------------------------------------------------------------------------------------------------------------

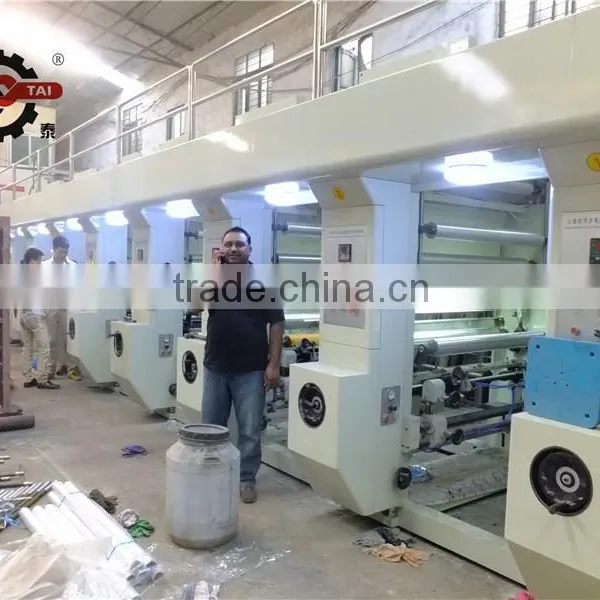

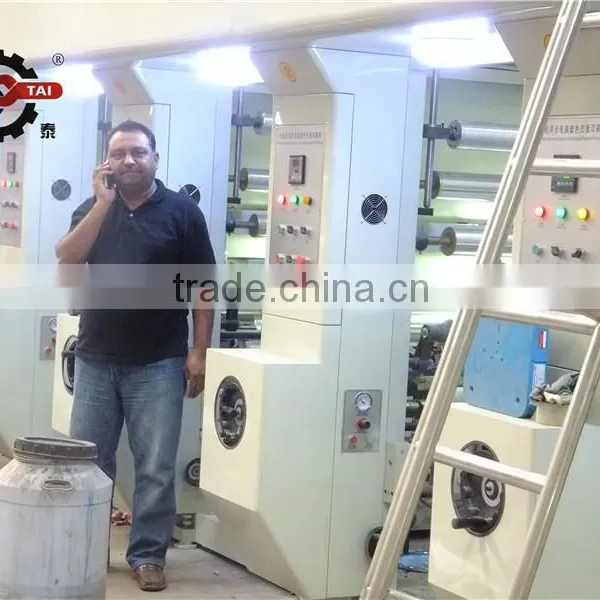

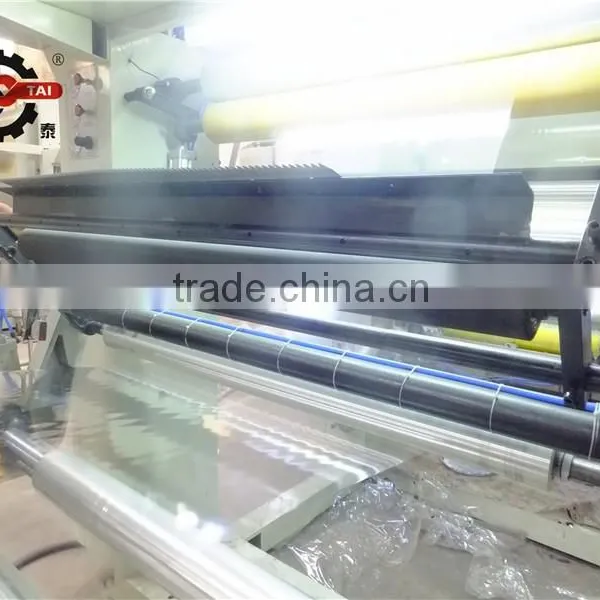

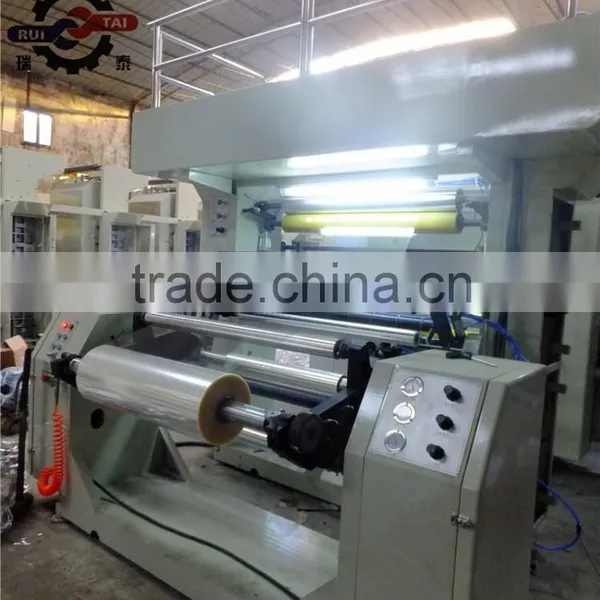

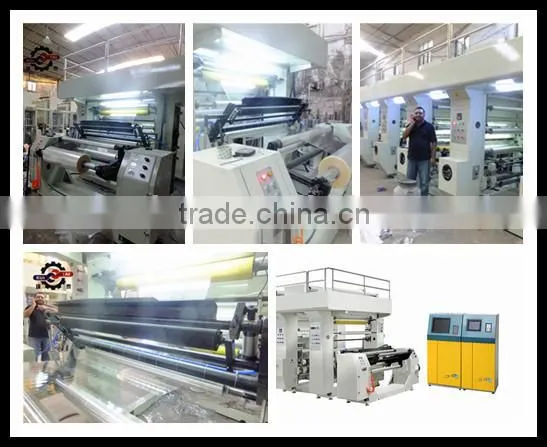

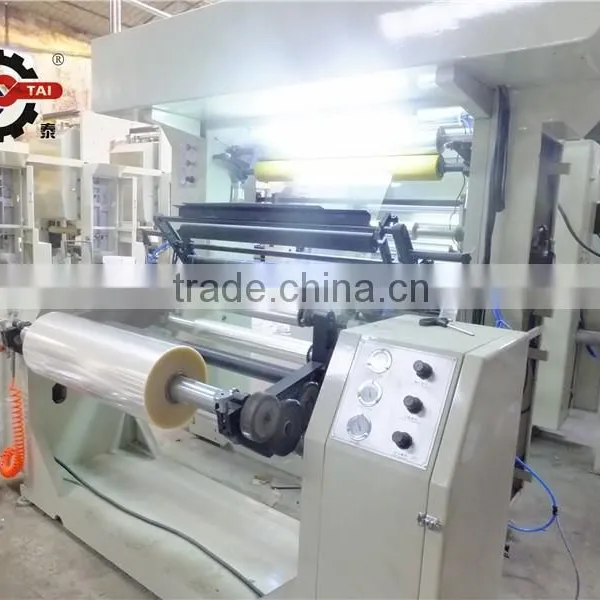

HIGH-SPEED COMPUTER COLOUR REGISTER GRAVURE PRINTING MACHINE
------------------------------------------------------------------------------------------------------------------------------
USE:
PVDC 35-60um PET 12-60um
OPP 20-60um BOPP 20-60um
PE 30-100um NY 12-50um
CPP 20-60um Combination 15-60um
And similar size film material.
------------------------------------------------------------------------------------------------------------------------------
Feature:
1. Independent tower type double arm duplex position slewing and wall rack combination
2. Independent driving control system: Digital AC frequency control system
3. Auto alarm change materials, new material auto driving at the same speed with main machine
4. High speed non-stop change material, save time
5. AC control active unwinding, Zero tension control, have steady output in both low or high speed
6. High-sensitivity tension closed loop control system
7. Install printing cylinder without shaft
8. Independent heating system in every color unit
9. Intelligent continuous constant temperature control.
10. Wind insert closed oven
------------------------------------------------------------------------------------------------------------------------------
Main Specification
Main parameter | |
Direction |
From unwind to rewind |
Printing colour |
8 |
Max printing width |
1000mm |
Max machinery speed |
180m/min |
Max printing speed |
150m/min |
Diameter of printing plate |
Φ120mm-Φ300mm |
Precision of register |
Lengthwise ±0.10mm(Auto register) Crosswise ±0.10mm(Manual) |
Diameter of unwinding |
Φ600mm |
Diameter of rewinding |
Φ600mm |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Air supply |
0.8mpa |
Press and print pressure |
500kg |
Scraper swing capacity |
±5mm |
Max change material speed |
180m/min |
Heat way |
Electricity |
Main motor power |
15kw |
Main power |
220kw |
Dimensions |
15500x3200x3000mm |
Weight |
13000kg |
------------------------------------------------------------------------------------------------------------------------------
