Home > Packaging & Printing > Printing Machinery > Rotogravure Printing Machine > XT-YAD-A-800 Intaglio Printing Machine 6 Color

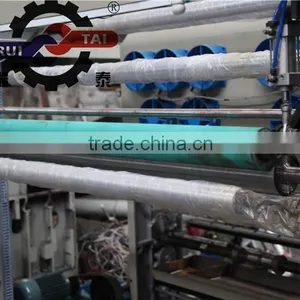

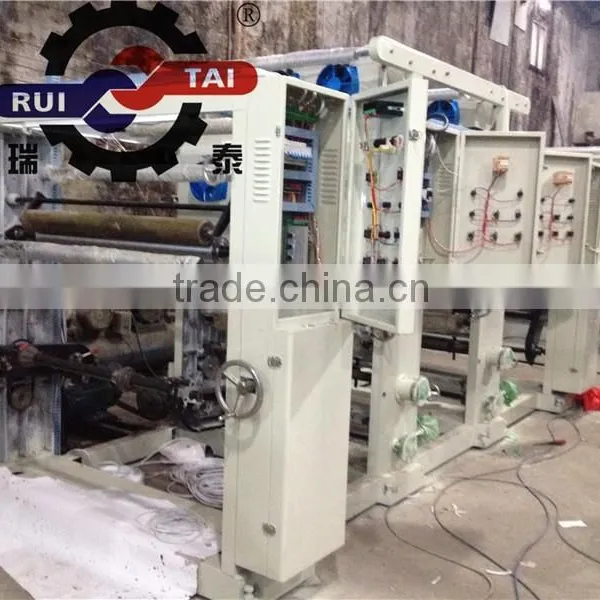

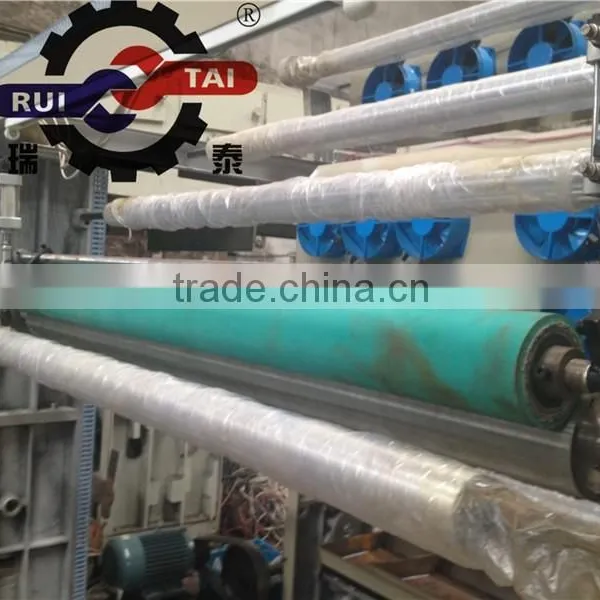

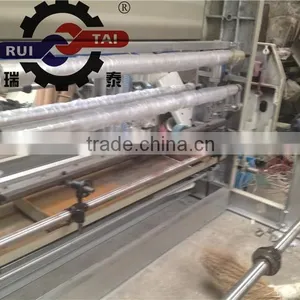

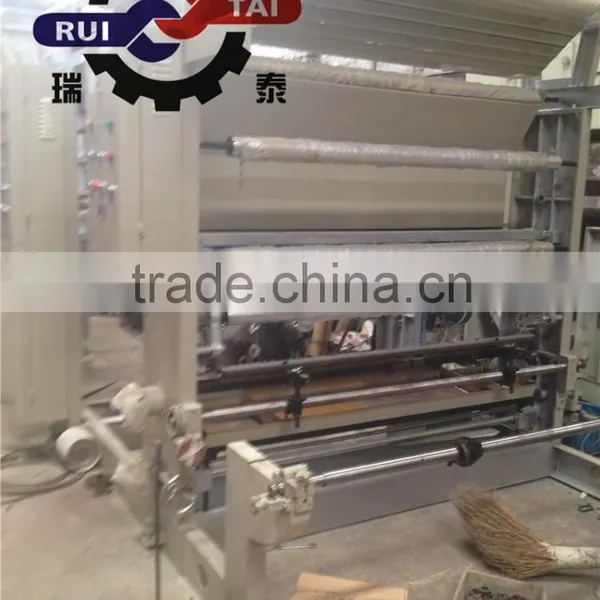

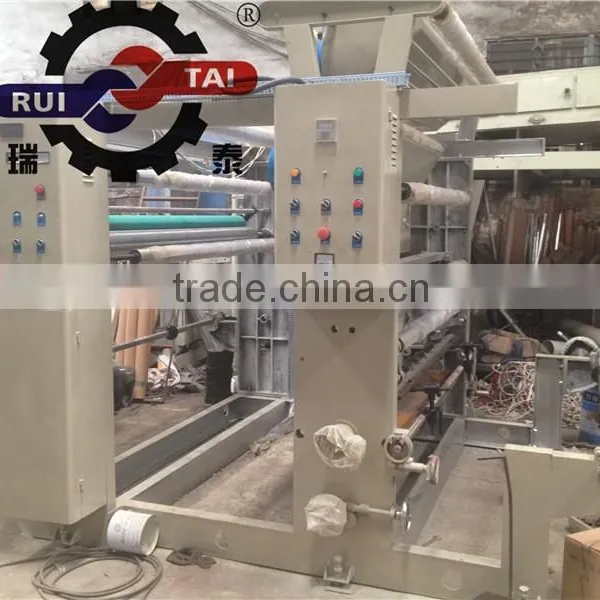

XT-YAD-A-800 Intaglio Printing Machine 6 Color
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
RUI TAI
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Color High Speed Printing MachineUS$ 50,000 - 150,000MOQ: 1 Set -
Computer Gravure Press/Film Printing MachineNegotiableMOQ: 1 Set
-
Best Sell Medium-speed Rotogravure Printing Machine,Computer Automatic OPP/BOPP Intalio PressNegotiableMOQ: 1 Set
-
HIGH-SPEED COMPUTER COLOUR REGISTER GRAVURE PRINTING MACHINENegotiableMOQ: 1 Set
-
Low Price Roto Computer New Type Gravure Printing MachineUS$ 10,000 - 150,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
RUI TAI
Model Number
XT-YAD-A-800
Usage
Paper Printer, Label Printer, Card Printer, Bill Printer, Other, Paper Printer, Label Printer, Card Printer, Bill Printer, Film and paper printer
Automatic Grade
Automatic
Gross Power
45kw
Dimensions(L*W*H)
9000x1700x2300mm
Specifications
1. Independent tower type double arm duplex position slewing and wall rack combination2. Independent driving control system
Materials
PVDC |
35-60micron |
PET |
12-60micron |
OPP |
20-60micron |
BOPP |
20-60micron |
PE |
30-100micron |
Nylon |
12-50micron |
CPP |
20-60micron |
Composite film |
15-60micron |
Cellophane |
20-30micron |
PVC |
32-60micron |
Paper |
38-80gsm |
Non-woven fabric |
|
|
|
Direction |
From unwind to rewind |
Printing colour |
3 |
Max printing width |
800mm |
Max machinery speed |
60m/min(Φ170mm) |
Max printing speed |
10-60m/min(Φ170mm) |
Diameter of printing cylinder |
Φ120mm-Φ300mm |
Precision of register |
Vertical ±0.15mm Manual Horizontal ±0.15mm Manual |
Unwinding diameter |
Φ600mm |
Rewinding diameter |
Φ600mm |
Tension |
3-30Kg |
Precision of tension |
±0.5Kg |
Doctor blade swing capacity |
±5mm |
Heat way |
Electricity |
Main motor power |
5.5kw |
Main power |
45kw |
Dimensions |
9000x1700x2300mm |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
1997
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
