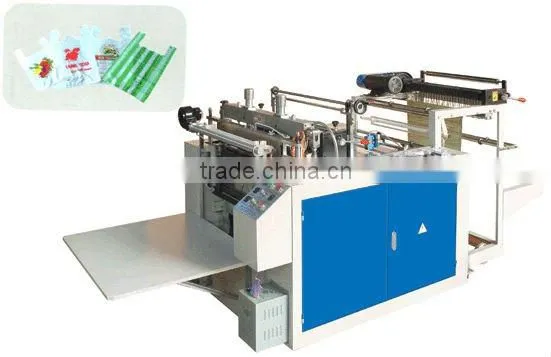

Heat-sealing&Heat-cutting Vest Bag-making Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Machine Type:
Bag Forming Machine
Bag Type:
T-shirt Bag
Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-speed Double-channels Heat-sealing Heat-cutting Product-Line Bag-making MacUS$ 10,000 - 30,000MOQ: 1 Set -
Bag-making Machine Wiht Hot Sealing and Cold Cutting Without PullingUS$ 10,000 - 30,000MOQ: 1 Set
-
Automatic Two Layer Four Lines Bag Making MachineUS$ 10,000 - 200,000MOQ: 1 Set
-
500-600 High-speed (Three-servo) Three-side Sealing Zipper StandingUS$ 1,000 - 200,000MOQ: 1 Set
-
DFR-600 \ DFR-700 Computer Full-automatic Heat-sealing Bag Making MachineUS$ 1,000 - 20,000MOQ: 1 Set
Machine Type
Bag Forming Machine
Bag Type
T-shirt Bag
Material
Plastic
Computerized
Yes
Place of Origin
Zhejiang, China
Brand Name
xintai
Specifications
Use:It is suitable for hot sealing and cutting both white and color plastic film, which made of HDPE, LDPE etc. It is the mo
Characteristic:
1.Sealing & cutting blade are in reasonable structure, convenient clean/exchange rubberized fabric.
2.It adopts imported photoelectrical cell to track printing with function; if lose sign, the machine stops automatically.
3.It adopts micro computer to control, servo motor to pull material; and producing piece number can be set up freely, no-stop than feeding out material automatically.
4.It adopts photocell to track. If material is blocked or out of material, machine will stops automatically.
Main Technical Variables
| Model of machine | YAD/500A-HC | YAD/700A-HC |
| Producing length(mm) | 800 | 1000 |
| Producing width(mm) | 400 | 600 |
| Thickness of film(mm) | 0.01-0.05 | 0.01-0.05 |
| Produing speed (pcs/min) | 30-130 | 30-120 |
| Main power (kw) | 3.5 | 4.5 |
| Power source | 220V 50Hz | 220V 50Hz |
| Weight of machine (kg) | 750 | 800 |
| Overall dimensions(L×H×W) | 2.9×1.15×1.25 | 2.9×1.35×1.25 |
