Specifications

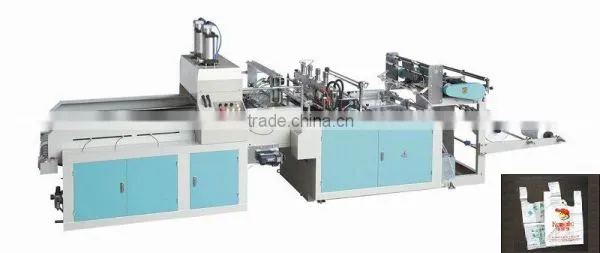

Use :It is suitable for hot sealing and cutting both monochrome and color plastic film ,which make of HDPE ,LDPE .Featute :
1. Especially designed for hot sealing and cutting of T-shirt bag .It can be punched automatically in two production line which will increase the production and save the manpower.
2. Double track designs ,double production lines ,double photo scanners ,double servo motors .
3. Photocell for accurate registration of film printing points if the photocell can’t catch printing point the machine will stop automatically.
4. Inverter control speed ,easy operation ,reduce electric consumption .
5. Automatic stopping when run out of film.
6. When the output bags reach the setting number, the punch machine will clamp the bags, without stop.
7. New designed sealing blade ,when blade need be cleared up ,it can be turned
180°and fixed . It will be safe and easy to take care .
8. Strong sealing and output bags being tear up neatly.
9. Punching machine use air and liquid pressurized cylinder, so the noise is low and the gas consumption is little.
The main Technical Parameters:
Model |
YAD-2T/BM350-HC |
Producting width (mm) |
330 |
Producing length (mm) |
300-650 |
Film thickness (mm) |
0.01-0.035 |
Producing speed (pcs/min) |
100-160 |
Power. |
380v 50Hz |
Main power(kw) |
10 |
Gross Weight (kg) |
1800 |
Overall Dimensions (L*W*H)(m) |
5.5*1.48*1.7 |
