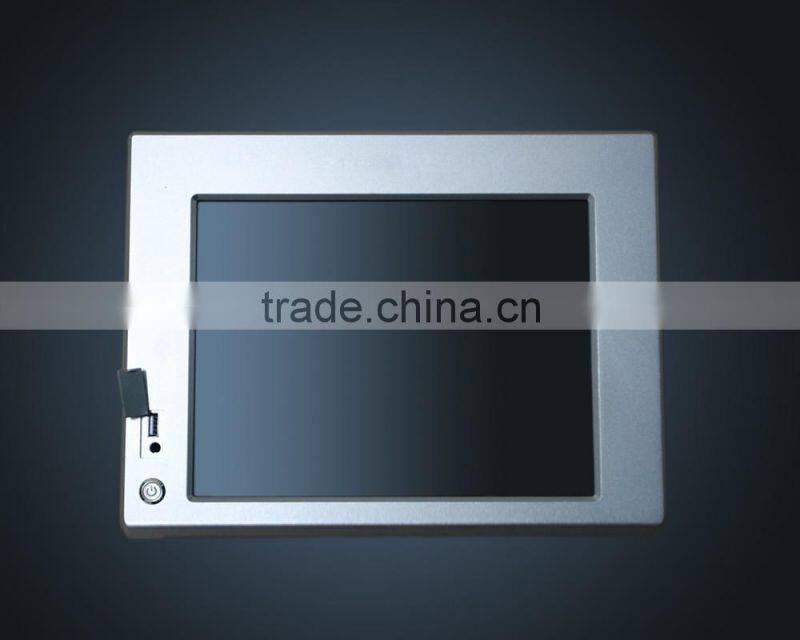

Waterproof & Dustproof 10.4 inch aluminum front panel pc industrial all in one
Features:

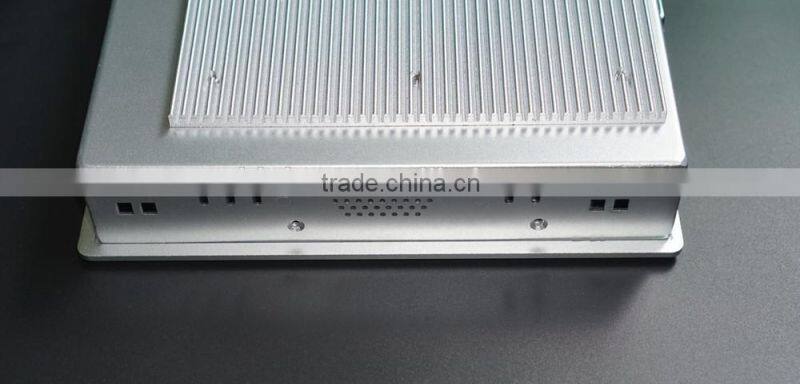

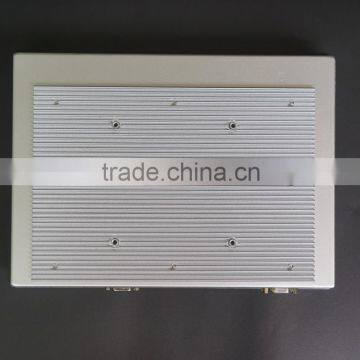

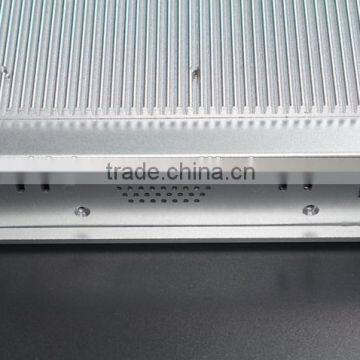

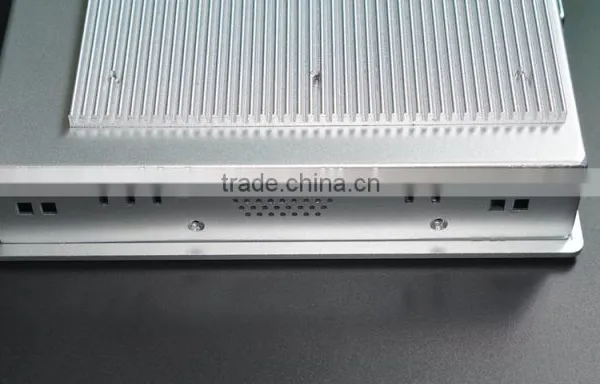

1. Adopt aluminunium allloy case, beautiful and durable, good heat dissipation.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 point capacitive touch screen, high precision, durable, anti-interference
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and panel mount etc. apply to a wide range of industrial application.
Model:SC104 | |
PC | |
CPU | Intel® Celeron 1037u 1.8GHz , dual core |
Chipset | Intel NM70 |
Memory | 2G DDR3, ( Max. 8G) |
Hard Drive Capacity | 32G SSD |
Hard Drive Optional | SSD: 32GB,64GB,128GB,160GB |
HDD: 160GB,320GB,500GB,1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI optional |

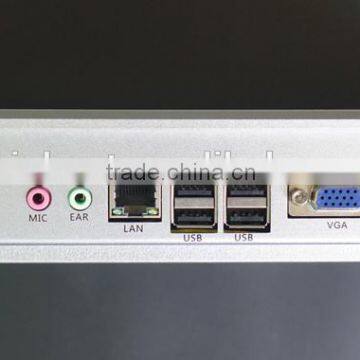

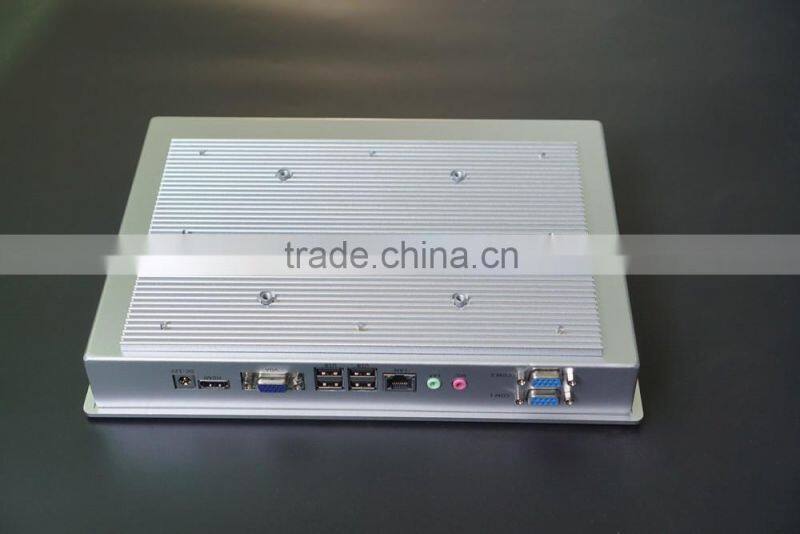

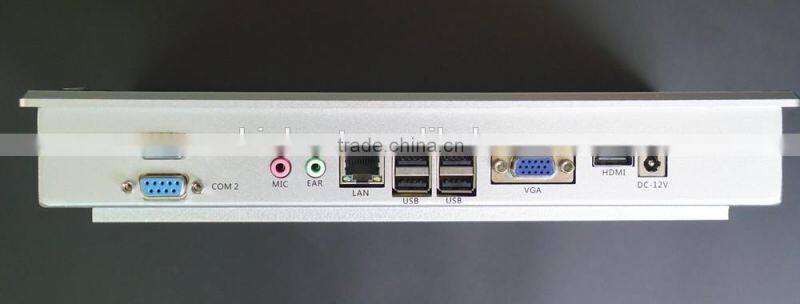

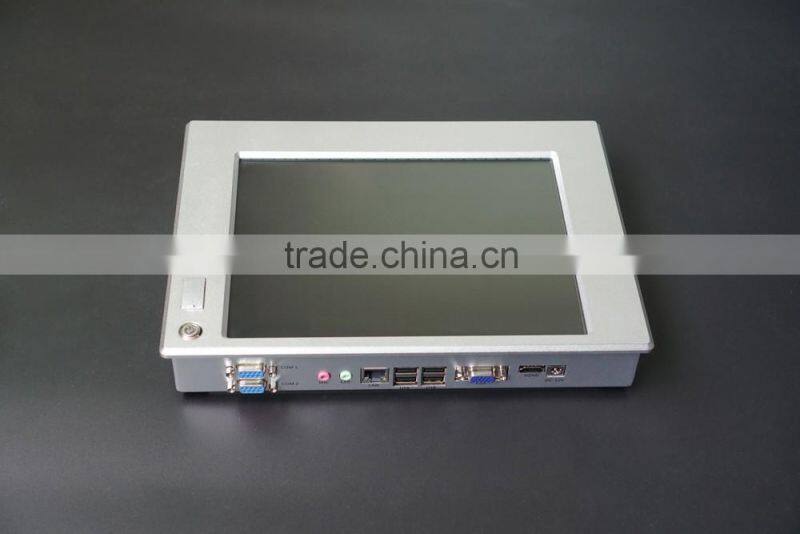

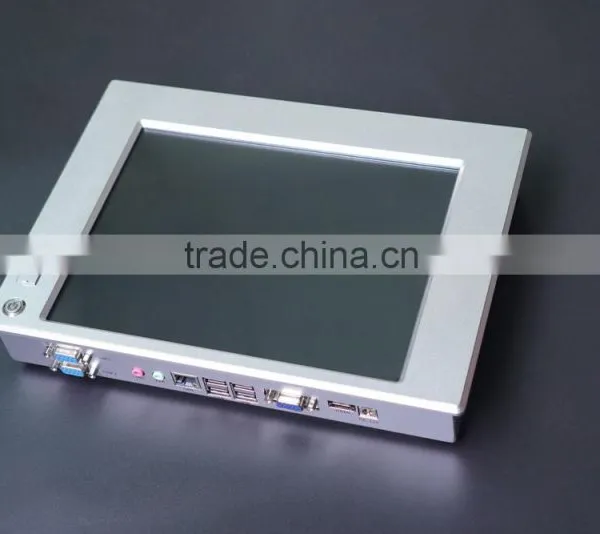

I/O Interface | 2×USB2.0 , 2×USB3.0, 2 x COM RS232, 1×USB 2.0 in front bezel |
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Opetation System | Preinstall test version Windows xp |
LCD panel | |
Panel size | 10.4" |
Resolution | 1024*768 |
Aspect ratio | 4:3 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 300+ |
Response time | 10ms |
Contrast ratio | 500:1 |
View angle | 80°/80°/70°/70° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 point capacitive touch |
Touch Interface | USB (RS232 optional) |
Touch response time | <8ms |
Luminousness | 75-85% |
Surface Hardness | 3H |
Working Life | >5 million times |
Touch options | ( 5 wires resistive touch, IR ,SAW touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤18W |
Enclosure | |
Material | Aluminum Alloy + High strength cold rolled steel |
Color | Silver , color can be customized |

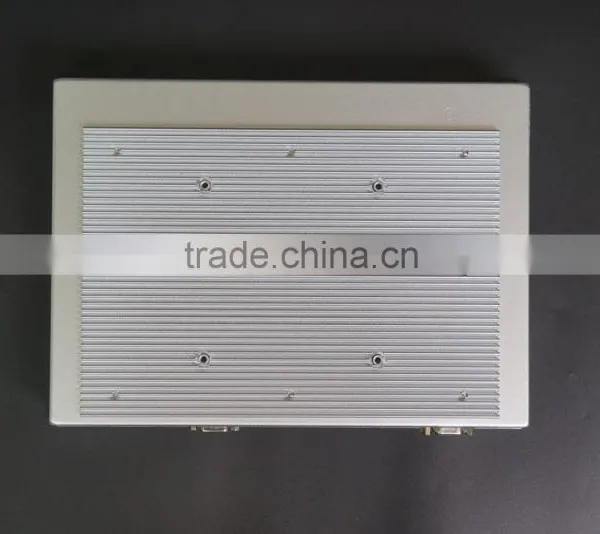

VESA mounting | 100×100mm |
Operating Environment | |
Temperature Range | operating: -25 to 75°C, storage :-30 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 3kg |
Gross weight | 4kg |
Product Dimension | 28.9×21.1×4.3 cm |
Packing size | 37×34×16 cm |
Accessories | Power adapter, embedded mounting screws, wall mounting bracket (optional) |
Other | |
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Warranty | 1 year warranty |
