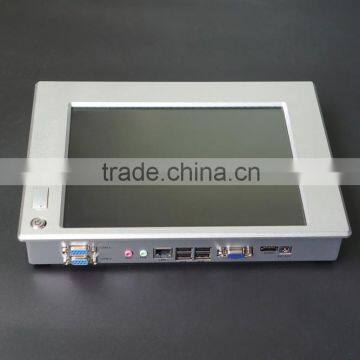

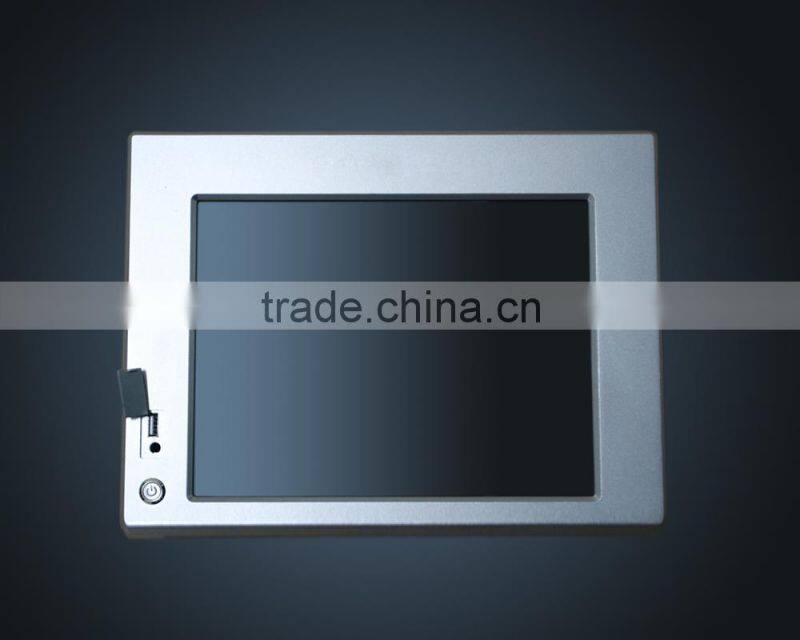

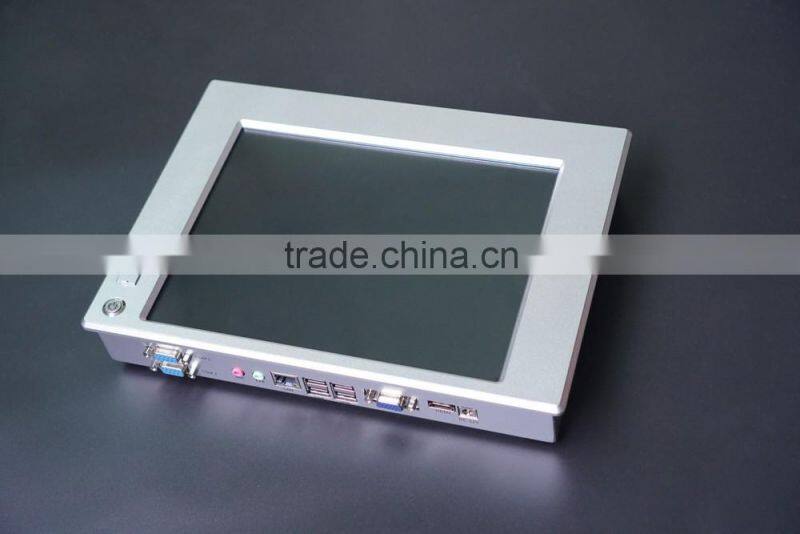

customized application 15'' ip65 rugged industrial touchscreen panel PC
Features:

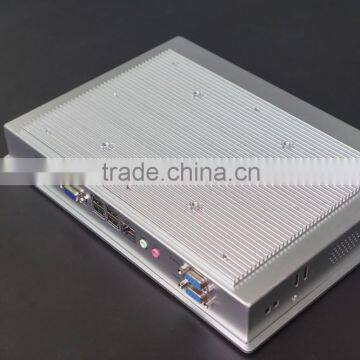

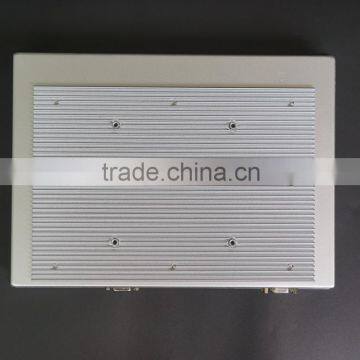

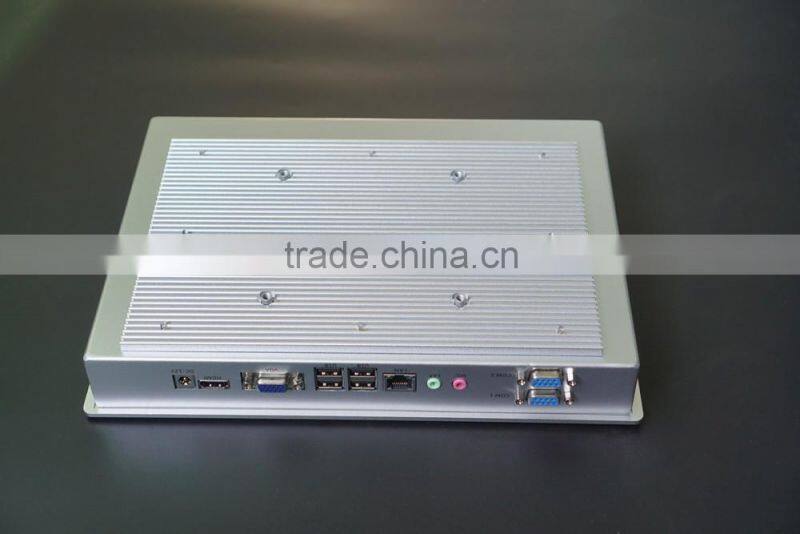

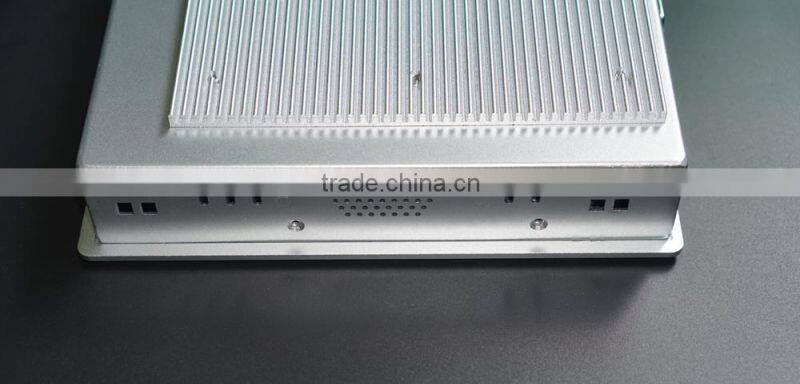

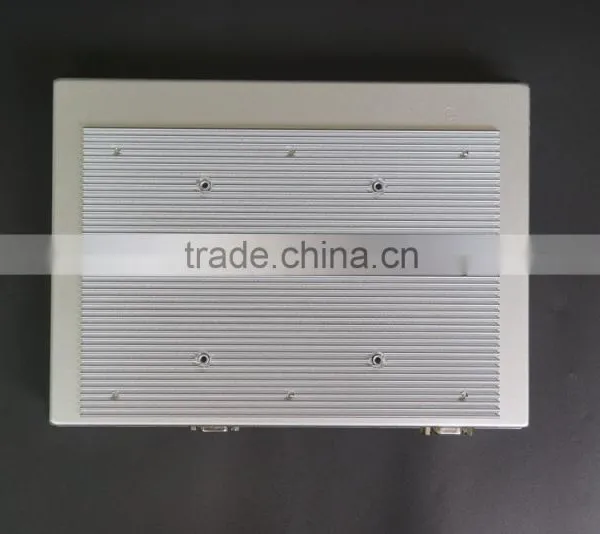

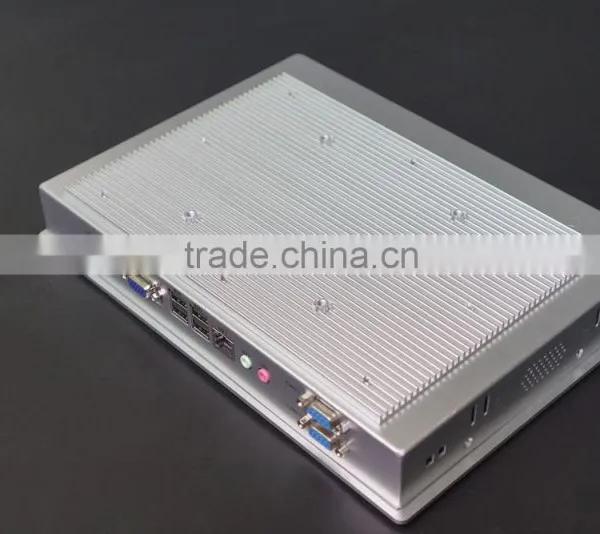

1. Adopt aluminunium allloy case, beautiful and durable, good heat dissipation.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 point capacitive touch screen, high precision, durable, anti-interference
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and panel mount etc. apply to a wide range of industrial application.
Model:SC15W | |
PC | |
CPU |
Intel® Celeron 1037 1.8GHz , dual core |
Chipset |
Intel NM70 |
Memory |
2G DDR3, ( Max. 8G) |
Hard Drive Capacity |
32G SSD or 320G HDD |
Hard Drive Optional |
SSD: 16GB,32GB,64GB,128GB,160GB |
HDD: 160GB,320GB,500GB,1TB | |
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
Wireless Network |
WIFI optional |

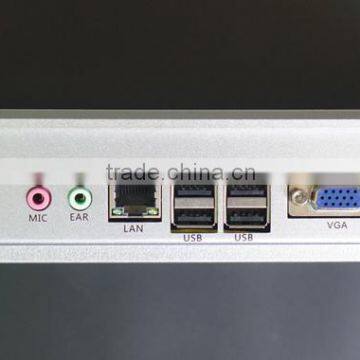

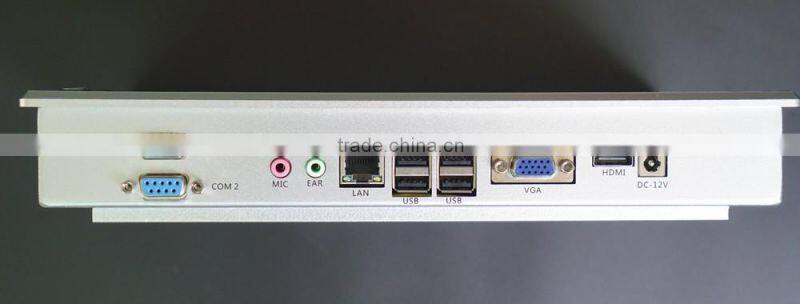

I/O Interface |
2×USB2.0 , 2×USB3.0, 2 x COM RS232 |
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Opetation System |
Preinstall test version Windows 7 |
LCD panel | |
Panel size |
15" |
Resolution |
1024*768 |
Aspect ratio |
4:3 |
Support Color |
16.7M colors |
Brightness (cd/m²) |
400+ |
Response time |
10ms |
Contrast ratio |
700:1 |
View angle |
70°/70°/65°/60° (R/L/U/D) |
Touch panel | |
Touchscreen Type |
4 wire resisitve touch |
Touch Interface |
USB (RS232 optional) |
Touch response time |
<8ms |
Luminousness |
75-85% |
Surface Hardness |
3H |
Working life |
>5 million times |
Touch options |
( 5 wires resistive touch, IR ,SAW touch optional) |
Power Supply | |
External Power Supply |
AC 100 - 240V |
Working voltage |
DC 12V |
Power consumption |
≤30W |
Enclosure | |
Material |
High strength cold rolled steel |
Color |
Black, white, Silver , color can be customized |
VESA mounting |
100×100mm |
Operating Environment | |
Temperature Range |
operating: -25 to 75°C, storage :-30 to 80°C |
Relative humidity |
5%~95% @ 40° C, non-condensing |
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight |
3.3kg |
Gross weight |
5kg |
Product Dimension |
33.2×26.1×5.25 cm |
Packing size |
42.0×35.0×16.0 cm |
Accessories |

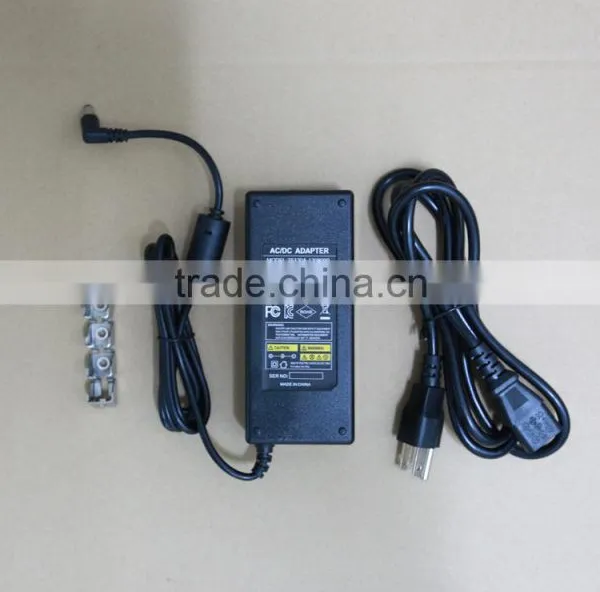

Power adapter, USB touch CD drive, touch pen, wall mounting bracket (optional) |
Other | |
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Certification |
CE, FCC, ROHS |
Warranty |
1 year warranty and 3 years free maintenance |
1. Our products have one year warranty.
2. Within one year warranty, if there is quality problem happening to the products, you can send us the pictures or video to showing the fault phenomenon, so can help us to find out the cause of failure, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and re-send it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of warranty
5. If your product is our of warranty, we will charge you the factory cost for the replaced accessories.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the product.
7. Complaint Feedback: We set up the service hotline. After receipt of your complaint feedback, we will send the qualified personnel to contact you within 12 hours and solve your complaint.
Service hotline: +86-0755-36921825
