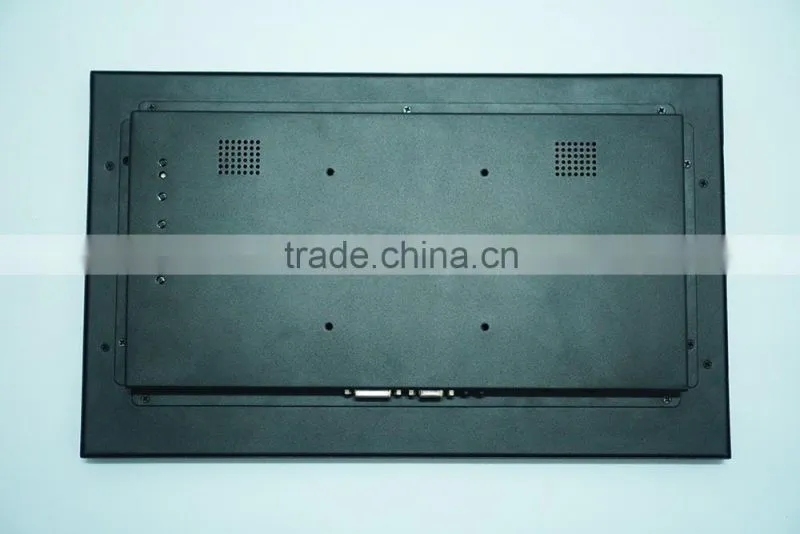

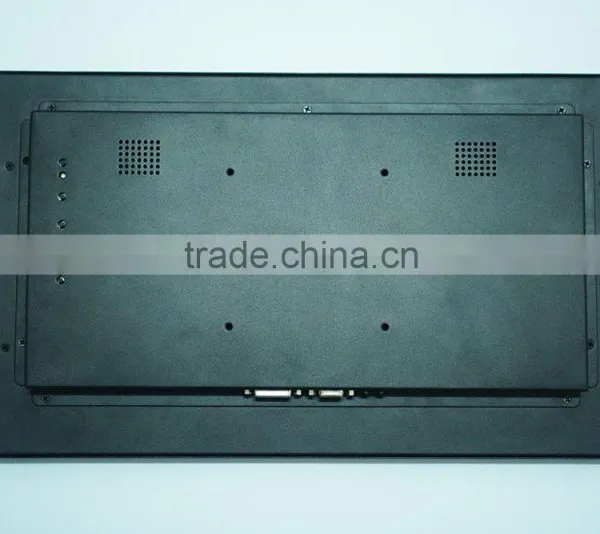

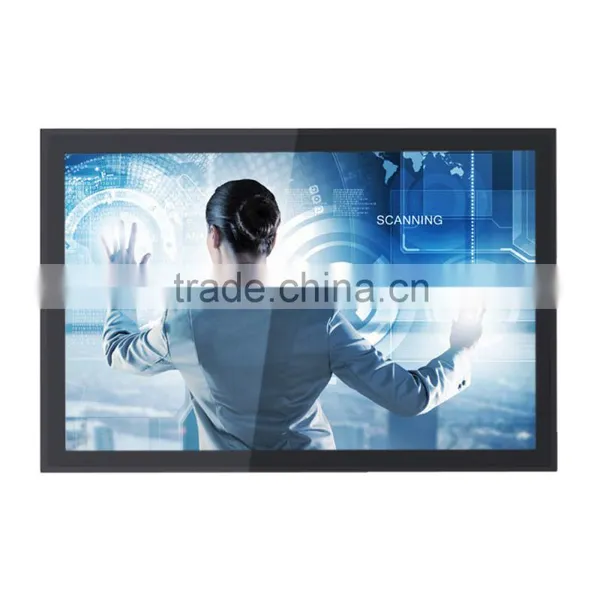

17.3 inch 1920*1080 full HD capacitive touch monitor
Features:
1. Robust and durable all-metal enclosure, dustproof and shockproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Multi-points PCAP touch panel , high sensitive and fast-response
4. High performance mainboard, 7x24 continuous operation.
5. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility.
Model:SL173C | |
LCD panel | |
Panel size |
17.3" |
Resolution |
1920*1080 |
Aspect ratio |
16:9 |
Support Color |
16.7M colors |
Brightness (cd/m²) |
400+ |
Contrast ratio |
600:1 |
View angle |
80°/80°/60°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type |
Project Capacitive Touch (10 points ) |
Surface Hardness |
7H |
Luminousness |
90% |
Touch Interface |
USB (RS232 optional) |
Touch response time |
2ms |
Working Life |
>50 million times |
Touch options |
(4 or 5 wires resistive touch, IR ,SAW touch optional) |
Singal Ports | |
VGA |
1×VGA |
HDMI |
1×HDMI |
DVI |
1×DVI |
AV |
optional |
Audio in/out |
optional |
OSD | |
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
Power Supply | |
External Power Supply |
AC 100 - 240V |
Working voltage |
DC 12V |
Power consumption |
≤25W |
Enclosure | |
Appearance |
Flat panel |
Material |
High strength cold rolled steel |
Color |
Black, white, Silver , color can be customized |
VESA mounting |
100×100mm |
Ingree Protection |
IP65 optional |
Operating Environment | |
Temperature Range |
operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Net weight |
3.9kg |
Gross weight |
5.8kg |
Product Dimension |
40.5×24.2×4.5 cm |
Packing size |
53×36.2×13.5 cm |
Accessories |
Power adapter, HDMI /VGA/DVI cable, USB touch cable, touch pen |
Other | |
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Certification |
CE, FCC, ROHS |
Warranty |
1 year warranty and 3 years free maintenance |
