10.1 inch capacitive touch monitor for raspberry pi
Features:
1. Robust and durable front aluminium alloy + back metal enclosure, dustproof and shockproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Multi-points PCAP touch panel , high sensitive and fast-response
4. High performance mainboard, 7x24 continuous operation.
5. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility.
Model:SL101C | |
LCD panel | |
Panel size |
10.1" |
Resolution |
1280*800 |
Aspect ratio |
16:10 |
Support Color |
16.7M colors |
Brightness (cd/m²) |
300+ |
Response time |
5ms |
Contrast ratio |
800:1 |
View angle |
85°/85°/85°/85° (R/L/U/D) |
Touch panel | |
Touchscreen Type |
Project Capacitive Touch (10 points ) |
Surface Hardness |
7H |
Luminousness |
90% |
Touch Interface |
USB (RS232 optional) |
Touch response time |
2ms |
Working Life |
>50 million times |
Touch options |
(4 or 5 wires resistive touch, IR ,SAW touch optional) |
Singal Ports | |
VGA |
1×VGA |
HDMI |
1×HDMI |
DVI |
1×DVI |
AV |
optional |
Audio in/out |
optional |
OSD | |
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
Power Supply | |
External Power Supply |
AC 100 - 240V |
Working voltage |
DC 12V |
Power consumption |
≤6.5W |
Enclosure | |
Appearance |
flat panel |
Material |
High strength cold rolled steel |
Color |
Black, white, Silver , color can be customized |
VESA mounting |
75×75mm |
Ingree Protection |
IP65 optional |
Operating Environment | |
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
Relative humidity |
operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Net weight |
1.25kg |
Gross weight |
2.5kg |
Product Dimension |
24.5×15×3cm |
Packing size |
32×31.5×12cm |
Accessories |

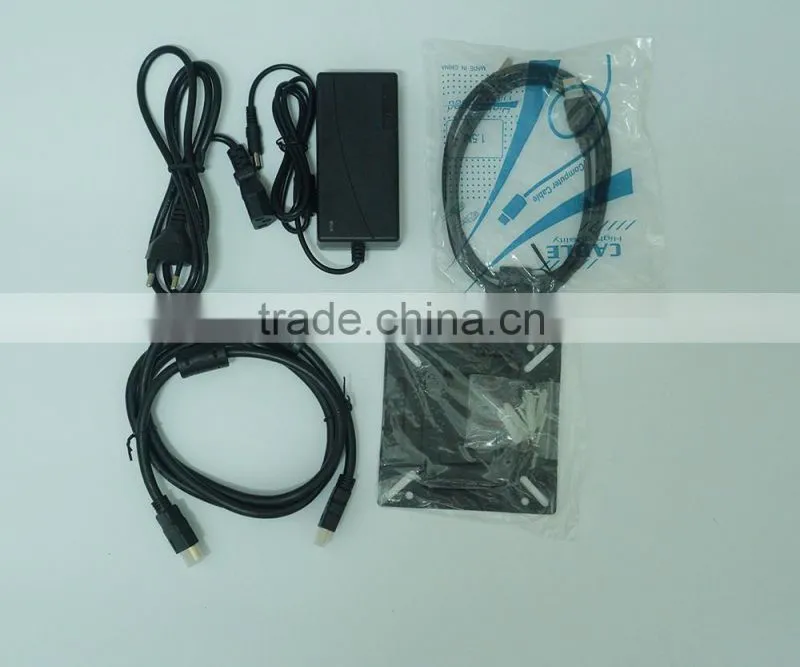

Power adapter, HDMI /VGA/DVI cable, USB touch cable, touch pen |
Other | |
Mounting (options) |
1) provide wall brackets for wall-mounting, VESA 100*100mm, 200*200mm |
2) provide stable metal holder to support the monitor | |
Certification |
CE, FCC, ROHS |
Warranty |
1 year warranty and 3 years free maintenance |
1. Our products have one year warranty
2. Within one year warranty, if there is quality problem happening to the products, you can send us the pictures or video to showing the fault phenomenon, so can help us to find out the cause of failure, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and re-send it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of warranty
5. If your product is our of warranty, we will charge you the factory cost for the replaced accessories.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the product.
7. Complaint Feedback: We set up the service hotline. After receipt of your complaint feedback, we will send the qualified personnel to contact you within 12 hours and solve your complaint.
Service hotline: +86-0755-36921825
