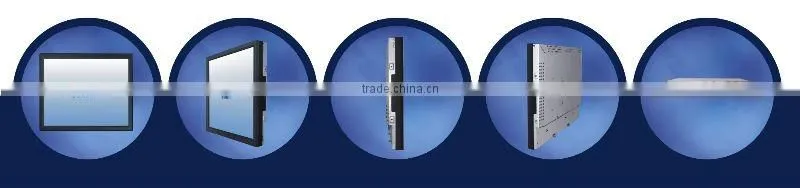

Help CenterLeadingtouch 15"/17"/19"/22" 5-Wire Resistive Touch Monitor
Related Products
-
Leadingtouch 17" Open Frame KIOSKS SAW Touch MonitorUS$ 200 - 400MOQ: 1 Unit -
Leadingtouch 17" Open Frame Infrared Multi Touch IR Touch Monitor for Kiosks TM-1729US$ 200 - 300MOQ: 1 Unit
-
Open Frame Touch Monitor for Kiosks 15,17,19,22 InchUS$ 200 - 400MOQ: 1 Unit
-
Leadingtouch 17" Multitouch Open Frame Infrared IR Touch Monitor for Kiosks TM-1729US$ 250 - 300MOQ: 1 Unit
-
Leadingtouch 17" IP65 Panel Mount IR Multi-Touch Touch Monitor TM-1729US$ 200 - 300MOQ: 1 Unit
Specifications
1. Open frame and Rear-Mount touchmonitor2, Dual 232 and USB touch interface
3, Compatiblie ELO or 3M driver
TM-1545 15" Open Frame 5 Wire Resistive LCD Touchmonitor
1, 5 -wire resistive touch screen
2, Serial and USB combin touch interface
3, elo open frame compatibile model:ET1537L
4, Agency Approval:Leadingtouch touchscreens, controllers, and cables have been approved for CE marking. Where appropriate, Touchmonitors are marked CE compliant, and are typically Class B. Systems incorporating leadingtouch touchscreens, controllers, and cables have been approved to FCC Class A compliance. Touchmonitors typically are FCC Class B verified RoHS
Model |
TM-1545 |
Description |
15” TFT Desktop Touchmonitor |
Case/Bezel Color |
Black |
Display |
4:3 Ratio Active matrix TFT LCD |
Optimal(native) resolution |
1024X768@60Hz |
Sychronization Range |
Horizontal:30-80 kHz; Vertical: 56.3-75Hz |
Useful screen area |
Horizontal: 11.93" (303 mm);Vertical: 8.96" (227.6 mm) |
Colors |
16.7 million |
Brightness |
LCD panel: 250 cd/m2 (typical) |
With touchscreen: 230 cd/m2 (typical) | |
Pixel Pitch |
0.297 x 0.297 mm |
Response Time |
16 msec (typical) |
Contrast ratio |
450:1 typical |
Viewing angle(typical, from center) |
Horizontal (left/right): 120°(60° /60° ) |
Vertical (up/down): 100°(50° /50° ) | |
Backlight Lamp life |
50,000 Hrs to 1/2 brightness |
Input video format |
VGA or DVI optional |
Input video signal connector |
Mini D-Sub 15-Pin VGA type |
On Screen Display(OSD) |
Multilingual OSD |
Touch Technology |
5 Wire Resistive Touch |
Touch Interface |
Combo USB and Serial(232) interface |
Touch Resistive Time |
16ms |
Mounting Options |
Rear Fixed, 75 mm VESA mount, removable tilt base |
Power supply |
External:100-240V AC, 50-60 Hz |
Power Consumption |
50W max |
Temperature Range |
Operating: 0°C to 50°C; Storage: -20°C to 60°C |
Humidity Range |
Operating: 20%-85%; Storage: 10%-95% |
Touchmonitor Dimension |
336.4 x 2644 x 44.5(mm) |
Shipping Carton Dimension |
410 x 360 x 165(mm) |
Weight(approx.) |
Monitor: 4.8kg / shipping: 7kg |
Warranty |
Monitor: 3 years’; LCD Panel: 1 year |
Agency Approvals |
FCC, CE, RoHS compliant |
