Leadingtouch 6000S Surface Acoustic Wave SAW Touch RS232 Controller

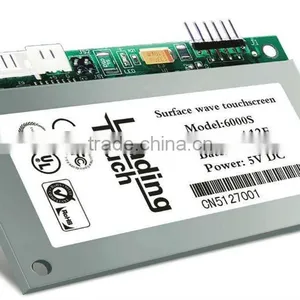

Leadingtouch 6000S Surface Acoustic Wave SAW Touch RS232 Controller thumbnail-1

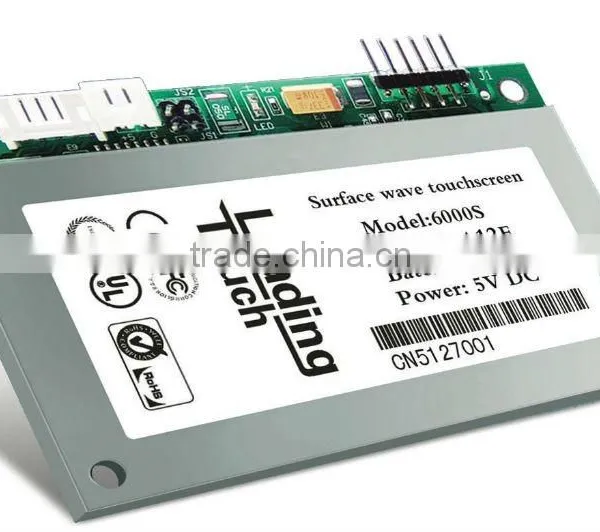

Leadingtouch 6000S Surface Acoustic Wave SAW Touch RS232 Controller photo-1
US$ 30 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
LeadingTouch
Model Number:
6000S SAW rs232 Controller
Contact Supplier Request Quote Chat Now
Leadingtouch Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name LeadingTouch
Model Number 6000S SAW rs232 Controller
Type Other, Touch Panel

Specifications

1, Support ELO driver and 3M driver
2, Support 5"-42" surface acoustic wave SAW touch panel

LeadingTouch 6000S Surface Acoustic Wave(SAW) Serial(232) Controller
, the controller supplied by Leadingtouch, is designed for Surface Acoustic Wave touchscreen,
 .Can support full series of SAW touch product .

* Serial(RS232) interface for Surface Wave tocuhscreen
* Support size of touchscreens from 5” to 40”
* Support full serials of SAW touch products

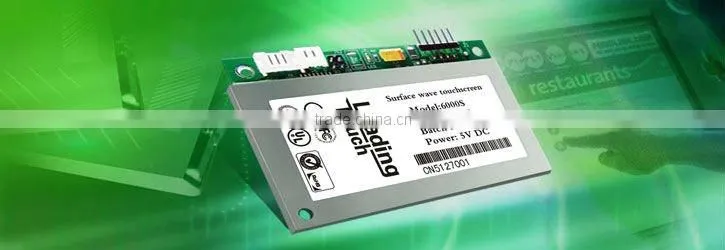

Leadingtouch 6000S Surface Acoustic Wave SAW Touch RS232 Controller

Model 6000S
Construction Four-layer surface-mount design with internal ground plane for EMI suppression.
Dimensions Total width: 2.46 inches (62 mm), including connectors
Total length: 3.45 inches (87.5 mm)
Total height: 0.47 inches (11.8 mm)
Supply Voltage +5 VDC, nominal (+4.75 to +5.25V DC), and Current 85mA typical, 105mA maximum at +5 VDC.
Typical power dissipation is 425mW at 5V. Minimum power-supply 200 mA., Inrush current up to 500mA for 50mS.
Serial Interface EIA 232E (Serial RS-232), DCE configuration. 9600 Baud Rate, 8 Data Bits, 1 Stop Bit, No Parity, Full Duplex
Operating Modes Leadingtouch protocol
Customer specific protocol
Initial/ Stream/ Untouch Modes
Touch Resolution 4096x4096, size independent
Conversion Time Approximately 10 ms per coordinate set
Reliability MTBF greater than 1,543,000 hours per MIL-HDBK-217-F2
Temperature Operating: 0°C to 65°C; Storage: -25°C to 85°C
Humidity Operating: 10% to 90% RH, noncondensing; Storage: 10% to 90% RH, noncondensing
Operating Altitude 10,000 feet
Shock and Vibration With Leadingtouch standard container, meet International Safe Transit Association project 2A test procedure.
ESD: Per EN 6100-4-2 1995. Level 4, Contact Discharge - 8kV ; Air Discharge - 15kV positive and negative polarity
Flammability 94V0
LED Indicators The 6000S controller has one LED status indicators. When 6000S controller initially connects to host, the LED will be constantly on. When touchscreen connects to 6000S, the LED will snuff out after 3 seconds and be constantly on during touch.
Agency Approvals The touch system including 6000S controller, touchscreen and connection cable has certified with FCC Part 15. The touch system including 6000U controller, touchscreen and connection cable is compatible with EN55022 and EN55024 standards and is certified with CE.
