Atom D525 Industrial Panel Computer Motherboard / Medical Equipment / Car Motherboard / 3.5 Inch D525 Motherboard
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Brand Name:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Intel ATOM D525 D525 Multi-Lan Firewall Motherboard Soft RouteUS$ 1 - 2MOQ: 1 Piece -
ITX-N29_18 12*12 With Baytrail Motherboard, Dual Lan Quad Core Mainboard J1800,J1800 Nano Itx Motherboard OEMNegotiableMOQ: 2 Pieces
-
ITX-N29_19 Fanless J1900 NANO Motherboard,Fanless Motherboard DC12V,Fanless MotherboardNegotiableMOQ: 2 Pieces
-
ITX-N29_2L With 12*12 Bay Trail Dual Lan Quad Core Mainboard J1900 Nano Itx Motherboard OEMNegotiableMOQ: 2 Pieces
-
ITX -N29 Baytrail Motherboard With Lan Quad Core Mainboard J1900,J1900 Nano Itx Motherboard OEMNegotiableMOQ: 2 Pieces
Products Status
Stock
Application
Desktop
Brand Name
Other
Model Number
D525
Specifications

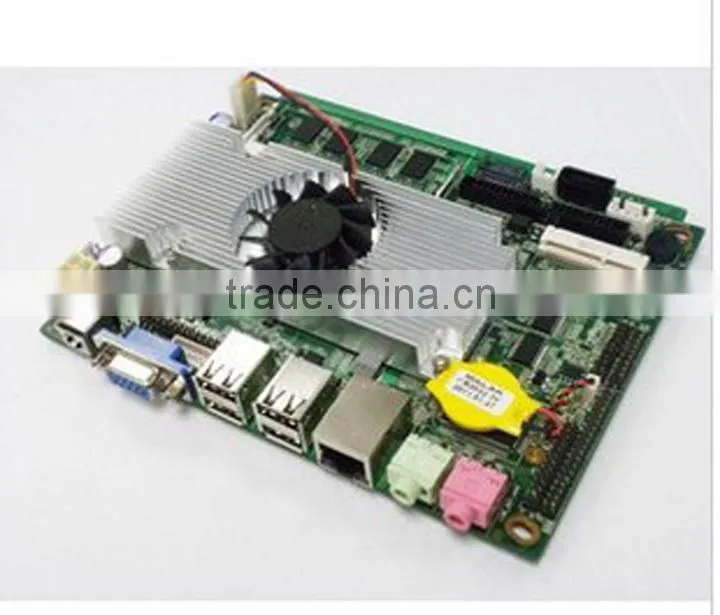

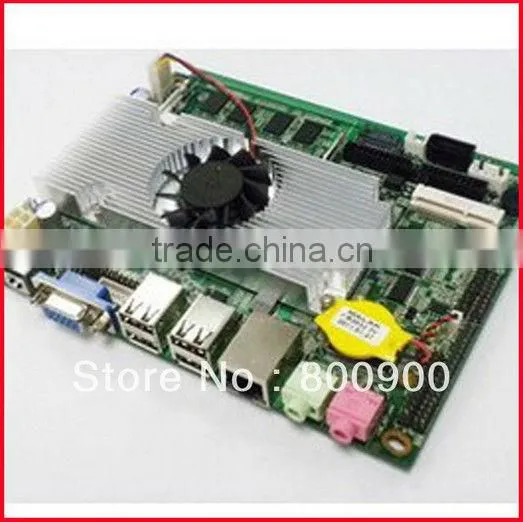

Atom D525 Industrial Panel computer motherboard / medical equipment / Car motherboard / 3.5 inch D525 motherboardAtom D525 Industrial Panel computer motherboard / medical equipment / Car motherboard / 3.5 inch D525 motherboard
No memory slot,onboard 2G RAM
CPU: Intel ® Atom D525 processor (45nm, 1.80GHz clock speed, 512k secondary cache)
Chipset: Intel ® Atom D525 processor + ICH8 fast chipset
Memory: Onboard 1333 DDR3 2G memory * plus SODIMM Sockets, maximum support 4 GB
Expansion Slots: 1 * Mini PCI-SATA electronic disk interface
1 * Mini PCI-E1 * SIM card support 3G Internet
2 * SATA 1X44P IDE
Audio features: Realtek ALC662 6-channel High Definition Audio
Network functions: * the Realtek RTL8111EL PCI-E Gigabit
USB: Built-in 4 * USB 2.0/1.1
LVDS: Onboard 18-bit LVDS interface
Backplane I / 0 interface: 1 * 12V-DC interface
1 * VGA interface
4 * USB 2.0/1.1 connector
1 * 1000M RJ45 connector
* Audio I / O interface (line input, microphone and line output)
Built-in I / 0 interface: 1 * 30-pin LVDS connector
6 * RS232 interface including a 488 a 485
1 * GPIO connector (8 groups GPIO)
* Internal VGA 2x5 2.0
1 * LPT printer port 2X13 2. 0
BIOS: Award 8MB DIP Flash ROM
Other features: hardware setup caller boot power failure boot (the performance beyond COMS software settings)
Agency and the Environment:
Size: Mini ITX Form Factor (115mmx155mm)
Power supply: DC Power jack +12 V DC-in, more power to 12V 53
Power consumption: +5 V0.5A +12 V 1.0A
Weight: 040 kg
4 Features
Of full POS KOP tantalum capacitor design,
Board stickers DDR3/2GB memory expandable to 6GB
The MINI PCI hard disk, support 3GSIM card to run faster.
Slim Interface (highest 1.8CM)
Support RTL and PXE diskless boot
To support to power outage boot and timing to boot (unattended)
Supports 18-bit LVDS screen
VGA LVDS support asynchronous with significant
6COM port design
