ITX-N29_2L with 12*12 Bay trail Dual Lan Quad Core Mainboard J1900 nano itx motherboard OEM

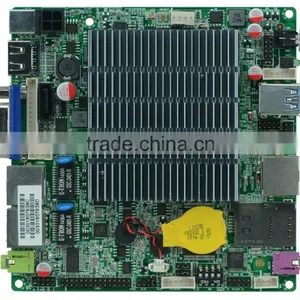

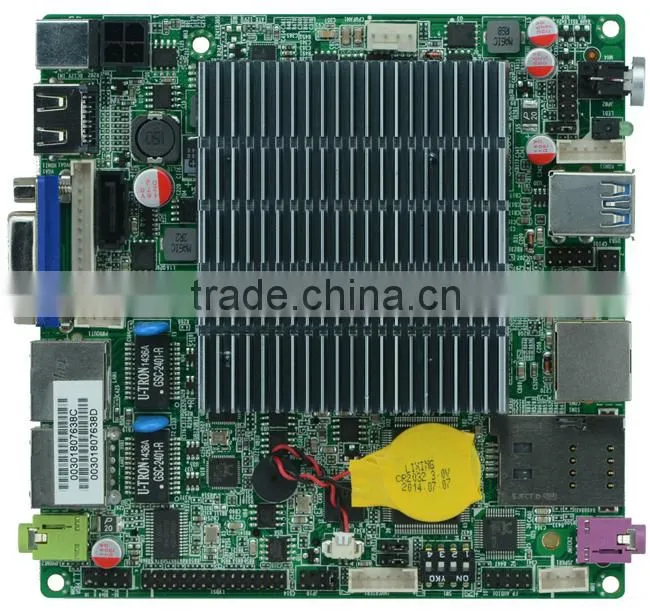

1. ITX-N29-2L front view
The latest Bay Trail platform integrated Intel® Celeron J1900 4-core 4 thread CPU frequency up to 2Ghz maximum pulse frequency of up to 2.4Ghz

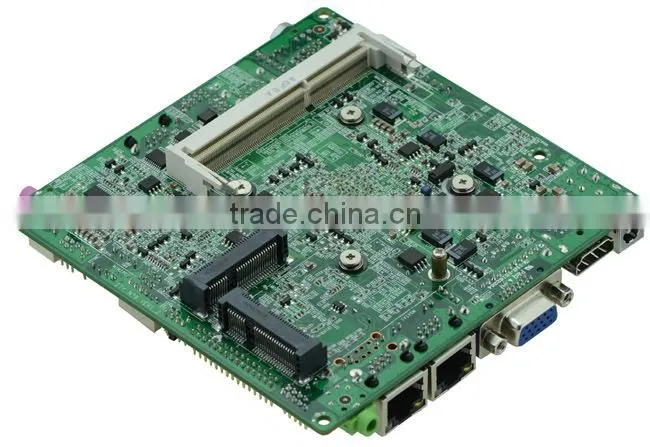

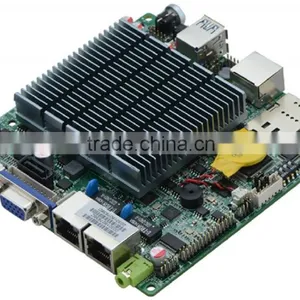

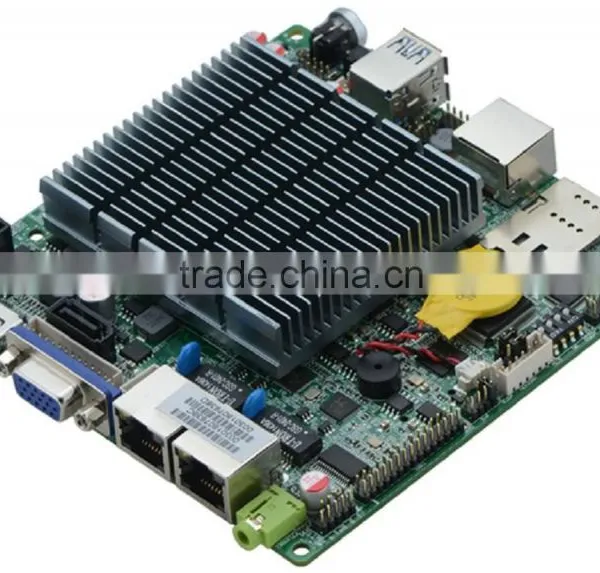

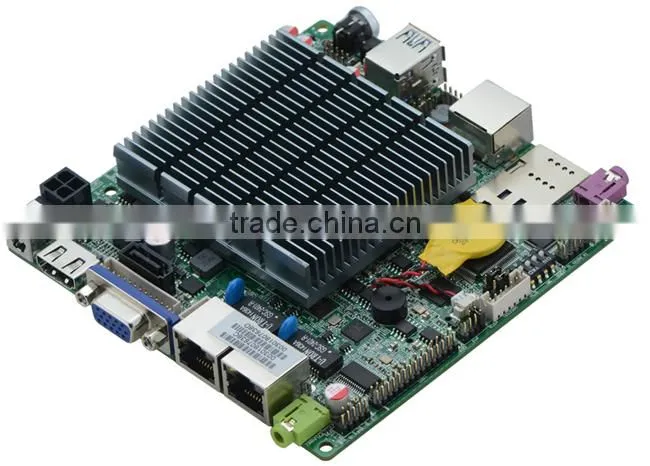

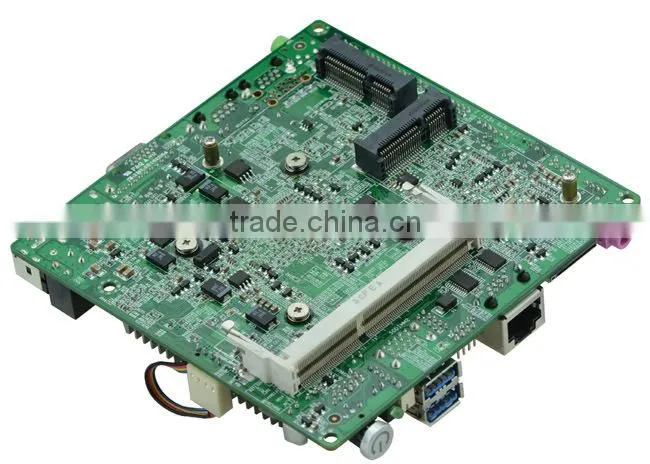

2. ITX-N29-2L motherboard side view
Cooling fanless cooling, thereby achieving zero noise cooling

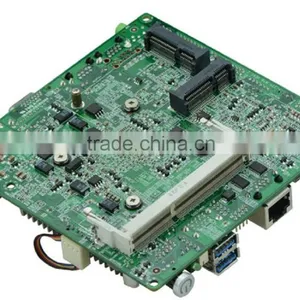

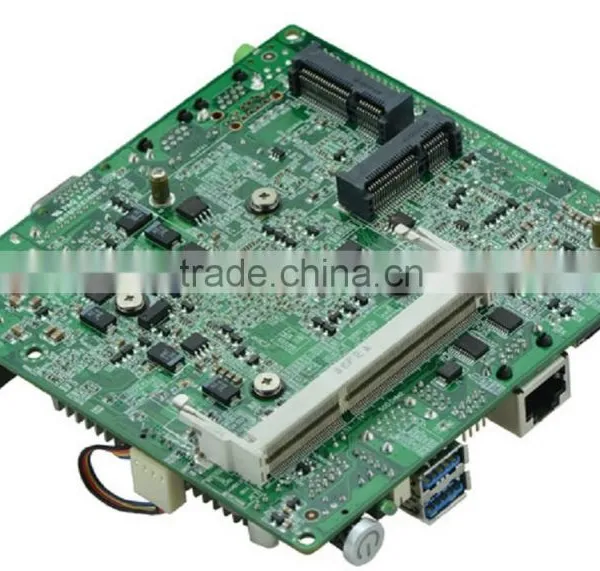

3. ITX-N29-2L motherboard side view
4.ITX-N29-2L motherboard side

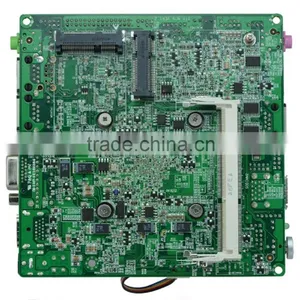

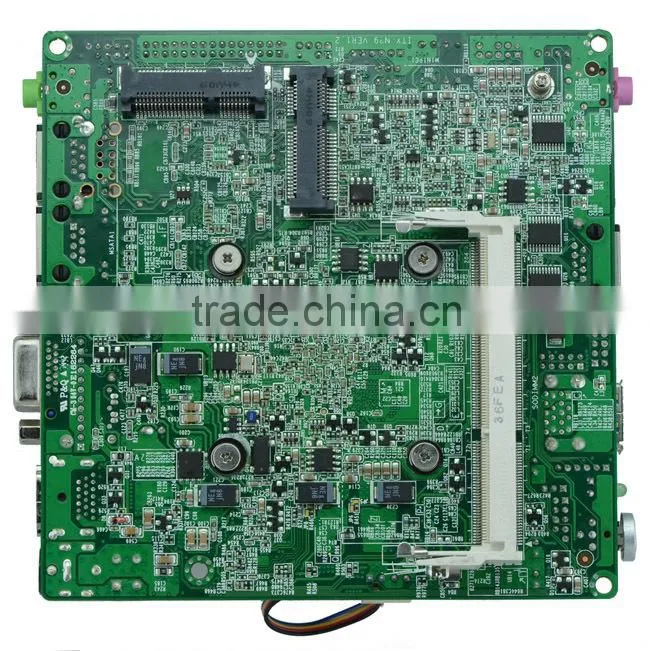

5. ITX-N29-2L rear view
6. ITX-N29-2L side view
Motherboard NO. |
ITX-N29_2L VER:1.3 |
CPU |
Integrated Intel® Celeron Processor J1900 (2M Cache, up to 2.42 GHz) |
CompatiblewithIntel®BayTrail-I/M/DfullseriesCPU | |
Chipset |
Intel®BaytrailSOC |
Memory |
1*SODDRIII 1066 ,upto8GB |
Display |
IntegratedIntel®HDGraphics |
SupportVGA,HDMI,LVDS(DualChannel24bit) | |
ExpansionSlot |
1*Mini-PCIEWIFI/3G |
1*MSATAⅢsupportSSD | |
|
Ethernet |
2*RTLGigabitlan,Supportwake-on-line,PXE |
Storage |
1*SATA |
Audio |
IntegratedRealtekHDALC662for6-Channeloutput,supportMIC&Line-out,Speaker |
|
FrontPanel
|
1*MIC(Red) |
1*SIMCard | |
1*COM ( CISCO rj45 ) | |
2*USB ( 1*USB2.0,1*USB3.0 ) | |
1*PWRLEDHDDLED | |
1*POWER | |
BackI/O |
1*12VDC_JACKInput |
1*HDMI | |
1*VGA | |
2*LAN rj45 | |
1*USB2.0(CanselectLAN2) | |
1*Line-out(Green) | |
|
InternalI/O
|
1*LVDS2*15pin , SupportDualChanel24bitLCD( dual 8) |
1*JVGA112pin | |
1*RS232 | |
2*USB2.0 | |
1*PS/26Pin | |
1*FP12*5pinFrontpanelbuttonsandLEDconnected | |
1*AUDIOFrontAudiointerface2*5pin | |
2*Speaker2pin | |
1*PWROUT(Harddrivepowerconnector) | |
1*ATX4pin | |
1*LVDSINVERTER | |
FAN |
1*CPU FAN4pin |
GPIO |
Support4wayInput&OutputGPIO |
BIOS |
AMI32MBFlashROM |
| Watch Dog | Supporthardwareresetfunction(L256,0~255seconds) |
Power |
DC_12V Singlepowersupply |
OperatingTemp. |
-10℃~60℃ |
StorageTemp. |
-40℃~80℃ |
Humidity |
5%-95% ( relativehumidity;non-condensing) |
Size |
120mmx120mm |
