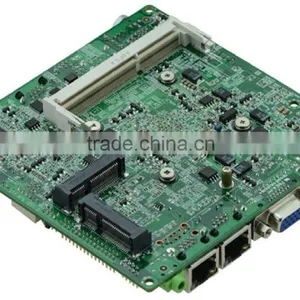

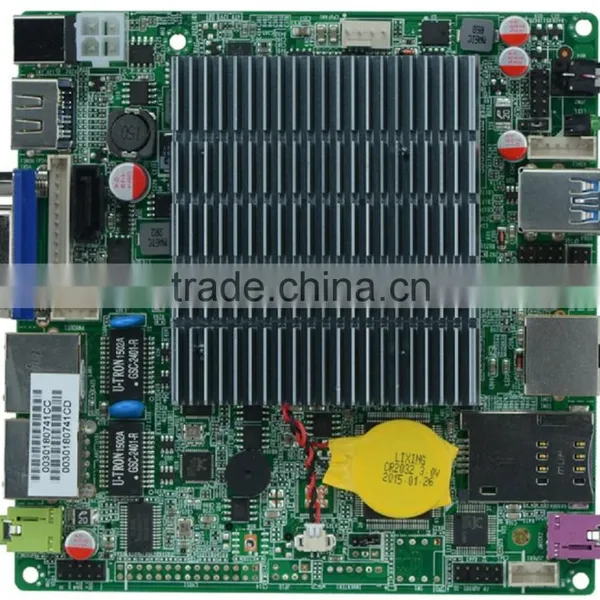

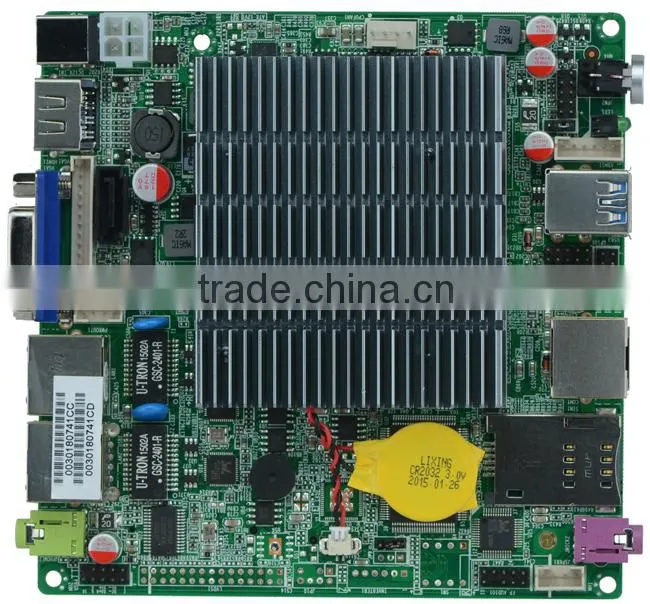

1. ITX-N29_18 front view
Integrated Intel® Celeron J1800 latest Bay Trail platform dual-core clocked up to 2.41Ghz 4CPU maximum pulse frequency of up to 2.58Ghz

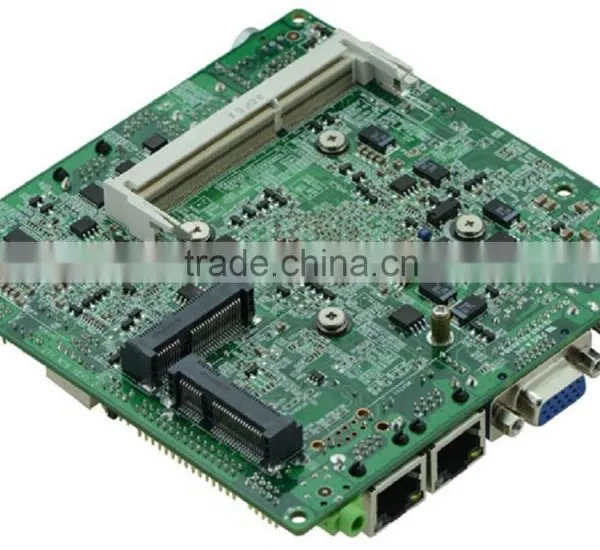

2. ITX-N29_18 motherboard side view
Cooling fanless cooling, thereby achieving zero noise cooling

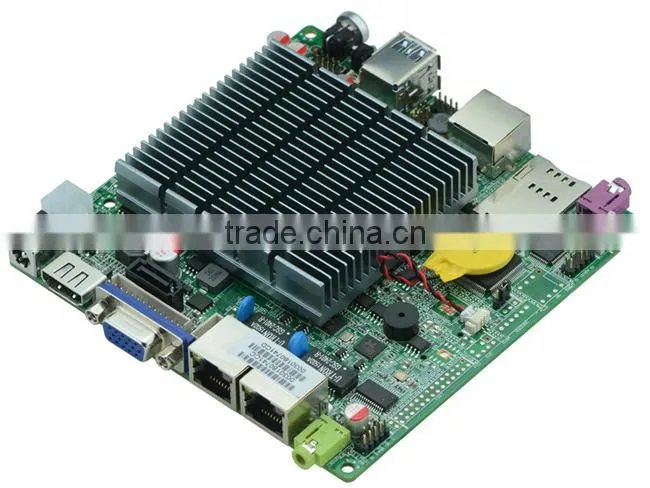

3. ITX-N29_18 motherboard side view

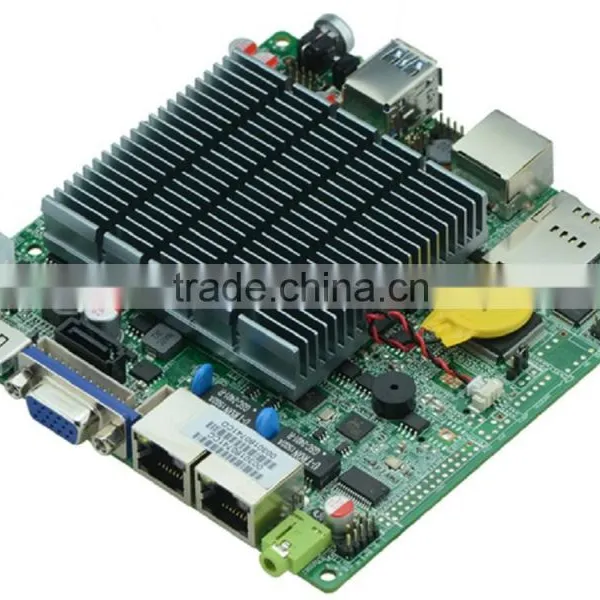

4. ITX-N29_18 motherboard side
5. ITX-N29_18 rear view
6. ITX-N29_18 side view
Item No. |
ITX-N29_18VER:1.3 |
CPU |
Integrated Intel® Celeron Processor J1800 2.41GHz |
|
Compatible with Intel® Bay Trail -I/M/D full series CPU |
Chipset |
Intel® Bay trail SOC Platform, CPU integrates chipset |
Memory |
1* SO DDRIII 1333/1066 ,up to 8GB |
Display |
Integrated Intel® HD Graphics |
|
Support VGA ,HDMI/LVDS synchronous/asynchronous display |
Expansion Slot |
1* Mini-PCIE ,support WIFI/3G |
|
1* mSATA, support wifi/SSD (default SSD) |
Lan |
2* RTL8111E Gigabit Lan ,Support wake-on-line ,PXE |
Storage |
1* SATA |
Audio |
Integrated Realtek HD ALC662 for 6-Channel output,support MIC & Line-out |
Front Panel |
1* MIC(Red) |
1* SIM Card | |
1* COM(CISCO , RJ45) | |
2*USB (1* USB 2.0 ;1*USB3.0) | |
1* HDDLED | |
1* POWER | |
Back I/O |
1* 12V DC_JACK Input |
1* HDMI | |
1* VGA | |
2* LAN | |
1* Line-out(Green) | |
Internal I/O |
1* JVGA1 12pin |
1* RS232 | |
2* USB 2.0 | |
1* PS/2 6Pin | |
1* FP1 2*5pin Front panel buttons and LED connected | |
1* AUDIO Front Audio interface 2*5pin | |
2* Speaker 2pin | |
1* PWROUT (Hard drive power connector) | |
1* ATX 4pin | |
FAN |
1* CPU FAN 4pin , with smart temperature control fan |
GPIO |
Support 4 way Input & Output GPIO |
BIOS |
AMI 32MB Flash ROM |
Watch Dog |
Support hardware reset function (L256, 0~255 seconds) |
Power |
DC_12V Single power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~80°C |
Humidity |
5%-95% ( relative humidity; non-condensing) |
Size |
120mm x 120mm |
