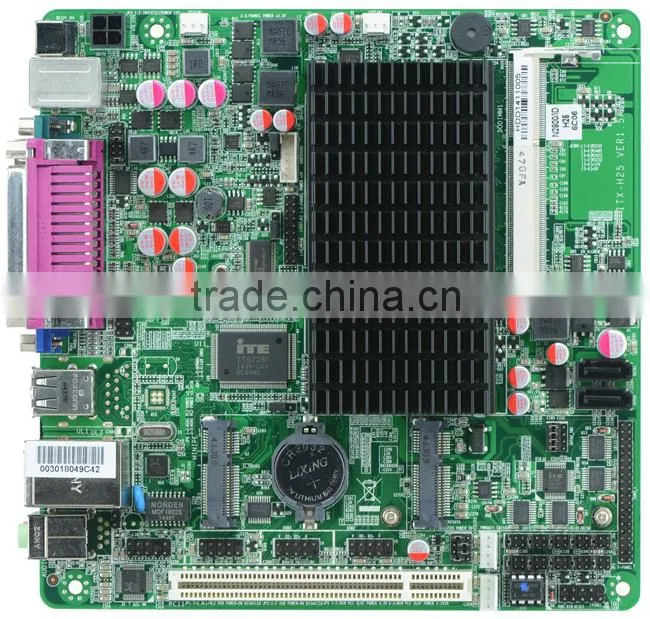

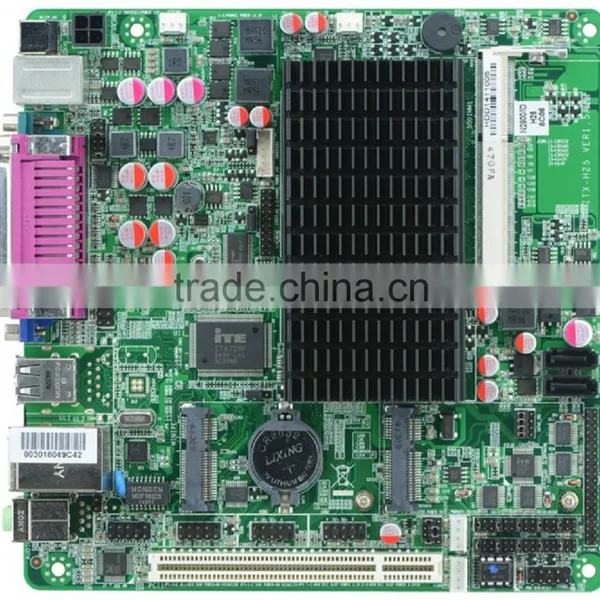

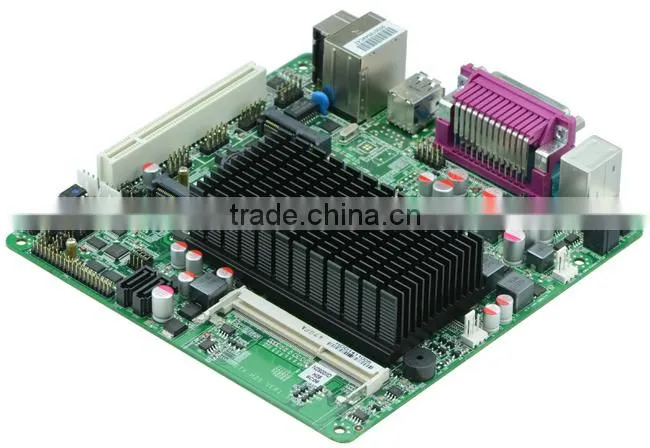

1. ITX-H25_28 VER: 1.5A front view
Onboard Intel® Atom N2800 1.86GHz processor with four threads Intel® NM10 Express chipset supports DDR3 generation notebook memory maximum support 4G

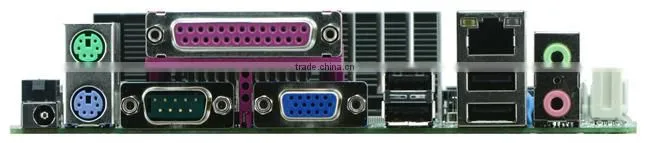

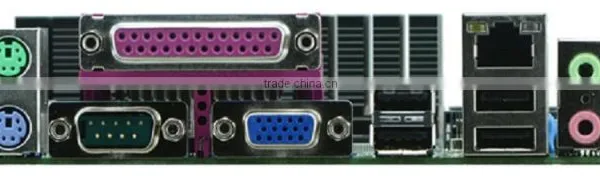

2. ITX-H25_28 VER: 1.5A IO front view
Integrated Intel® GMA3650 display controller supports VGA / single 24BIT LVDS synchronous / asynchronous display output

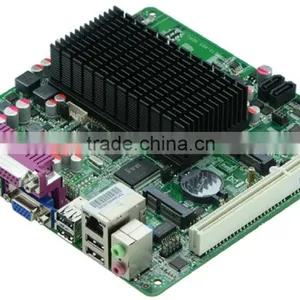

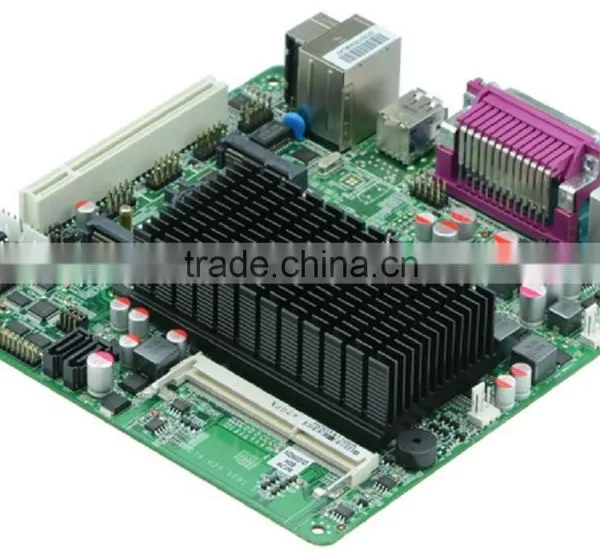

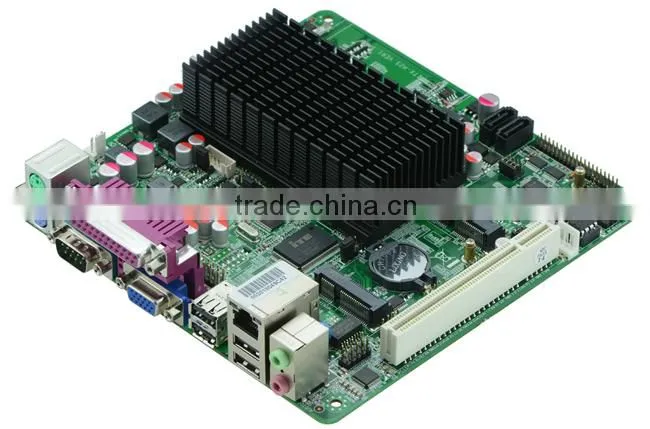

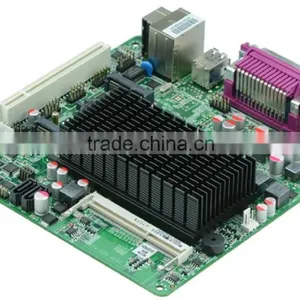

3. ITX-H25_28 VER: 1.5A side view
Integrated a RTL8105E Fast Ethernet supports Wake / PXE function support WIFI / SSD Solid State Drive / 8 USB / 6 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out board DC12V power supply
Product number
ITX-H25_28 VER: 1.5A
CPU
Onboard Intel® Atom N2800 1.86GHz processor dual nuclear power plant thread
Chipset
Using Intel® NM10 Express Chipset
Display Function
Integrated Intel® GMA3650 graphics (shared memory 128 / 224MB)
Support VGA and LVDS display with asynchronous (LVDS supports single 24bit)
RAM
1 * SODDRIII slot (supports 1066 / 800MHz Memory maximum support 4GB)
Expansion Interface
1 * PCI slots
1 * Mini-PCIE slot (supports WIFI)
Network features
1 * RTL8105E Fast Ethernet (supports Wake on LAN / PXE function)
Memory function
1 * MSATA slot
2 * SATA hard disk interface (SATA2 and SSD alternative)
Audio features
Integrated ALC662 6-channel HD Audio controller (supports MIC / Line-out)
Backplane I / O Interface
1 * RS232 serial port (1 / 9pin support 5V / 12V charging function)
1 * 12V DC_JACK input
1 * PS / 2 keyboard and mouse connectors
4 * USB2.0 Interface
1 * RJ-45 network interface
1 * Double standard audio interface (supports MIC / Line out)
1 * LPT Interface
1 * VGA Interface
Built-in I / O Interface
1 * LVDS Interface 2 * 10pin and 1 * LVDS INVERTER Interface
1 * JVGA1 the same signal DB15 2 * 5pin
5 * RS232 serial port (pin1 ~ pin9 support 5V ~ 12V charging function)
4 * USB2.0 Interface
1 * AUDIO 2 * 5pin interface (front audio interface)
1 * FP1 2 * 5pin (front panel function buttons and LEDs Interface)
1 * ATX_12V (2 * 2pin support + 12V input and output)
2 * PWROUT (hard disk power connector)
Fan Interface
1 * CPUFAN and 1 * SYSFAN 3pin
BIOS
AMI 16MB DPI Flash ROM
Watchdog
Support for hardware reset function (256, 0 to 255 seconds)
Power supply type
DC_12V Single power supply
Operating temperature
-10 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 70 ℃
Working humidity
5 to 95% relative humidity, non-condensing
Size
170mm x 170mm
