Help Center4 Gigabit Bay Trail SOC J1800 MINI ITX 4 LAN Motherboard for Firewall Router
Related Products
-
4 Ethernet Ports Motherboard J1900 Fanless J1900 2.5' HDD Inboard With BYPASS Supported/ High Performance Router MotherboardNegotiableMOQ: 1 Piece -
Server Motherboard Fanless Bay Trial Platform Quad Core J1900 and USB3.0 Fanless Mini ITX 4 LAN Ports MotherboardNegotiableMOQ: 1 Piece
-
Intel B75 LGA1155 Firewall Mainboard Mini Itx Motherboard With 6 LAN H67SLNegotiableMOQ: 1 Piece
-
Firewall Industrial Motherboard B75 LGA 1155 Socket Motherboard B75SL With With 6 Lan,2*bypass,4*SATA,1*MSATANegotiableMOQ: 1 Piece
-
Intel G41 Firewall Motherboard With 6 Gigabit Lan 1U Firewall MotherboardNegotiableMOQ: 1 Piece

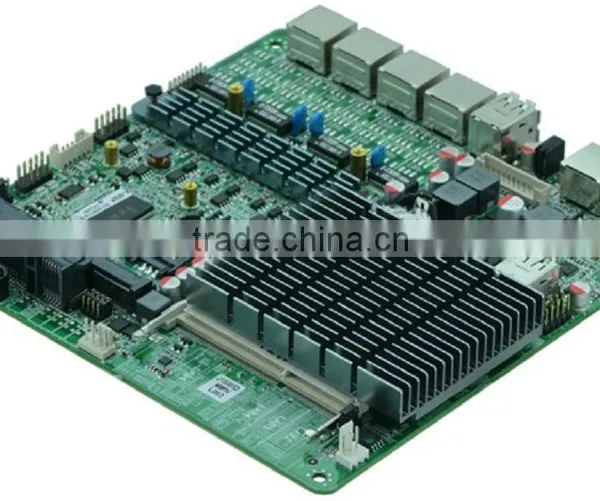

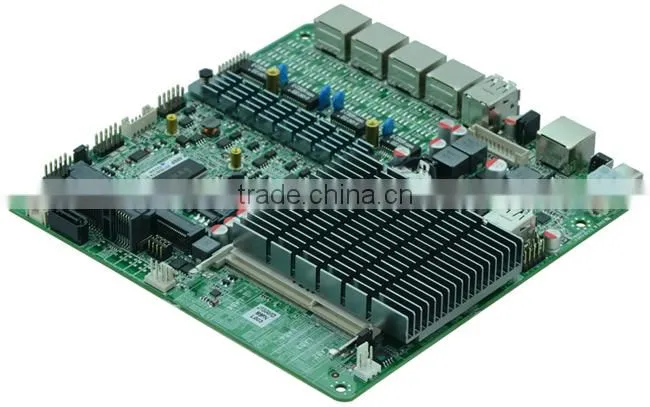

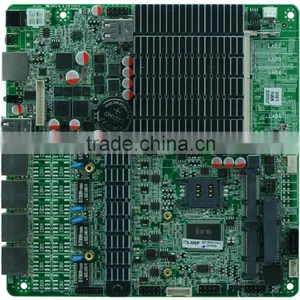

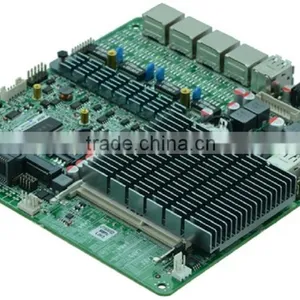

1. M8F VER: 1.1 front view
Integrated Intel® J1800 dual-core 2.41GHz processor is based on Intel® Bay trail SOC platform, CPU integrated support DDR3 notebook memory
2. M8F VER: 1.1 IO front view
Integrated Intel® HD Graphics graphics core supports VGA display output
3. M8F VER: 1.1 IO front view
Integrated four Intel® 82583V Gigabit LAN chip supports Wake on LAN / PXE function support WIFI / 3G / SSD / 4 USB / 2 x COM
1 * 2.5-inch notebook hard drives can be directly installed hard disk 1 * SATA hard disk interface (2.5-inch hard drive with a second election) board DC power supply
Model No. |
ITX-M8F VER:1.1 |
Processor |
Intel® Dual Core J1800 22nm processor 2.41GHz, compatible with Intel® Bay Trail -I/M/D series CPU |
Chipset |
Intel® Bay trail SOC , CPU integrates chipset |
Memory |
1* DDR3 SODIMM,supports 1333/1066 MHz , Max. 8GB |
Graphics |
Intel® HD Graphics |
Expansion Slot |
1* mSATA slot |
|
1* Mini-PCIE slot (supports WIFI / 3G module) |
Ethernet |
4*Intel 82583V Gigabit LAN controllers , supports Wake-On-LAN |
|
Supports 2 pair of BYPASS |
Storage |
1* 2.5’ HDD Space,supports HDD inboard 1* SATA (alternative to 2.5’ hard disk ) 1* mSATA slot (support SSD ) |
|
1* mSATA slot (supports SSD) |
Rear I /O |
1* 12V~19V DC JACK input |
|
1* Power switch |
|
1* serial port CISCO standard port |
|
1* LED(POWER LED/HDD LED) |
|
2* USB2.0 ports |
|
4* RJ-45 ports |
Internal I/O Connector |
1* VGA connector (1*12pin) |
1* LAN LED connector(2*8pin) | |
1* serial port PIN header for RS232 | |
4* USB 2.0 PIN header | |
1* FP1 pin header(2*5pin Front panel buttons and indicator connector) | |
1* ATX 4pin power connector (for 12V~19V input/output) | |
1* PS/2 KB & MS Connector | |
1* SATA Power Connector | |
1* SIM slot | |
Fan Connector |
1* 4PIN CPU Fan , 1* 3PIN system Fan connector |
GPIO |
4-bit input/output connector |
BIOS |
AMI 32Mb Flash ROM |
Watchdog Timer |
System reset ,Programmable L256 , 0 ~ 255 sec/min |
Power Type |
Single voltage 12V~19V DC Input |
Operating Temp. |
-10°C~ 60°C |
No-Operating Temp. |
-20°C~ 70°C |
Humidity |
5-95% (relative humidity; non-condensing) |
Dimension |
170mm x 170mm |
