Help CenterIntel G41 Firewall Motherboard With 6 Gigabit Lan 1U Firewall Motherboard
Related Products
-
Firewall Motherboard G41XE VER:1.1 With Bypass Function G41 6*rj45 Ethernet Soft Router MainboardNegotiableMOQ: 1 Piece -
N70SL 6 Intel 82583V Gigia NM70 Chipset Intel1037U 2 COM 6 LAN Firewall MotherboardNegotiableMOQ: 1 Piece
-
NM70SL_O 4RJ45 2*SFP 1037u Network Router Mainboard Network Security MotherboardNegotiableMOQ: 1 Piece
-
1037U Firewall Motherboard,1U Rackmount Router Server Firewall MotherboardNegotiableMOQ: 1 Piece
-
Industrial Firewall Motherbaord Mini-itx D2550 Motherboard for 6 Lan Ports D25SLNegotiableMOQ: 1 Piece

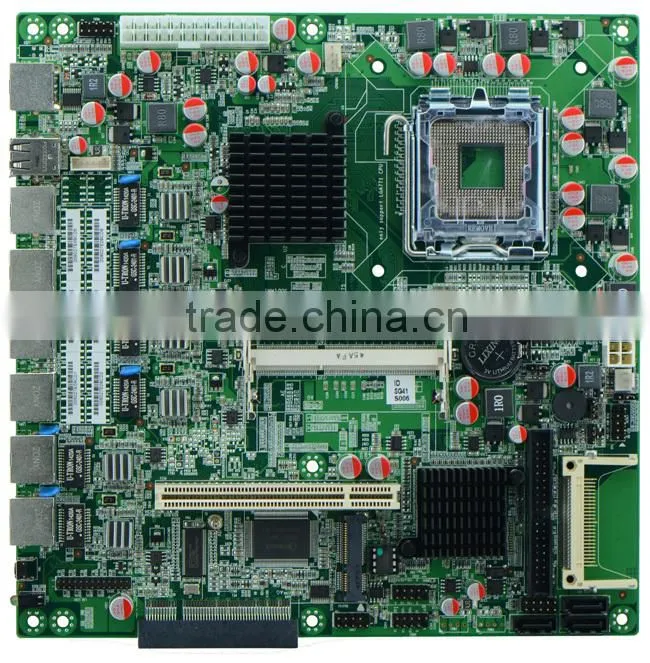

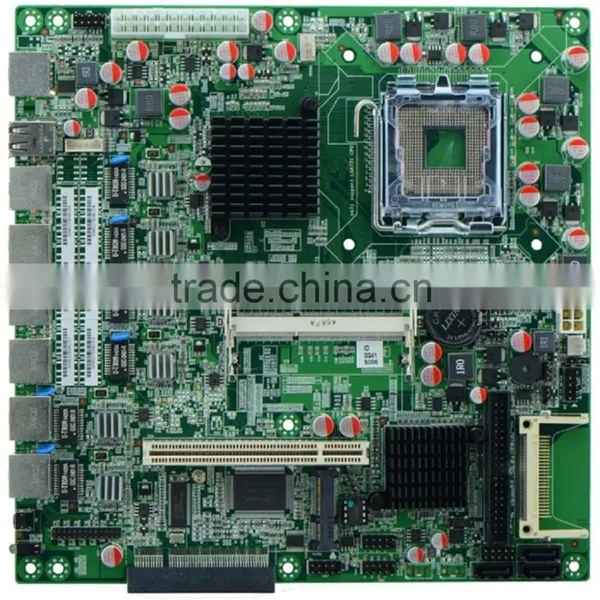

1. G41VE VER: 1.0 front view
Support Intel® LGA771 Xeon series dual-core / quad-core processor Intel® G41 + ICH7R Express chipset supports DDR3 notebook memory
2. G41VE VER: 1.0 IO panel diagram
Integrated Intel® GMA4500 graphics support VGA display output

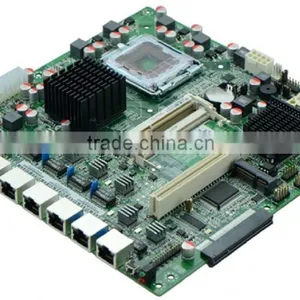

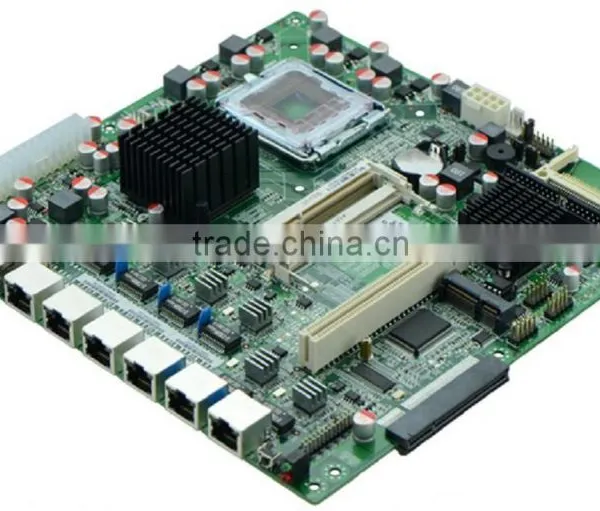

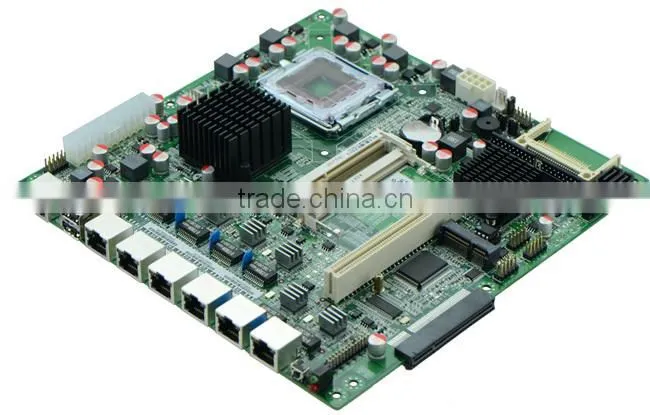

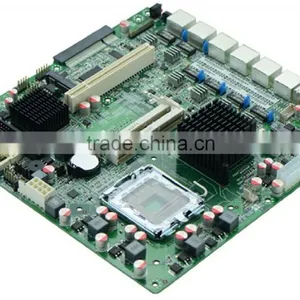

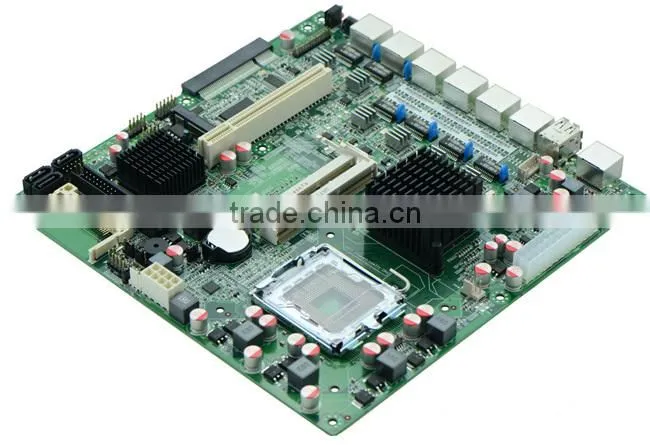

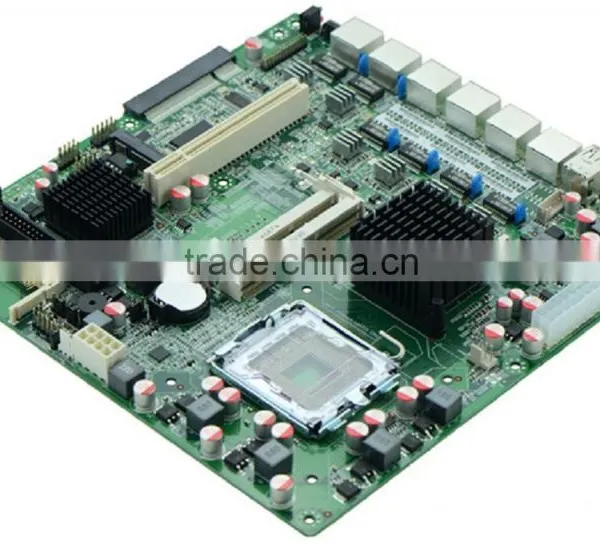

3. G41VE VER: 1.0 side view
Integrated Intel 6 * 82583V Gigabit LAN chip supports Wake on LAN, PXE function
Support 3 * SATAII hard disk interface 1 * SSD hard disk 1 * IDE hard disk 1 * CF card supports SATA RAID motherboard ATX power supply
Model NO. |
G41VE VER:1.0 |
CPU |
Intel® LGA771 Xeon Processor |
Chipset |
Intel® G41+ICH7R Chipset |
Memory |
2* SO DDRIII 1066/1333MHz, Max. up to 8GB |
Graphics |
Intel® GMA4500 Graphics,support VGA display output |
Expansion Slots |
1* PCI-E 8X, can be extended Optical interface module/Electrical interface module |
1* PCI | |
LAN |
6* Intel® 82583V 10/100/1000Mbps Ethernet |
Support Wake-on-LAN and PXE function | |
Storage |
3* SATAII 3Gbps, support RAID |
1* MSATA, support SSD | |
1* IDE | |
1* CF card | |
Rear I/O |
1* COM(CISCO standard interface) |
2* USB 2.0 | |
6* RJ-45 LAN | |
1* POWER | |
1* LED1(POWERLED/HDDLED) | |
Internal I/O |
1* JVGA 2*5pin |
1* LAN_LED 2*13pin | |
4* USB 2.0 | |
1* COM | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* PS/2 | |
Fan interface |
1* CPUFAN 4pin 1* SYSFAN 3pin |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
AMI 8MB DPI Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
ATX 24pin Power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
220mm x 220mm |
