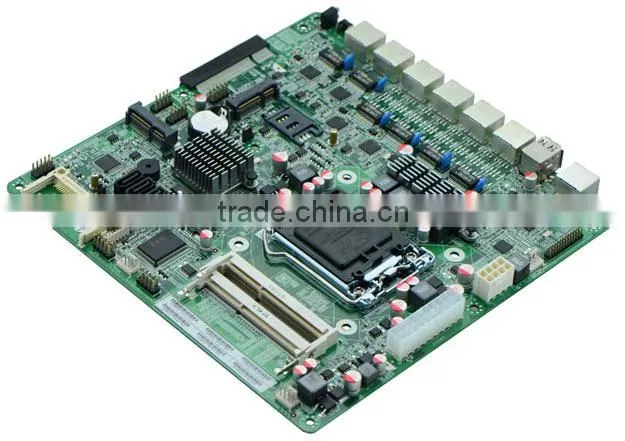

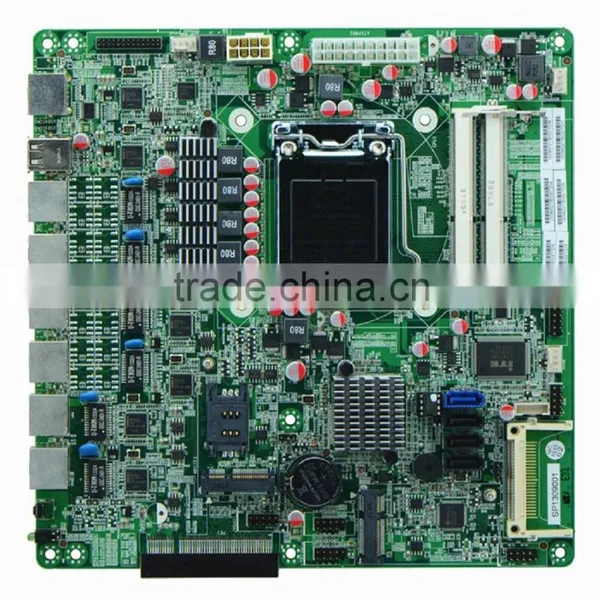

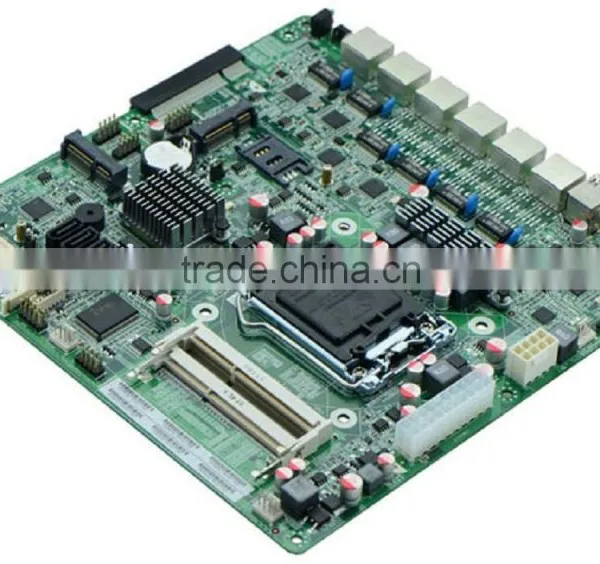

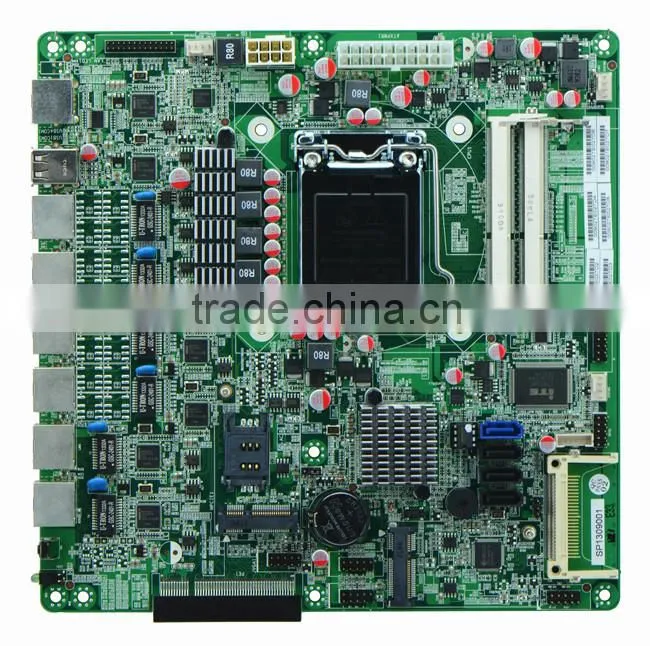

1. H67SL VER: 1.2 front view
Supports LGA1155 Intel® Core ™ i3 / i5 / i7 Pentium 32nm / 22nm processors Intel® B75 Express Chipset supports DDR3 notebook memory
2. H67SL VER: 1.2 IO front view
Integrated Intel® HD display controller supports VGA display output

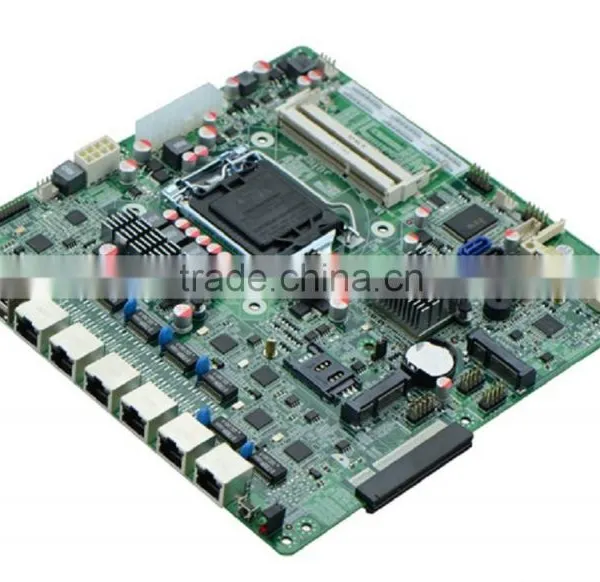

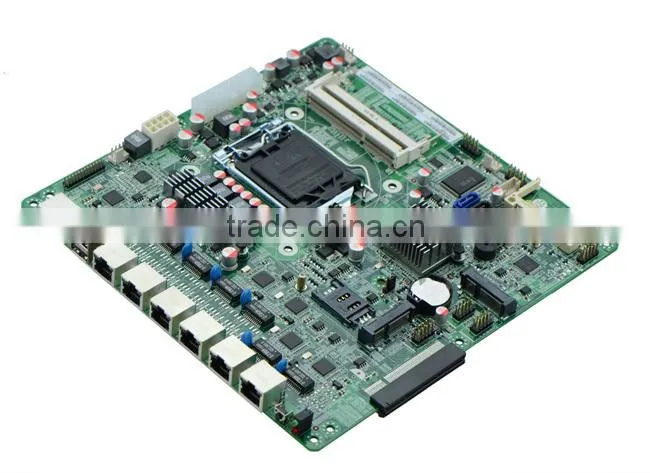

3. H67SL VER: 1.2 side view
Integrated 6 Intel® 82583V Gigabit LAN support Wake on LAN / PXE function support WIFI / 3G module / SSD solid state drive / 6 USB / 2 COM ports
Integrates a PCI-E 8X slot scalable optical port / power port module supports four SATA 1 CF card motherboard ATX power supply
Model NO. |
H67SL VER :1.2 |
CPU |
LGA1155 Intel® Core™ i3/i5/i7 32nm/22nm Processor |
Chipset |
Intel® B75 Chipset |
Memory |
2* Dual channel SO-DIMM DDRⅢ 1066/1333MHz, Max. up to 16GB |
Graphics |
Intel® HD Graphics,support VGA display output |
Expansion Slots |
1* PCI-E 8X, can be extended Optical interface module/Electrical interface module |
1* Mini-PCIE, support WIFI/3G | |
LAN |
6* Intel® 82583V 10/100/1000Mbps Ethernet |
Support Wake-on-LAN and PXE function | |
Storage |
1* SATAⅢ 6Gb/s |
3* SATAⅡ 3Gb/s, support RAID 0,1,5,10 | |
1* MSATA 6Gb/s | |
1* CF card | |
Rear I/O |
1* COM (CISCO standard interface) |
2* USB 2.0 | |
6* RJ-45 LAN | |
1* POWER | |
1* LED1(POWERLED/HDDLED) | |
|
Internal I/O |
1* JVGA 2*5pin |
1* LAN_LED 2*13pin | |
1* RS232 | |
4* USB 2.0 | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* PS/2 | |
1* SIM | |
Fun interface |
1* CPUFAN,2* SYSFAN 4pin |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
32MB SMT Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
ATX 20pin Power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
0%-95%(relative humidity; non-condensing) |
Dimension |
220mm x 220mm |
