Help CenterA4 Sheeting Machine
Related Products
-
CHM High Speed Servo Motor Drive PC Rotary Cutting MachineUS$ 40,000 - 70,000MOQ: 1 Set -
HQJ-A4 Automatic Trimming High-precision Paper Crosscutting MachineUS$ 30,000 - 110,000MOQ: 1 Set
-
ZHQ-B Automatic Trimming High-precision Paper Crosscutting MachineUS$ 16,000 - 19,000MOQ: 1 Set
-
HQJ-D Microcomputer High-precision Crosscutting Machine(with Vertical Cutting)US$ 15,000 - 20,000MOQ: 1 Set
-
Full Automatic A4 Paper Cutting MachineUS$ 30,000 - 110,000MOQ: 1 Set
Performance and Characteristics
This A4 sheeting machine(A4 paper sheet) is suitable for cutting big rolling packaging materials such as paper, paper-plastic, multicolor laminated material, etc.
1. adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2. It with slitting knives to slit then cut to different size of paper like A4, A3, A2 and A1 or any other sizes. Width and length can be both adjustable.
3. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photoelectric and gas together. It is easy operation, high precision, good stability and low noise.
4. This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically. Adopt blower to get rid of waste.
Main technical specification
| Model | HQJ-1100D(1 or 2 or 4 roll) | HQJ-1400D(1 or 2 or 4 roll) |
| Max. width of cutting | 1100mm | 1400mm |
| Max. diameter of material | Φ1400mm | Φ1400mm |
| Min. width of cutting | 50mm | 50mm |
| Length of cutting | 20-400mm | 20-400mm |
| Speed | 10-140times/min | 10-140times/min |
| Precision | ±0.2mm | ±0.2mm |
| Total power | 9.5kw | 11kw |
| Weight | 3500kg | 4000kg |
| Overall dimension(L*W*H) | 8600*1500*2000mm | 8600*1800*2000mm |
Detailed photos
The machine with 1 paper roll A4 paper cutting machine
A4 paper cutting machine with 2 paper roll
A4 paper cutting machine with 4 paper roll
A4 paper cutting machine unwinding stand
A4 paper cutting machine cutting parts
A4 paper cutting machine back side
Customer testing machine in our factory

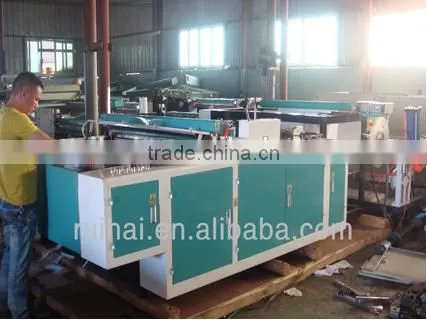

Engineer testing the machine in good working condition before shipment

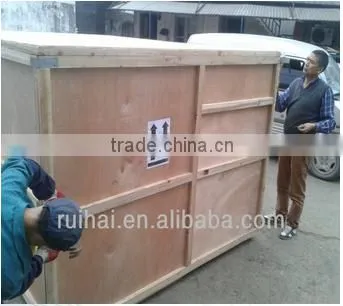

packing in strong wooden cases for export and loading in the container
