Help CenterHQJ-A4 Automatic Trimming High-precision Paper Crosscutting Machine
Related Products
-
ZHQ-B Automatic Trimming High-precision Paper Crosscutting MachineUS$ 16,000 - 19,000MOQ: 1 Set -
HQJ-D Microcomputer High-precision Crosscutting Machine(with Vertical Cutting)US$ 15,000 - 20,000MOQ: 1 Set
-
Full Automatic A4 Paper Cutting MachineUS$ 30,000 - 110,000MOQ: 1 Set
-
Full Automatic A4 Paper Cutting MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
A4 Paper Slitting and Sheeting Machine SupplierUS$ 20,000 - 50,000MOQ: 1 Set
Performance and Characteristics
This A4 automatic trimming high precision crosscutting machine is suitable for cutting big rolling packaging materials , such as office, paper-plastic, photo paper material, etc.
1. It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
2. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photoelectric, gas together, it has functions of easy operation, high precision, good stability and low noise.
3. This paper crosscutting machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm magnetic powder tension control, can be cut vertically, adopt blower to get rid of waste.
4. This machine can be with 1 roll, 2 roll and 4 roll loading system.
5. This machine can connected with the packaging machine directly.
Main Technical Parameters
| Model | HQJ-1100A4 | HQJ-1400A4 |
| Max. width of cutting | 1100mm | 1400mm |
| Max. diameter of material | Φ1400mm | Φ1400mm |
| Min. width of cutting | 50mm | 50mm |
| Length of cutting | 20-400mm | 20-400mm |
| Speed | 10-140times/min | 10-140times/min |
| Precision | ±0.2mm | ±0.2mm |
| Total Power | 9.5KW | 11KW |
| Weight | 3500kg | 4000kg |
| Overall dimension(L*W*H) | 12000*1900*2000mm | 12000*2200*2000mm |
Detailed photos

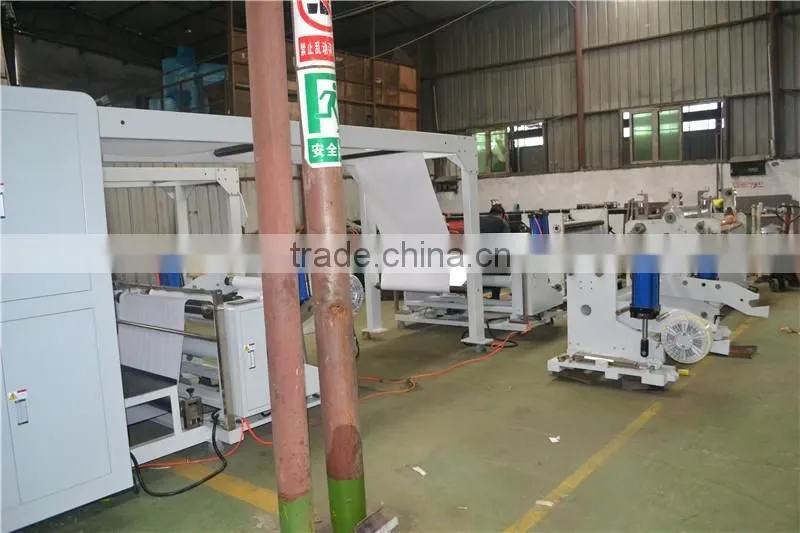

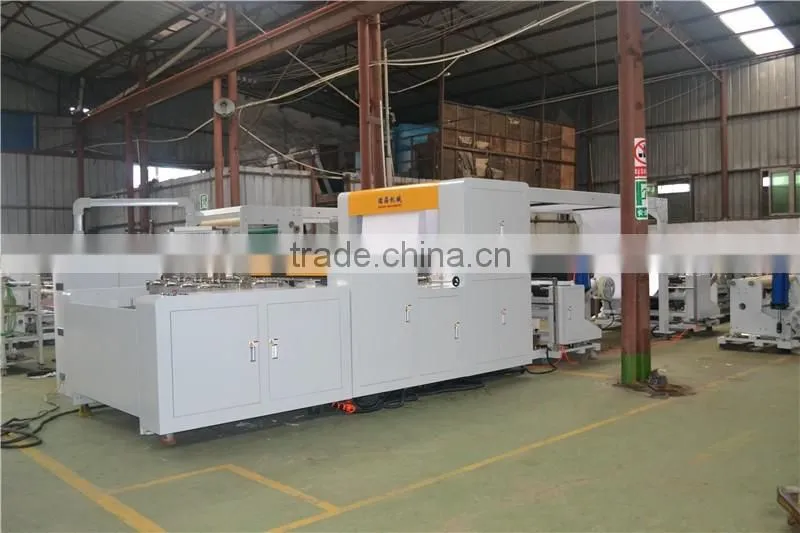

whole view

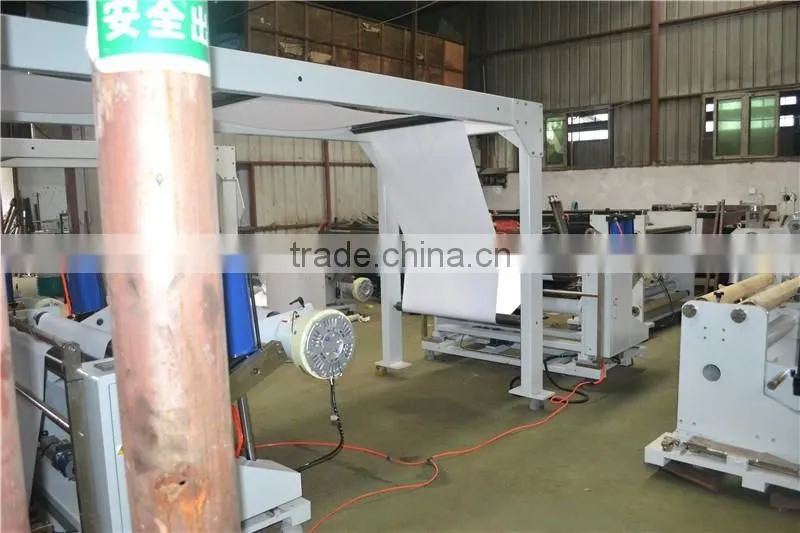

2 rolls

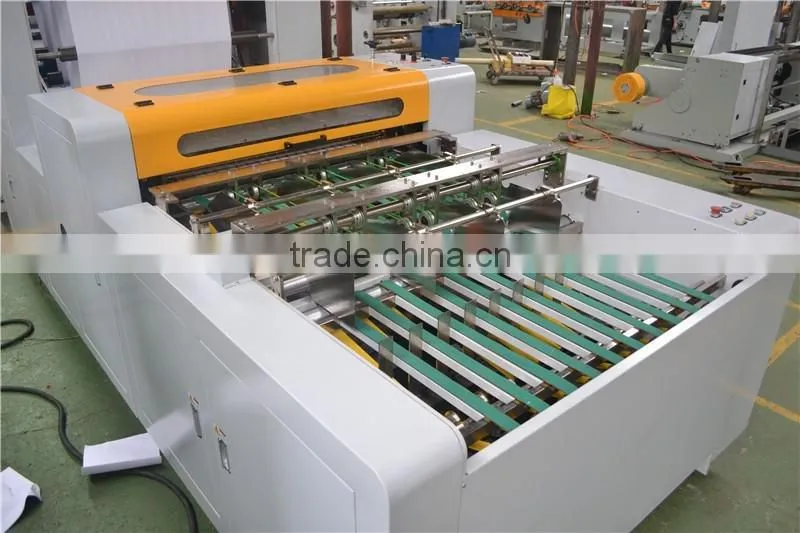

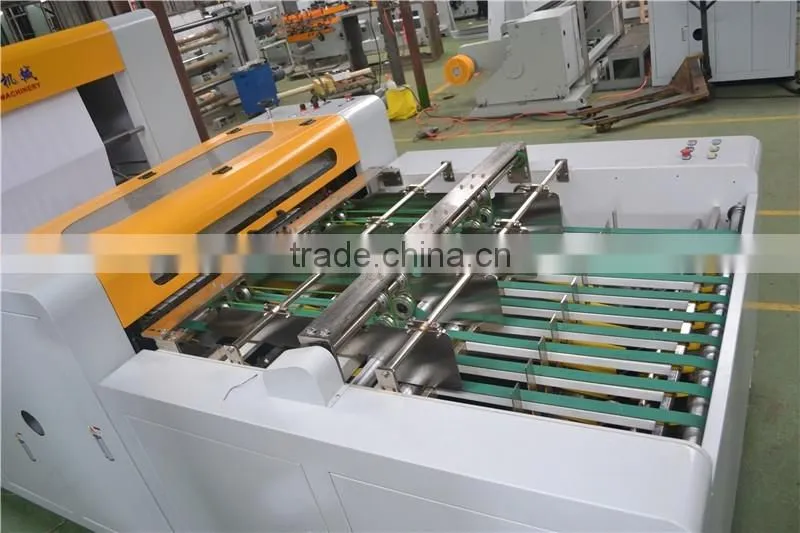

automatic stack and never interlace
FEEDBACK(if u need more information or videos, pls do not hesitate to contact with me)
