Factory price Plastic bag Cutting width 700-1000mm sock bag making machine

Specifications

1.High End Configuration
2.Competitive Price.
3.Professional Research & Development team.
4.High quality after-sales service.

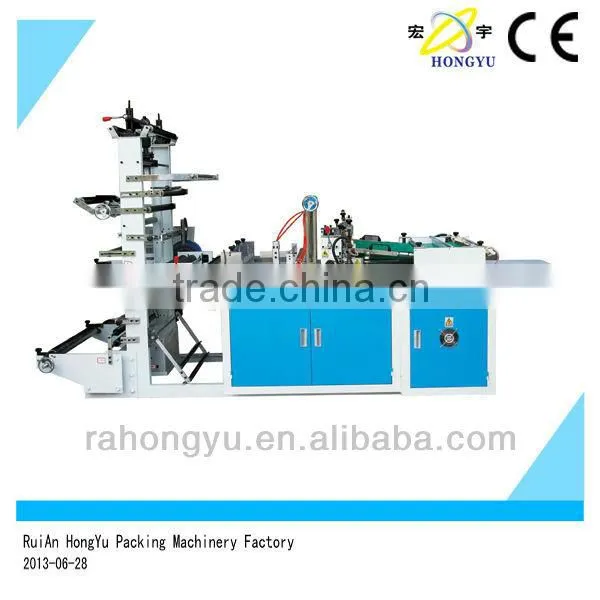

RQL- A600/700/800 Hot cutting &Edge sealing bag making machine





Usage:

             This machine is suitable for making clothing bag, Sock bag ,Towel bag , Jewelry bag , Underwear bag, Stationery bag , Electrical components bag, Bamboo & wood products bag, etc.



Suitable Material:

        Suitable for BOPP. PP. PE. Heat shrinkable film. etc material can heating-sealing.



Features:

             This machine is match for general BOPP, OPP bag production, and opener for PP, PE roll materials, bag making, production mode has variety of opening: flat mouth, envelope, flanging mouth, pillowcase mouth and so on, with automatic folding membrane, automatic stick gum, folder lining pearlized film, automatic pressure fluid, automatic punching . it's ideal equipment to making socks bags, towel bag, bread bags, jewelry bags.



TECHNICALPARAMETERS:



1.With elevated breach, imported conveyor belt .

2.The feeding adopts photoelectric control, colored light magic eye from Germany

3.Adopting PLC programming device, 5.7 inch computer control touch screen.

4.Servo motor to pull material in, adopt YASKAWA servo motor.

5..Main motor,front feeding motor,back receiving motor adopt Frequency control.

6.NSK Bearing , Siemens LDPE HDPE , Schneider Electric Switch.

7.Delivery by arrangement bearing , make the minimal hot cutting length to 40mm ,RQL-400A’s minimal hot cutting length attain to 16-25mm.

8.Ultrasonic wave Knurling device





MODEL	RQL-A600	RQL-A700	RQL-A800
HOT CUTTING LENGTH	40-999mm	40-999mm	40-999mm
HOT CUTTING WIDTH	580mm	680mm	780mm
BAG MAKING SPEED	40-240pc/min	40-240pc/min	40-240pc/min
POWER	3KW	5KW	7KW
WEIGHT	700KG	800KG	900KG
SIZE	3700X1200X1700mm	3700X1400X1700mm	3700X1600X1700mm







Sock Bag Made By This Machine
