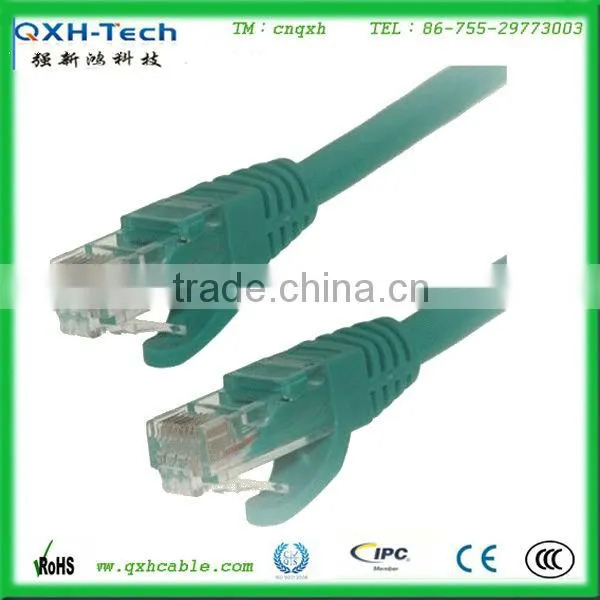

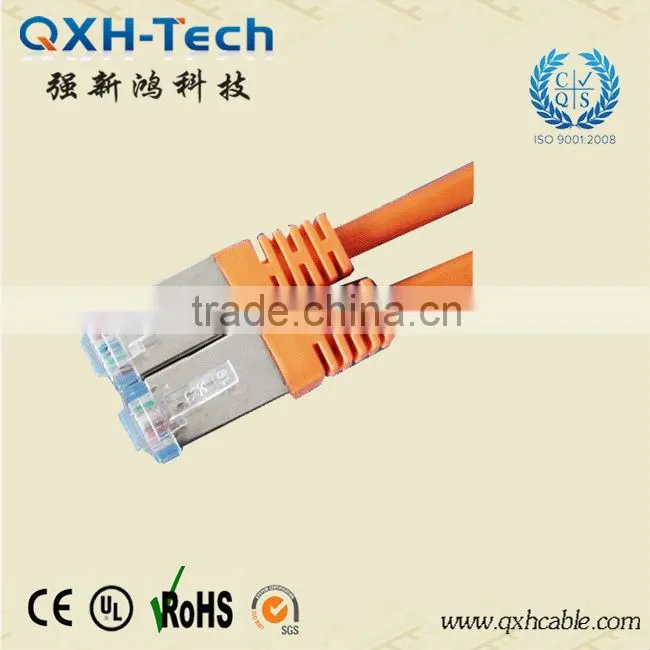

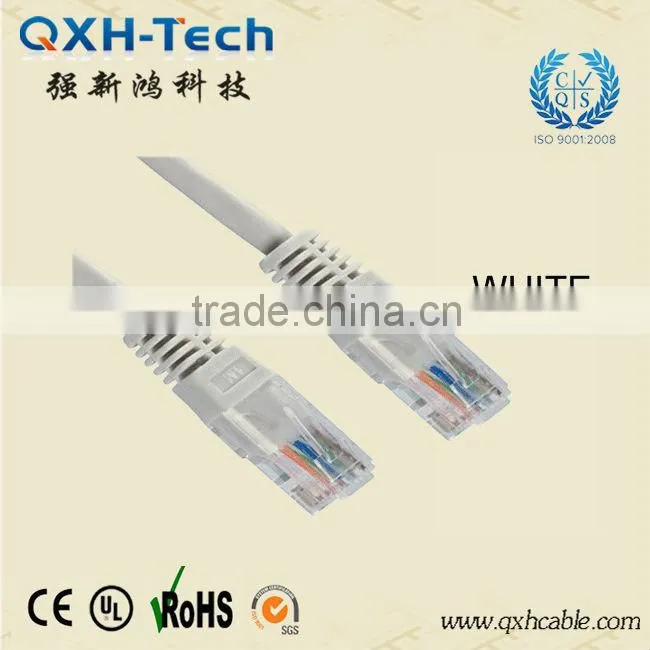

High Quality 4P CAT5E UTP and FTP Patch Cable Made in China Facyory

Name: High Quality 4P CAT5E UTP and FTP Patch Cable Made in China Facyory
Brand: QXH-TECH
SKU: 117647579

US$ 0.5 - 0.7 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

QXH-TECH

Model Number:

Q-C0001

Shenzhen Qiangxinhong Technical Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/Hk

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name QXH-TECH

Model Number Q-C0001

Type Cat 5e

Number of Conductors 4

Specifications

CAT5E UTP and FTP Patch cable
1.UL/CE/ISO/IPC certificate
2.8years professional factory manufacture
3.3years warranty

high quality CAT5E UTP and FTP Patch cable made in China facyory

Specification:

1.CAT5E UTP and FTP Patch cable

2.with RJ45 8P8C connector

3.Rated Temperature:75Degree

4. Solid/Strands Cores are available

5. Standard:UL444,TIA/EIA568B.2,YD/T1019-2001

6. 24AWG*4P, 23AWG*4P, OD:5.5mm-6.0mm

7. Insulation :HDPE,

8. Jacket: PVC

9. Rip cord: Per your request

Products Description:

Inner Conductor	Number of Pairs	4
	Total Number of Conductors	8
	Conductor Material	BC-Solid Bare Copper
	Wire Gage	24AWG
	Conductor Diam(ø)mm	Φ0.50±0.03mm
	Elongation	≥15%
Insulation	Insulation Material	HDPE - Polyethylene
	Nom. Thickness	0.215mm
	Insulation Dia.	Φ0.95±0.05mm
	Elongation	≥300%
	Color Cord	Pair 1:White-Blue & Blue; Pair 2:White-Orange & Orange Pair 3:White-Green & Green; Pair 4:White-Brown & Brown
Paired	Length of Lay	<30mm
Filled	Jelly filled	No
Cabling	Order of the Pair	See the Cross Section
Out Sheath	Sheath Material	PVC (Flame Retardant / RoHS ...)
	Color	Blue
	Rip Cord	200D×3
	Nom. Thickness	0.60±0.05mm
	Min. Thickness	0.55mm
	Max. overall Dia.	Φ5.30±0.3mm
