Gravity Spiral Chute for Ore Seperator with high quality and reasonable price

Specifications

1.Less space,easily operated
2.Low noise
3.Light weight
4.No motor small invest
5.ISO9001:2008

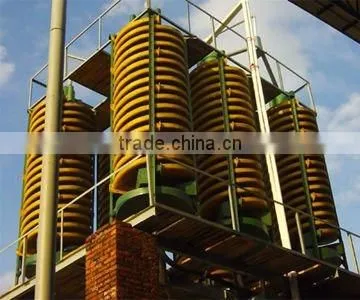

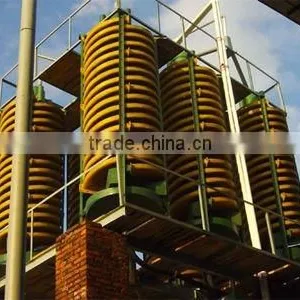

Spiral Chute



Spiral Chuteis ideal concentrating equipment, especially for the sand ore of seashore, river sand, etc. This product is made of the chlorine plastic, so it is moisture proof, antirust, and corrosion resistance, resilient for feeding amount and density, granularity mineral taste, no noise.



Characteristics:



Easily controlled, large changing scope of feeding density, high concentration, high recovery ratio, less space , water saving, simple structure, noise, large processing capacity, fix easily, convenient operation and small investment, etc.



Application:



The product is suitable for separating the fine materials with granularity of 0.3-0.02mm  iron ore , limonite, chromites, trotline, zirconium, retiles, monazite, centimes, wolfram ore, stannary, tantalum minerals, niobium minerals and other non ferrous metal, rare metal and non metal,etc.



Working principle:



Make the spiral chute stand, adjust the vertical line, fix the proper place with the iron structure or wood. make the ore sand deliver to two feed openings of the screw chute top, add enough water, adjust the mash density, the mash flows freely from the high, produce the centrifugal force at the speed of the rotary, divide the sand and ore, the concentrate comes into bucket with the tract, gangue comes into the bucket with the tract to the sand pool, and pump off, complete the whole process.



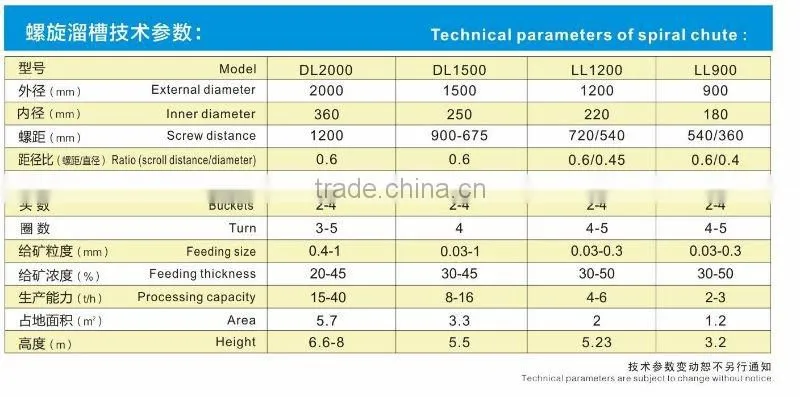

Technical Parameters:



Model		5LL-1200	5LL-900	5LL-600	5LL-400
External diameter (mm)		1200	900	600	400
Screw distance (mm)		900/720/540	675/540/405	450/360/270	240/180
Ratio(scroll distance/diameter)		0.75/0.6/0.45	0.75/0.6/0.45	0.75/0.6/0.45	0.6/0.45
Transverse obliquity		9°	9°	9°	9°
Max. scroll buckets for each machine		4	4	3	2
Feeding granularity (mm)		0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding thickness (%)		25-55	25-55	25-55	25-55
Capacity (t/h)		4-6	2-3	0.8-1.2	0.15-0.2
Dimensions	Length(mm)	1360	1060	700	460
	Width(mm)	1360	1060	700	460
	Height(mm)	5230	4000	2600	1500
Weight(kg)		600	400	150
