Specifications
1.Less space,easily operated2.Low noise
3.Light weight
4.No motor small invest
5.ISO9001:2008

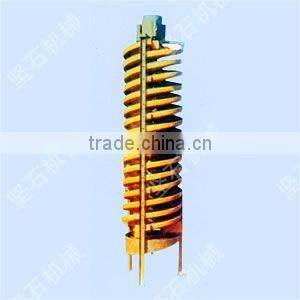

Spiral Chute
Spiral Chuteis ideal concentrating equipment, especially for the sand ore of seashore, river sand, etc. This product is made of the chlorine plastic, so it is moisture proof, antirust, and corrosion resistance, resilient for feeding amount and density, granularity mineral taste, no noise.
Characteristics:
Easily controlled, large changing scope of feeding density, high concentration, high recovery ratio, less space , water saving, simple structure, noise, large processing capacity, fix easily, convenient operation and small investment, etc.
Application:
The product is suitable for separating the fine materials with granularity of 0.3-0.02mm iron ore , limonite, chromites, trotline, zirconium, retiles, monazite, centimes, wolfram ore, stannary, tantalum minerals, niobium minerals and other non ferrous metal, rare metal and non metal,etc.
Working principle:
Make the spiral chute stand, adjust the vertical line, fix the proper place with the iron structure or wood. make the ore sand deliver to two feed openings of the screw chute top, add enough water, adjust the mash density, the mash flows freely from the high, produce the centrifugal force at the speed of the rotary, divide the sand and ore, the concentrate comes into bucket with the tract, gangue comes into the bucket with the tract to the sand pool, and pump off, complete the whole process.
Technical Parameters:
Model |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 |
|
External diameter (mm) |
1200 |
900 |
600 |
400 |
|
Screw distance (mm) |
900/720/540 |
675/540/405 |
450/360/270 |
240/180 |
|
Ratio(scroll distance/diameter) |
0.75/0.6/0.45 |
0.75/0.6/0.45 |
0.75/0.6/0.45 |
0.6/0.45 |
|
Transverse obliquity |
9° |
9° |
9° |
9° |
|
Max. scroll buckets for each machine |
4 |
4 |
3 |
2 |
|
Feeding granularity (mm) |
0.3-0.03 |
0.3-0.03 |
0.2-0.02 |
0.2-0.02 |
|
Feeding thickness (%) |
25-55 |
25-55 |
25-55 |
25-55 |
|
Capacity (t/h) |
4-6 |
2-3 |
0.8-1.2 |
0.15-0.2 |
|
Dimensions |
Length(mm) |
1360 |
1060 |
700 |
460 |
Width(mm) |
1360 |
1060 |
700 |
460 |
|
Height(mm) |
5230 |
4000 |
2600 |
1500 |
|
Weight(kg) |
600 |
400 |
150 |
||
