High Economic Efficiency Mining Equipment, Spiral Classifier for Sale
US$ 3,900 - 190,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sprial Separator
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Concentrating Spiral Classifier Hot in Africa, East AsiaUS$ 3,900 - 19,000MOQ: 1 Set -
Concentrating Spiral Classifier for Ores WashingUS$ 3,900 - 19,000MOQ: 1 Set
-
2FG-12 Concentrating Spiral Classifier for Mineral ProcessingUS$ 3,900 - 19,000MOQ: 1 Set
-
Concentrating Spiral Classifier / Mineral Processing ClassifierUS$ 3,900 - 19,000MOQ: 1 Set
-
High Efficiency Sprial ClassifierUS$ 3,900 - 10,000MOQ: 1 Set
Condition
New
Type
Sprial Separator
Place of Origin
Henan, China
Brand Name
Zhongde
Model Number
FC,FG,2FC,2FG
Warranty
one year, 12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Hot sale in Africa, East Asia,etc2.Spral diameter:300-3000mm
3.Spiral speed:3.2-30r/min
4.Two type:high weir&immersed weir
Product Description
Spiral classifier,working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. Its external appearance is a rectangular oblique chute, whose bottom is semi-circular.There is 1 or 2 vertical axles installed in the chute, spiral blades are installed along the axle one after another.
Types:
According to the height of the surface of the liquid classification, the machines can be divided into high weir type and immersed weir type.
Technical parameters:
| Model | Spiral diameter(mm) | Trough length(mm) | Spiral rotation speed(r/min) | Capacity:sand-return(t/d) | Capacity:overflow(t/d) | Motor power for driving(kw≤) | Motor power for lifting(kw≤) | Dimensions(Length×Width×Height)(mm≤) |
| FG-5 | 500 | 4500 | 8-12.5 | 135-210 | 32 | 1.1 | - | 5430×680×1480 |
| FG-7 | 750 | 5500 | 6-10 | 340-570 | 65 | 3 | - | 6720×980×1820 |
| FG-10 | 1000 | 6500 | 5-8 | 675-1080 | 110 | 5.5 | - | 7590×1240×2380 |
| FC-10 | 1000 | 8400 | 5-8 | 675-1080 | 85 | 7.5 | - | 9600×1240×2680 |
| FG-12 | 1200 | 6500 | 4-6 | 1170-1870 | 155 | 7.5 | 2.2 | 8180×1570×3110 |
| FC-12 | 1200 | 8400 | 4-6 | 1170-1870 | 120 | 7.5 | 2.2 | 10370×1540×3920 |
| 2FG-12 | 1200 | 6500 | 4-6 | 2340-3740 | 310 | 15 | 4.4 | 8230×2790×3110 |
| 2FC-12 | 1200 | 8400 | 4-6 | 2340-3740 | 240 | 15 | 4.4 | 10370×2790×3920 |
| FG-15 | 1500 | 8300 | 4-6 | 1830-2740 | 235 | 7.5 | 2.2 | 10410×1880×4080 |
| FC-15 | 1500 | 10500 | 4-6 | 1830-2470 | 185 | 7.5 | 2.2 | 12670×1820×4890 |
| 2FG-15 | 1500 | 8300 | 4-6 | 2280-5480 | 470 | 15 | 4.4 | 10410×3390×4080 |
| 2FC-15 | 1500 | 10500 | 4-6 | 2280-5480 | 370 | 15 | 4.4 | 12670×3370×4890 |
| FG-20 | 2000 | 8400 | 3.6-5.5 | 3290-5940 | 400 | 11-15 | 3 | 10790×2530×4490 |
| FC-20 | 2000 | 12900 | 3.6-5.5 | 3210-5940 | 320 | 11-15 | 3 | 15610×2530×5340 |
| 2FG-20 | 2000 | 8400 | 3.6-5.5 | 7780-11880 | 800 | 22-30 | 6 | 11000×4600×4490 |
| 2FC-20 | 2000 | 12900 | 3.6-5.5 | 7780-11880 | 640 | 22-30 | 6 | 15760×4600×5640 |
| FG-24 | 2400 | 9130 | 3.67 | 6800 | 580 | 15 | 3 | 11650×2910×4970 |
| FC-24 | 2400 | 14130 | 3.67 | 6800 | 490 | 18.5 | 4 | 16580×2930×7190 |
| 2FG-24 | 2400 | 9130 | 3.67 | 13600 | 1160 | 30 | 6 | 12170×5430×5690 |
| 2FC-24 | 2400 | 14130 | 3.67 | 13700 | 910 | 37 | 8 | 17710×5430×8000 |
| 2FG-30 | 3000 | 12500 | 3.2 | 23300 | 1785 | 40 | 8 | 16020×6640×6350 |
| 2FC-30 | 3000 | 14300 | 3.2 | 23300 | 1410 | - | - | 17091×---×8680 |
Pictures of Spiral Classifier:
Packaging & Shipping
Our Services
1. Installation and adjustment of the machine:
Technicist will be provided by supplier for buyer to assist the work such as welding connection
of shell body, equipment installation, adjustment, training, etc.
2. Warrantly period is one year except the easy-wearing parts.
3.Technical support of Jaw Crusher is provided from the beginning to the end.
4.Spare parts of Jaw crusher are serviced for sale in the whole year.

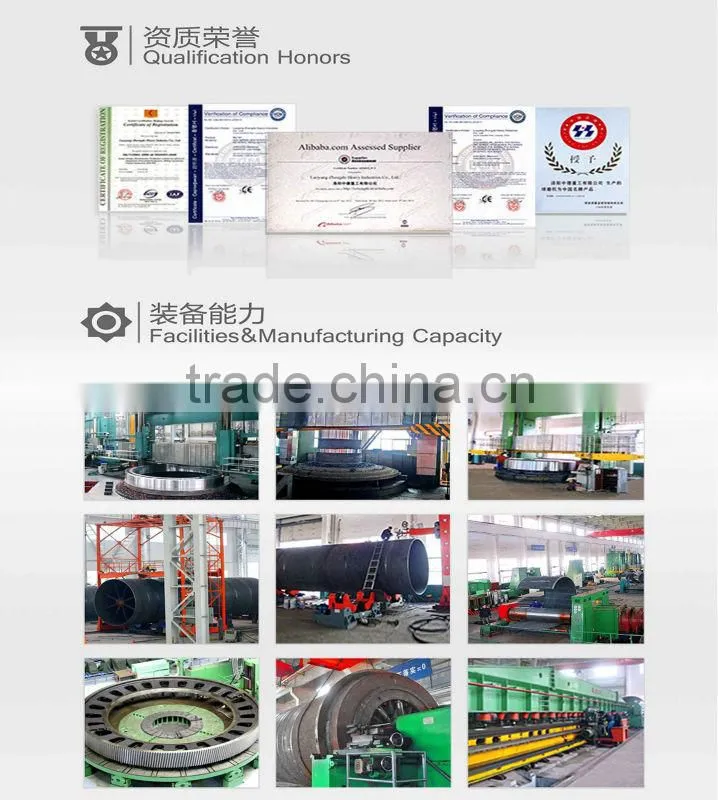

Company Information
