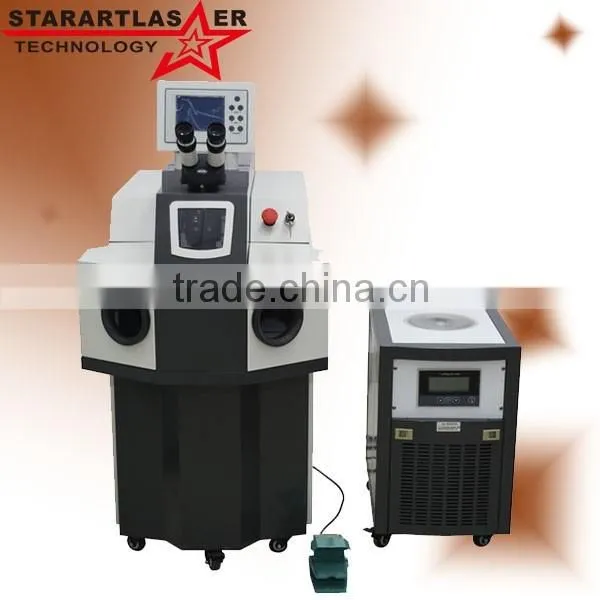

German Jewelry Laser Welding Machine
- 550 Set / Sets per Month
- shenzhen
- Credit Card PayPal
- Multi-usage co2 laser marking machine engrave non-materials arts and gifts food package product date code marking plastic switch
- Automatic laser welding machine no welding penetration continuous welding widely used in sanitary battery glasses hardware
- Fast and high efficiency fiber laser marking machine used in marking rings bracelets mugs watches sanitary ware IC keyboard etc
- mechanical tools cutting machine for Acrylic/wood CO2 laser cutting machine 1390 laser cutting machine
- wholesale distributors wanted laser wood cutting machine price fabric laser cutting machine laser cutting machine price
- desktop cnc machine | LED channel letters welding machine | robotic LOGO welding machine price
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Starart |
Model Number: | XHY-W200/XHY-W250 | Single Pulse Energy: | 120J/140J | Pulse Width: | ≤10ms |
Wavelength: | 1064nm | Focal Spot Diameter: | 0.2mm-3.0mm | Max. Output Power: | 200W/250W |
Dimensions: | 1000*480*1080mm | Usage: | laser welding for jewelry | Power(W): | 6KW/7KW |
Certification: | CE, Other, CE, FC | Warranty: | 12 months, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.The kind machine is specially designed for jewelry industry.
2.It mainly applied to repairing the jewelry and patching holes on old jewelry.
3.Due to the unique advantages,this kind machine has been widely applied to gold and silver jewelry processing technologies,and the welding of tiny and small components.
Main Parts Structure
Appliecable materials
Gold,silver,cooper,stainless steel,alloy,ect
Technical parameters
Model | XHY-W200 | XHY-F250 |
Laser Output Power | 200W | 250W |
Laser Wavelength | 1064nm | |
Needed Input Power | 6KW | 7KW |
Minimum Molten Pool | 0.1mm | |
Pulse Frequency | ≤30Hz | |
Pulse Width | ≤10ms | |
Size of light spot | 0.2-3.0mm | |
Protection Gas | Argon Gas | |
Size Of The Host | 1000*450*1080mm | |
Size of the Water Tank | 400*350*880mm | |
Net Weight | 115KG |
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine are 100% strictly tested by our QC department and engineering department before shipped out.
Payment:
T/T (Bank transfer), Western Union, Papal, Escrow etc. 30% in advance and 70% before shipment.
Delivery time
It's up to the real quantity. We have enough inventory, so, less than 5 sets machine can be prepared within 3-5 working days.
Privacy:
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
Contact:
All of your inquiries or questions or ask-helps will be answered within 12 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
1. 12 months warranty for this fiber laser marking machine.
2. Customers will be fully trained for the operation the machine and general repair skills after the order confirmed.
3. Skilled engineer will help customer to solve you problem by Alibaba TradeManager, Skype,Telphone,Email etc in time when problem appear.
4. Provide life-long paid maintenance after the warranty period.
1.The first layer of packaging is plastic transparent film.
2.The second layer of packaging is 2.3 cm of white foam.
3.The machine must be fixed by small pieces of wood and screws.
4.The third is the standard export wooden case.

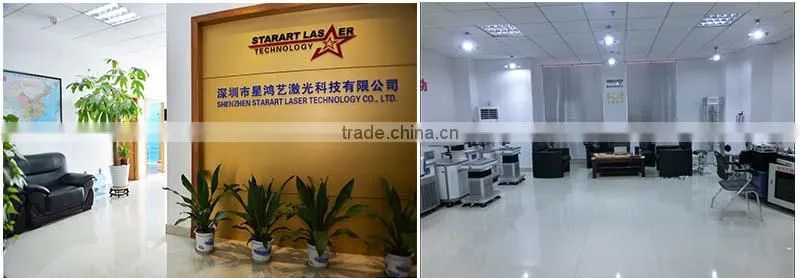

Our Company
