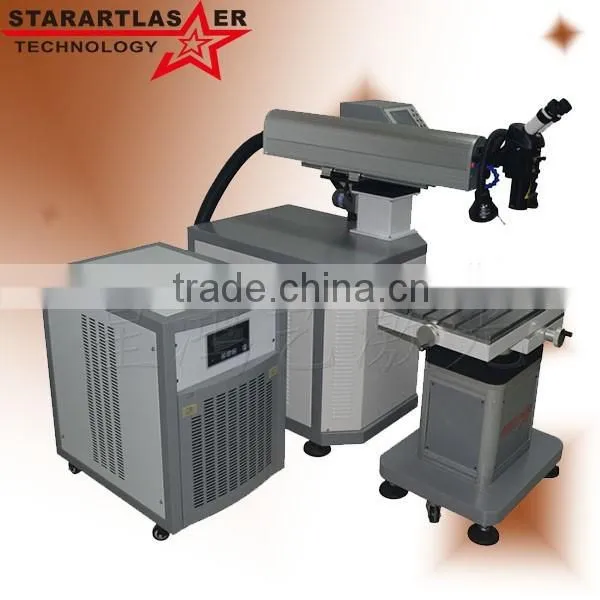

Help CenterLaser Spot Welding Machine for Mould Repairing
Related Products
-
Automatic Laser Welding MachineUS$ 9,500 - 15,000MOQ: 1 Set -
Eye Glasses Frame Laser Spot Welding MachineUS$ 6,000 - 10,000MOQ: 1 Set
-
Hot Sale Jewelry Laser Welder Desktop Laser Welding Machine All Kinds of MetalUS$ 10,000 - 11,500MOQ: 1 Set
-
Dental Laser Welder Desktop Laser Welding Machine for DentalUS$ 10,000 - 11,500MOQ: 1 Set
-
Jewelry Laser Spot Welding MahcineUS$ 10,000 - 11,500MOQ: 1 Set
1.Energy,pulse width,frequency,weld spot size,etc.,are available to adjust on a wide range,to achieve a variety of welding effect.
2.Parameters are controlled by a adjust bar in the closed cavity. Simple and efficient.
3. Using the ceramics condenser cavity imported from United Kingdom, which is corrosion resistant,high temperature resistant,high electro-optical conversion rate.
4.The life of the condenser cavity is 8 to 10 years. The life of the xenon lamp is more then 8 million times.
5.Using the most advanced automatic shading system in the world, eliminating the harm to eyes in the work time.
6.Have the ability of working 24 hours continuously,performance is stable,free maintenance within 10000 hours.
7.Humanized design,accord human body science,long work not tired.
Technical parameters
| Model | XHY-F200 | XHY-F250 |
| Laser Output Power | 200W | 250W |
| Laser Wavelength | 1064nm | |
| Needed Input Power | 7KW | |
| Minimum Molten Pool | 0.1mm | |
| Pulse Frequency | ≤30Hz | |
| Pulse Width | ≤10ms | |
| Size of light spot | 0.2-3.0mm | |
| Protection Gas | Argon Gas | |
| Size Of The Host | 1000*450*1080mm | |
| Size of the Water Tank | 400*350*880mm | |
| Net Weight | 115KG | |
Advantage and Feature
1.Warranty:One year
2.Life of the Xenon lamp: >8 million times
3.The operation method is sample
4.Applied to:jewelry and other micro or small component
5.The only consumable:Xenon lamp($80.00/piece. 6 months/piece)

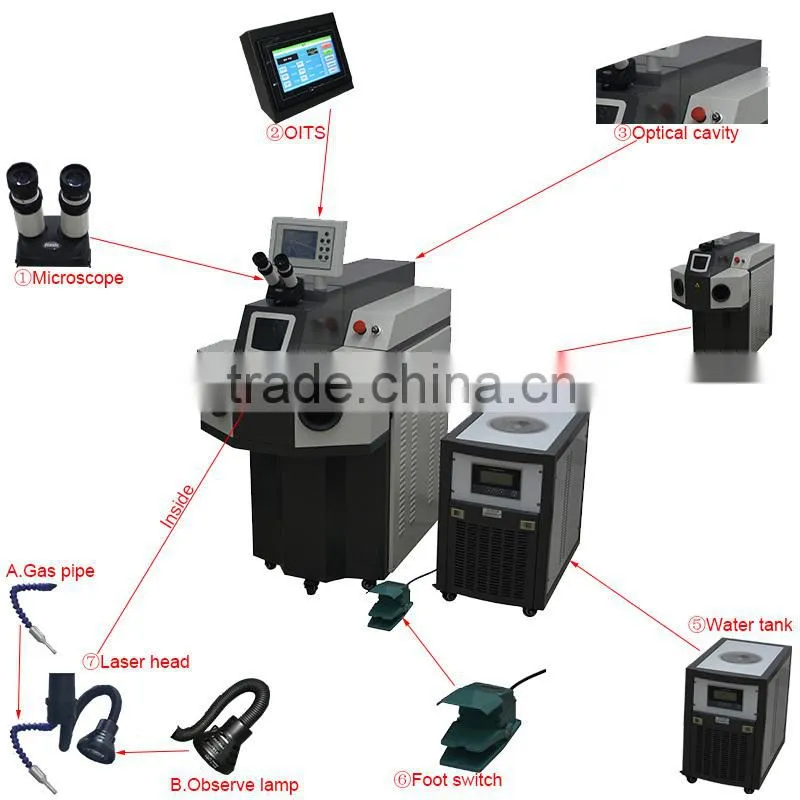

Main Parts Structure
Appliecable materials
Gold,silver,cooper,stainless steel,alloy,ect

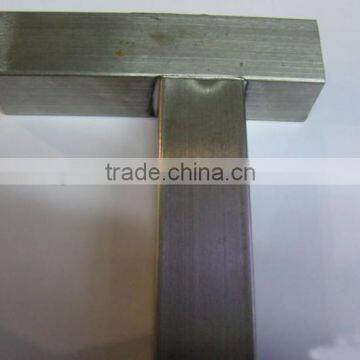

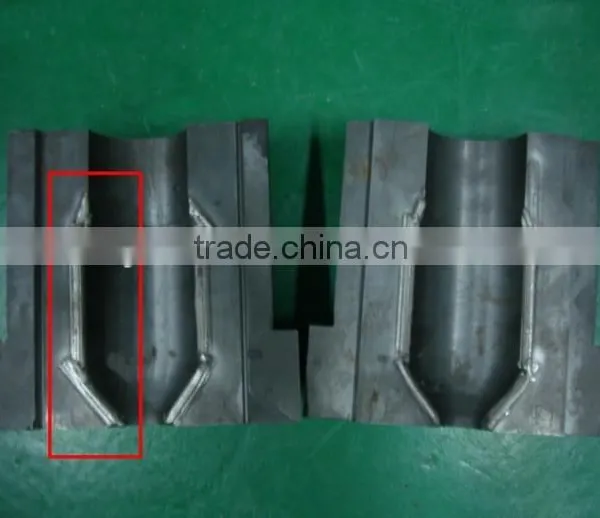

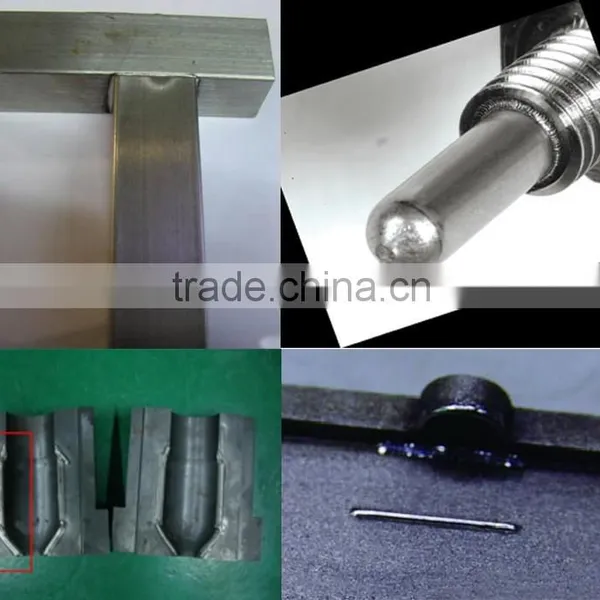

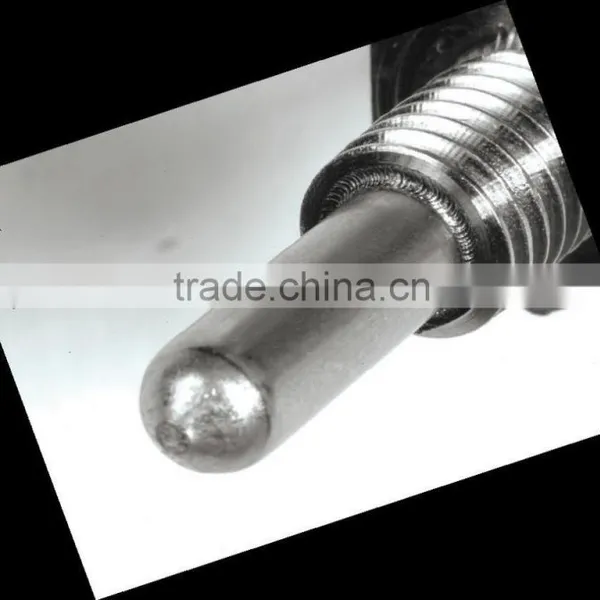

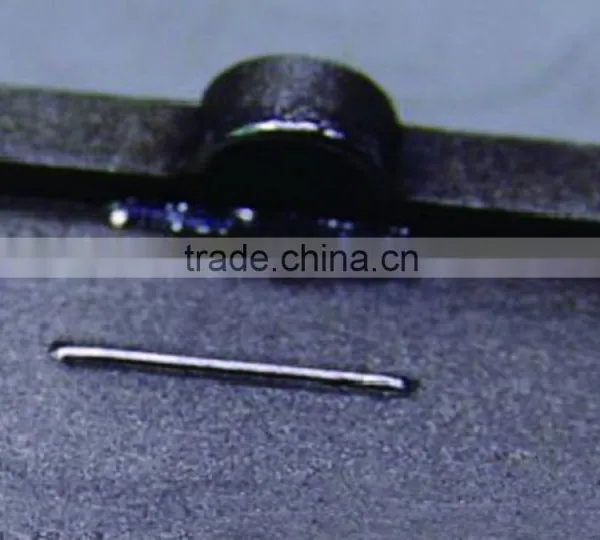

Working Live-action
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine are 100% strictly tested by our QC department and engineering department before shipped out.
Payment:
T/T (Bank transfer), Western Union, Papal, Escrow etc. 30% in advance and 70% before shipment.
Delivery time
It's up to the real quantity. We have enough inventory, so, less than 5 sets machine can be prepared within 3-5 working days.
Privacy:
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
Contact:
All of your inquiries or questions or ask-helps will be answered within 12 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
1. 12 months warranty for this welding machine.
2. Customers will be fully trained for the operation the machine and general repair skills after the order confirmed.
3. Skilled engineer will help customer to solve you problem by Alibaba TradeManager, Skype,Telphone,Email etc in time when problem appear.
4. Provide life-long paid maintenance after the warranty period.
1.The first layer of packaging is plastic transparent film.
2.The second layer of packaging is 2.3 cm of white foam.
3.The machine must be fixed by small pieces of wood and screws.
4.The third is the standard export wooden case.
