1. The laser head of the machine can lift up and down by power-driven, can promote front and back by hand.
2.This welding machine can use the argon gas to prevent the welding products from oxidation.
3.The parameters can be adjusted by intelligent remote control,simple and quick operation.
4.The workbench can electric hoist,three-dimensional movement.
5.The size of light spot can be adjust.
6.The best diameter of the welding wire is 0.2mm-0.8mm.
7.Laser machine will save much labor cost for you. Though the start investment is somehow much, the life of the machine is about 8-10 years.
8.This machine will provide you more economic,more efficient, more security,more automatic production process
Different from the argon welding machine,this machine is more suitable for unified products. Also can be used for repairing or make mould.
Argon welding machine is more flexible. But the effect of welding of argon welding machine is not as good as laser welding machine's.
Technical parameters
| Model | XHY-WD200 | XHY-WD300 | XHY-WD400 |
| Laser output power | 200W | 300W | 400W |
| Laser wavelength | 1064nm | ||
| Pulse width | ≤20ms | ||
| Laser welding frequency | ≤50Hz | ||
| Size of light spot | 0.2mm-3.0mm | ||
| Engine power | ≤9KW | ≤12KW | ≤14KW |
| Integrity power | 380V/3-phase/50Hz/40A | 380V/3-phase/50Hz/60A | |
| Bearing weight | ≤100KG | ||
| Workbench stroke | 200mm×200mm-1200mm×1200mm | ||
| Repeating precision | ±0.01mm | ||
| Aim and positioning system | Red light,CCD momitor system | ||
| Cooling system | Water cooling | ||
| Master unit dimensions | 1500×750×1200mm | ||
Advantage and Feature
1.Warranty:One year or 10000 hours
2.Life of the Xenon lamp: >8 million times
3.The operation method is sample
4.Applied to:welding medium size and small size products.
5.The only consumable:Xenon lamp

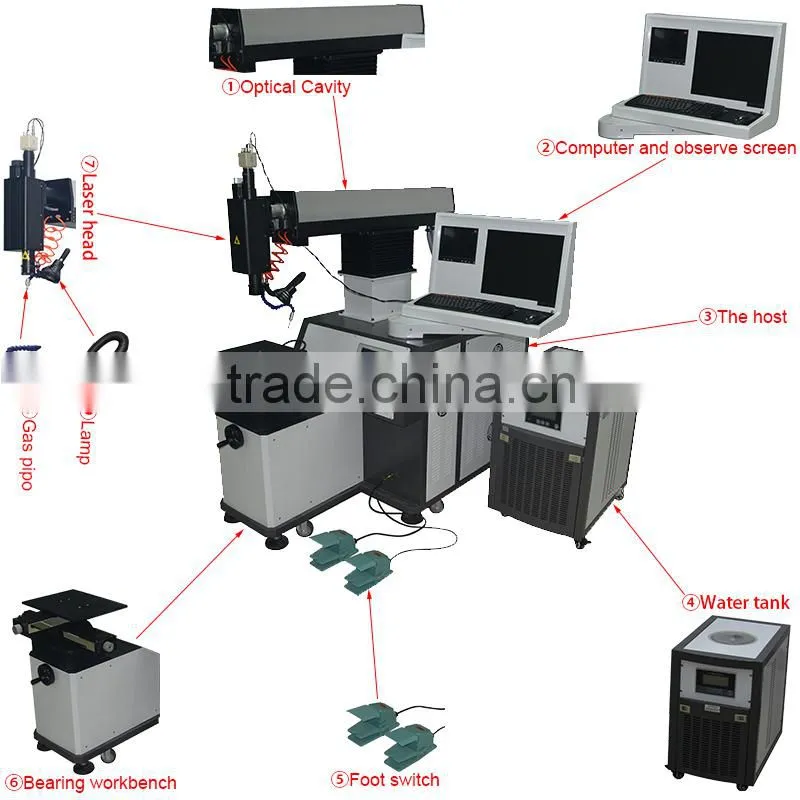

Main Parts Structure
1.Double function foot switch support continuous welding and spot welding.
2.3D stroke workbench and computer can support automatic processing.
Appliecable materials
Gold,silver,cooper,stainless steel,alloy,ect
Working Live-action
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine are 100% strictly tested by our QC department and engineering department before shipped out.
Payment:
T/T (Bank transfer), Western Union, Papal, Escrow etc. 30% in advance and 70% before shipment.
Delivery time
It's up to the real quantity. We have enough inventory, so, less than 5 sets machine can be prepared within 3-5 working days.
Privacy:
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
Contact:
All of your inquiries or questions or ask-helps will be answered within 12 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
1. 12 months warranty for this machine.
2. Customers will be fully trained for the operation the machine and general repair skills after the order confirmed.
3. Skilled engineer will help customer to solve you problem by Alibaba TradeManager, Skype,Telphone,Email etc in time when problem appear.
4. Provide life-long paid maintenance after the warranty period.
1.The first layer of packaging is plastic transparent film.
2.The second layer of packaging is 2.3 cm of white foam.
3.The machine must be fixed by small pieces of wood and screws.
4.The third is the standard export wooden case.
Our Company
South Korea Branch Company
Trade Show
1.Q:Will you charge us any fee during the warranty period when we need maitenance?--Warranty service
A:Buyers need to pay our engineer's travel expenses. But free the machine accessories.
2.Q:Do you provide good service after the warranty period?--After warranty service
A:Yes,we provide paid life-long service after the warranty period. But buyers will be asked to pay the accessories and the engineer's travel expenses.
3.Q:Can I contact you in any time when I need your help?--Any time for service
A:Of course you can. You can contact me by skype,Alibaba trademanager,phone or email. And please call me by phone during 20:00pm-9:00am to Beijing time.
4.Q:What should we do when our machine doesn't work?--When problem appear
A:Plan A:1.Contact me or our service team. 2.Tell us what the problem with your machine.Send me the pictures or video to show me what wrong with your machine. 3.Our service team will make a video to show you and tell you how to repair your machine. Ps:This plan just fit the non-serious condition. And this will save you the travel expense and other fee of our engineer.
Plan B:1.Contact me or our service team. 2.Tell us what the problem with your machine.Send me the pictures or video to show me what wrong with your machine. 3.Our service team will discuss your case. 4.Our service team will decide how to repair your machine.5.We'll tell you to book flights ticket or pay the travel expense. 5.Our engineer set out with the right machine accessories after the flights ticket prepared.
5.Q:What should we pay when your engineer reached us?--Fees for the repair acton
A:Besides the round trip teckets,the buyers need to responsible for our engineer's ordinary working dinner and accomodation.
6.Q:How long will your engineer stay in our company?--Time for repairing
A:Normally,1-5 days.
7.Q:If I can ask your enginner to proform the re-training during the repairing period?--Retraining
A:Yes.Our engineer will re-training your employee free.Please learn it serious to save money in the future.Ps:Our engineer can speak English.
8.Q:What should we do if your engineer do not repaired the machine within 5 days?--When accident appear
A:Normally,this will not happen to our skilled engineer. Just in two cases this will happen.1.The problem is not clear when you told me and thus our engineer bling the wrong machine accessories.2.You have new require about the machine, such as you need to mark log on a new kind of material and need our engineer provide the perfect operational date. If not in these two cases,no extra charge.
