YAG Laser Mould Welding Machine Used in Repairing
- 550 Set / Sets per Month
- Shenzhen
- Credit Card PayPal
- Multi-usage co2 laser marking machine engrave non-materials arts and gifts food package product date code marking plastic switch
- Automatic laser welding machine no welding penetration continuous welding widely used in sanitary battery glasses hardware
- Fast and high efficiency fiber laser marking machine used in marking rings bracelets mugs watches sanitary ware IC keyboard etc
- mechanical tools cutting machine for Acrylic/wood CO2 laser cutting machine 1390 laser cutting machine
- wholesale distributors wanted laser wood cutting machine price fabric laser cutting machine laser cutting machine price
- desktop cnc machine | LED channel letters welding machine | robotic LOGO welding machine price
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Starart |
Model Number: | XHY-WY200/XHY-WY300 | Single Pulse Energy: | 120J/160J | Pulse Width: | ≤20ms |
Wavelength: | 1064nm | Focal Spot Diameter: | 0.2mm-3.0mm | Max. Output Power: | 200W/300W |
Dimensions: | 1350X1050X1300mm | Usage: | welding | Power(W): | 7KW |
Certification: | CE, Other, CE, FC | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
yag laser welding machine1.can weld all kinds of metal
2.Laser output 200W/300W
3.Size of welding spot:0.2-3.0mm
YAG Laser Welding Machine Used in Repairing and Engraving the Mold Laser Weldig Machine
1.This welding machine used the argon gas to prevent the welding products from oxidation.
2. The laser head of the machine can lift up and down by power-driven, can promote front and back by hand. These feactures make the machine especially suitable for all kinds of large,medium and small mould repairing.
3.The parameters can be adjusted by intelligent remote control,simple and quick operation.
4.The workbench can electric hoist,three-dimensional movement.
5.The size of light spot can be adjust.
6.The best diameter of the welding wire is 0.2mm-0.8mm.
Technical parameters
Model | XHY-WY200(A) | XHY-WY300(A) | ||
3-axis stoke workbench | X,Y can be adjusted and Z-axis can be lifted | |||
Bearing weight of workbench | ≤200KG | |||
Power supply | 300KW | |||
Laser parameters | ||||
Laser type | Nd:YAG | |||
Adjusting range of light spot | 0.1-0.3mm | |||
Size of welding spot | 0.2-3.0mm | |||
Laser wavelength | 1064nm | |||
Pulse width | ≤20ms | |||
Maximum laser power | 200W | |||
Pulse Frequency | ≤50Hz | |||
Laser focus length | 10mm/100mm/120mm(optional) | |||
Cooling method | Water cooling | |||
Observing system | microscope | |||
Projection gas | Argon Gas | |||
Solder parameter | ||||
Welding wire diameter | 0.1mm-0.8mm |
Advantage and Feature
1.Warranty:One year or 10000 hours
2.Life of the Xenon lamp: >8 million times
3.The operation method is sample
4.Applied to:jewelry and other micro or small component
5.The only consumable:Xenon lamp
Main Parts Structure
Appliecable materials
Gold,silver,cooper,stainless steel,alloy,ect

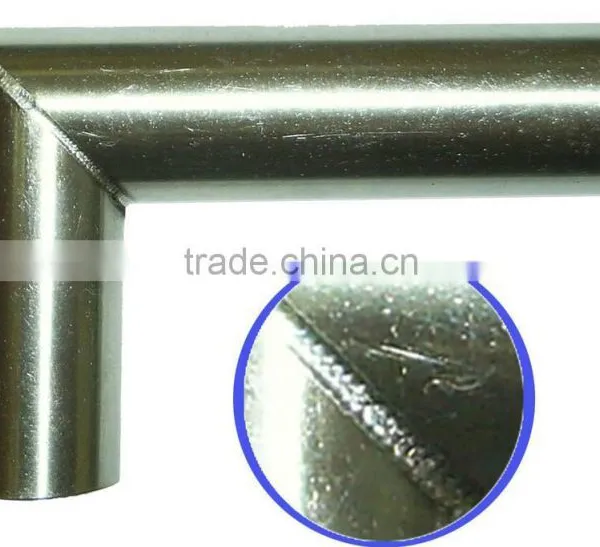

Working Live-action
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine are 100% strictly tested by our QC department and engineering department before shipped out.
Payment:
T/T (Bank transfer), Western Union, Papal, Escrow etc. 30% in advance and 70% before shipment.
Delivery time
It's up to the real quantity. We have enough inventory, so, less than 5 sets machine can be prepared within 3-5 working days.
Privacy:
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
Contact:
All of your inquiries or questions or ask-helps will be answered within 12 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
1. 12 months warranty for this machine.
2. Customers will be fully trained for the operation the machine and general repair skills after the order confirmed.
3. Skilled engineer will help customer to solve you problem by Alibaba TradeManager, Skype,Telphone,Email etc in time when problem appear.
4. Provide life-long paid maintenance after the warranty period.
1.The first layer of packaging is plastic transparent film.
2.The second layer of packaging is 2.3 cm of white foam.
3.The machine must be fixed by small pieces of wood and screws.
4.The third is the standard export wooden case.
