Specifications

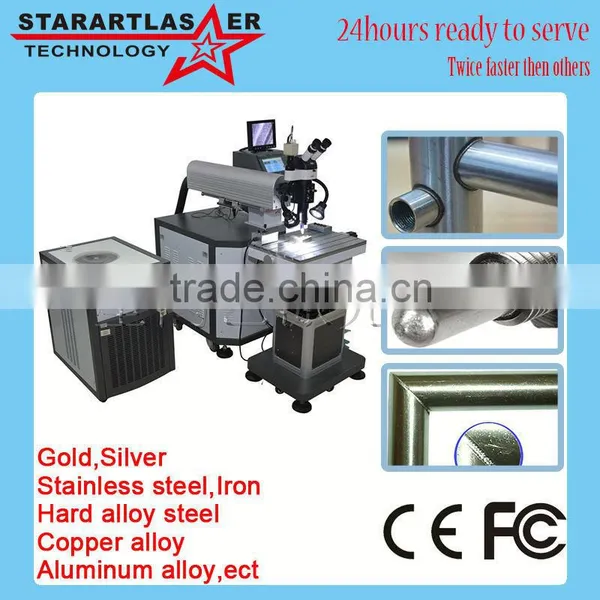

laser welding machine with CCD camera1.can mark all kinds of metals
2.Laser output 200W/300W
3.Size of welding spot:0.2-3.mm
This machine with a CCD camera.(picture-2)
The CCD camera can help you to observe the welding process easily and clearly.
Different from the microscope observe system, the CCD camera observe system can avoid your employees so laborious.
And even the mearsighted guy can operate the machine easily.
This machine is specially designed for mould industries, it can used to repairing the mould and change the mould design. And also can applied to manual welding.
Can weld various materials,including die steel, alloy steel,copper alloy,beryllium copper,aluminum alloy and other metallic materials.(picture-3)
And also can weld gold,silver, titanium and so on.
Need welding wire when repairing the mould.
Technical parameters
Picture-1
| Model | XHY-WY200(A) | XHY-WY300(A) | ||
| 3-axis stoke workbench | X,Y can be adjusted and Z-axis can be lifted | |||
| Bearing weight of workbench | ≤200KG | |||
| Power supply | 300KW | |||
| Laser parameters | ||||
| Laser type | Nd:YAG | |||
| Adjusting range of light spot | 0.1-0.3mm | |||
| Size of welding spot | 0.2-3.0mm | |||
| Laser wavelength | 1064nm | |||
| Pulse width | ≤20ms | |||
| Maximum laser power | 200W | |||
| Pulse Frequency | ≤50Hz | |||
| Laser focus length | 10mm/100mm/120mm(optional) | |||
| Cooling method | Water cooling | |||
| Observing system | microscope | |||
| Projection gas | Argon Gas | |||
| Solder parameter | ||||
| Welding wire diameter | 0.1mm-0.8mm | |||
Advantage and Feature
1.Warranty:One year or 10000 hours
2.Life of the Xenon lamp: >8 million times
3.The operation method is sample
4.Applied to:jewelry and other micro or small component
5.The only consumable:Xenon lamp
Main Parts Structure
Picture-2
Appliecable materials
Gold,silver,cooper,stainless steel,alloy,ect
Picture-3
Working Live-action
This shows some kinds of our machines' working live-action.
Picture-4
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine are 100% strictly tested by our QC department and engineering department before shipped out.
Payment:
T/T (Bank transfer), Western Union, Papal, Escrow etc. 30% in advance and 70% before shipment.
Delivery time
It's up to the real quantity. We have enough inventory, so, less than 5 sets machine can be prepared within 3-5 working days.
Privacy:
None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
Contact:
All of your inquiries or questions or ask-helps will be answered within 12 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
1. 12 months warranty for this machine.
2. Customers will be fully trained for the operation the machine and general repair skills after the order confirmed.
3. Skilled engineer will help customer to solve you problem by Alibaba TradeManager, Skype,Telphone,Email etc in time when problem appear.
4. Provide life-long paid maintenance after the warranty period.
1.The first layer of packaging is plastic transparent film.
2.The second layer of packaging is 2.3 cm of white foam.
3.The machine must be fixed by small pieces of wood and screws.
4.The third is the standard export wooden case.
Picture-5
