Specifications

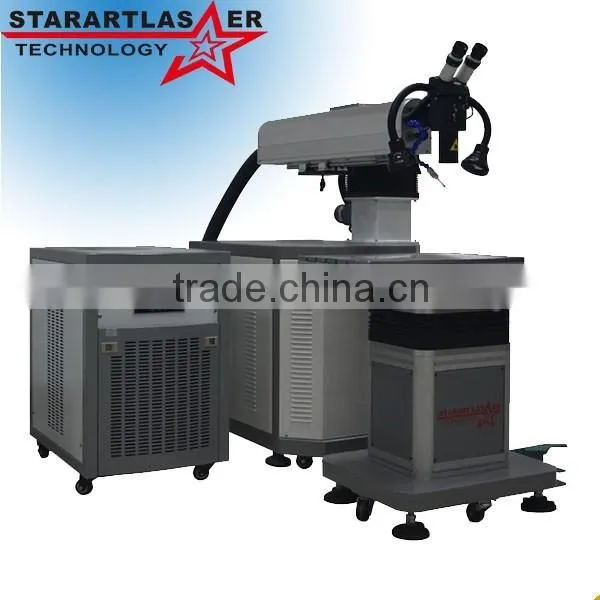

eastern laser welding machine1.can mark all kinds of metals
2.Laser output 200W/300W
3.Size of welding spot:0.2-3.mm

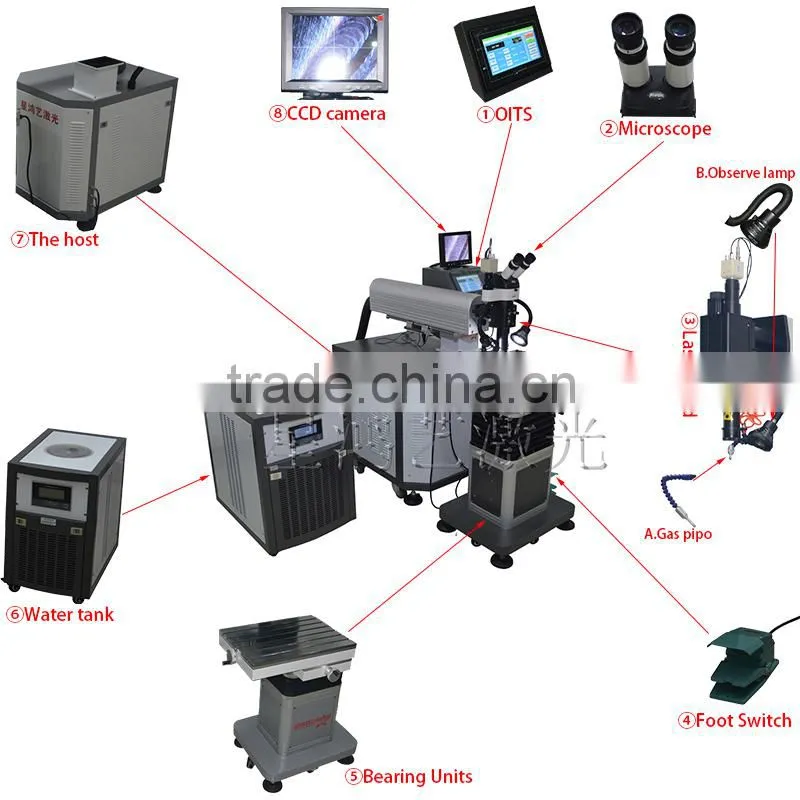

1.This machine with CCD camera observe system, you employees can observe the welding process easily. Avoid you employee working so laborious.
2.This is a machine for repairing and modification the mould. Thus greatly save the production cost and improve the working efficiently. It can be applied to modify the design or size of mould to shorten product development period.
3.Can weld various materials,including alloy steel,copper alloy,beryllium copper,aluminum alloy and other metallic materials.
4.And also can weld gold,silver, titanium and so on.
This machine with a CCD camera to observe the welding process.
Technical parameters
| Model | XHY-WY200(A) | XHY-WY300(A) | ||
| 3-axis stoke workbench | X,Y can be adjusted and Z-axis can be lifted | |||
| Bearing weight of workbench | ≤200KG | |||
| Power supply | 300KW | |||
| Laser parameters | ||||
| Laser type | Nd:YAG | |||
| Adjusting range of light spot | 0.1-0.3mm | |||
| Size of welding spot | 0.2-3.0mm | |||
| Laser wavelength | 1064nm | |||
| Pulse width | ≤20ms | |||
| Maximum laser power | 200W | |||
| Pulse Frequency | ≤50Hz | |||
| Laser focus length | 10mm/100mm/120mm(optional) | |||
| Cooling method | Water cooling | |||
| Observing system | microscope | |||
| Projection gas | Argon Gas | |||
| Solder parameter | ||||
| Welding wire diameter | 0.1mm-0.8mm | |||
Advantage and Feature
1.Warranty:One year or 10000 hours
2.Life of the Xenon lamp: >8 million times
3.The operation method is sample
4.Applied to:jewelry and other micro or small component
5.The only consumable:Xenon lamp
Appliecable materials
Gold,silver,cooper,stainless steel,alloy,ect
Working Live-action
