Max depth 600m bore well drilling machine prices, portable water well drilling rigs for sale
Product Introduction:

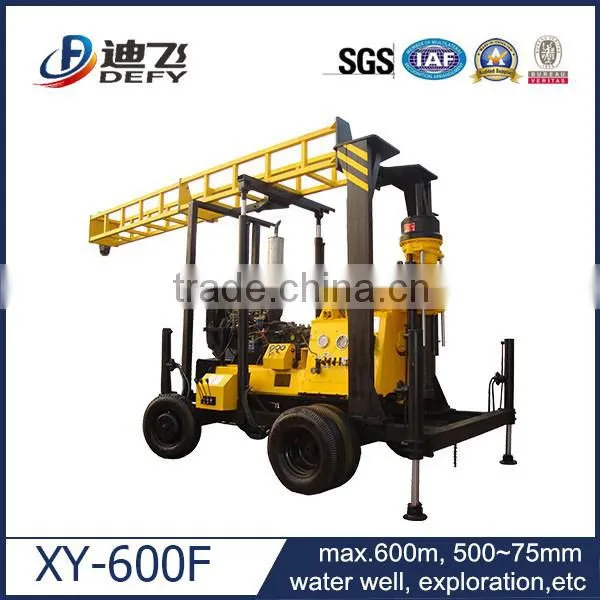

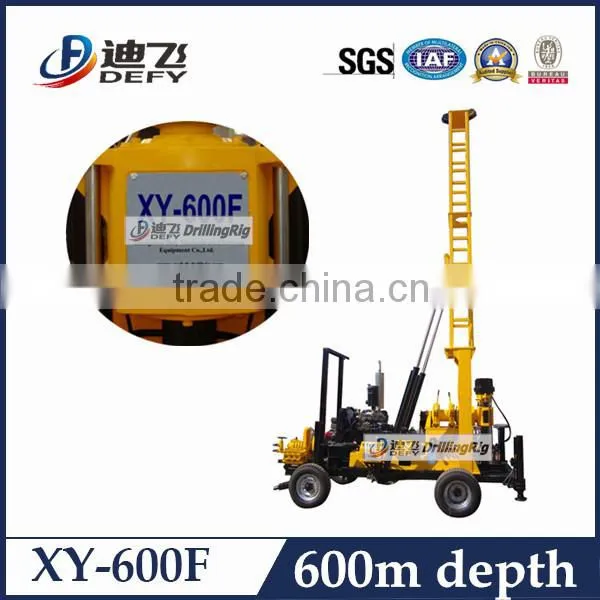

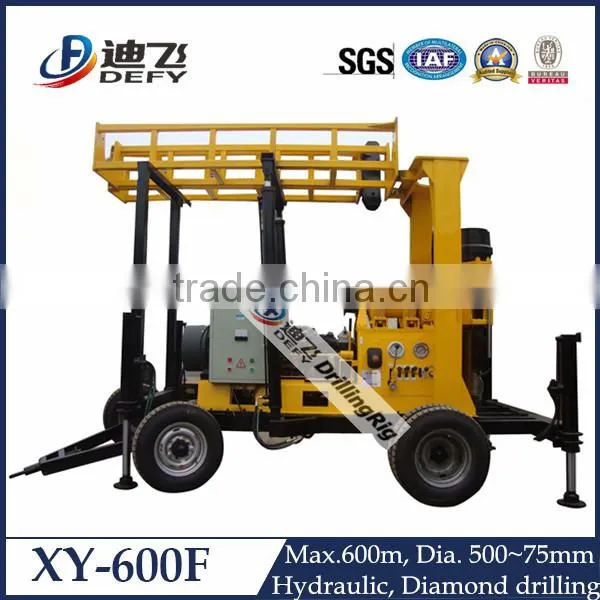

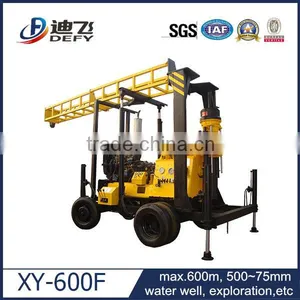

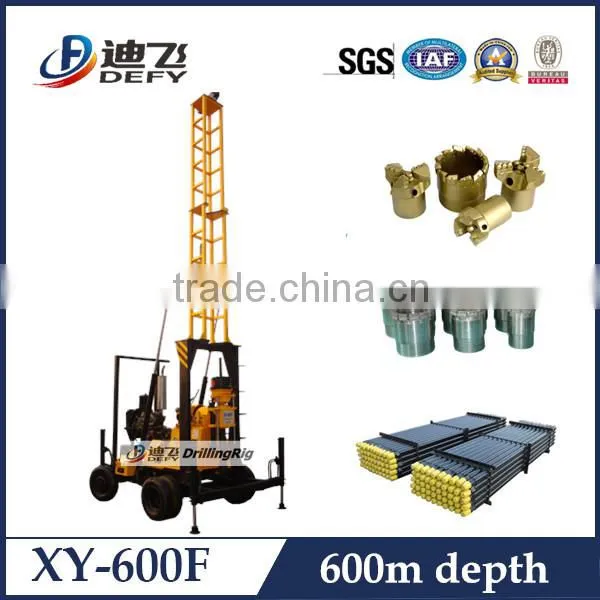

XY-600F can drill up to 600m depth,diameter from 500mm to 75mm,with Hydrualic Foldable Mast and HydraulicSupport Legs, 53 HP Diesel Engine,BW-200 or BW-250 Mud pump,can be used for Water wells,Geothermal wells,Explorationg coing works and so on.
Advantages:
1. Four wheels driven tractor/trailer/crawler mounted drilling machinery, easy to move.
2. Diesel engine as power. No need to use electricity, convenient for outdoor drilling.
3. Integrated drill tower. Automatically controlled by hydraulic. No need to install it manually.
4. BW-200 or BW-250 mud pump, with large water flushing rate, supply powerfully energy for working.
5. Four support legs,increasing the working stability.
Technical Parameters:
1. Main Parameters | |||
Max. Drilling Depth |
600m |
||
Diameter of drill pipe |
Φ42,Φ50,Φ60,Φ76 |
||
Angle of vertical spindle |
90°~65° |
||
Drilling capability | |||
Φ75mm drill diameter |
600m depth |
||
Φ127mm drill diameter |
400m depth |
||
Φ219mm drill diameter |
210m depth |
||
Φ273mm drill diameter |
150m depth |
||
2. Vertical Spindle | |||
Rotation speed |
Forward 10 grades |
30-1050r/min |
|
Reverse 2 grades |
29-137r/min |
||
3. Main hoist | |||
Lifting speed of single wire |
0.5-1.9m/s |
||
Diameter of wire rope |
12.5mm |
||
Carry capacity of single wire |
4000kg |
||
4. Mud pump(as per your choice) | |||
Horizontal triplex mud pump |
BW-200 |
||
Displacement |
200L/min |
||
5.Power supply(choose one between the following two) | |||
Diesel engine |
Model 4100,38kw(50HP) |
||
Electrical motor |
Y180M-4B35,22kw |
||
6.Six-wheel Trailer |
|||
Walking speed |
25Km/hr |
||
Features:
1. Power supply:
It can be powered by diesel engine or electric motor as options; Diesel engine is started by electric battery.
2. Mobile base:
It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Automobile transmission assembly:
With 10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratum drilling requirements.
4. Mud pump
Designed with BW-200 or BW-250 mud pump, XY-600F is with much larger water flushing rate, with better scraps cleaning effects.
5. For different stratum
Soil, sand, gravel, rocks. XY-600F can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.
6. Integrated drill tower
Hydraulically control the rise and fall, no need to install drill tower manually.
7. Four hydraulic standing legs
The standing legs will ensure stable working and good performance in different working site.
8. With second small winch
You can use it for wireline drilling, SPT testing, or other projects.

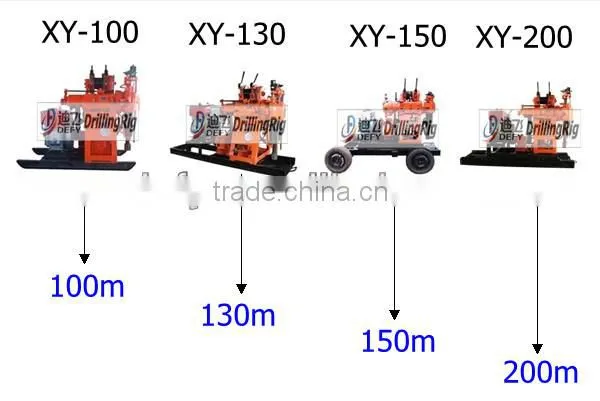

XY Series products:
Model |
Drilling caliber |
Max. drilling depth |
Application Range |
XY-100 |
300mm~75mm |
100m |
Geological exploration & survey; Mineral prospecting; Water wells; Blast hole; Geothermal heat wells and so on. |
XY-130 |
300mm~75mm |
130m |
|
XY-150 |
400mm~75mm |
150m |
|
XY-180 |
400mm~75mm |
180m |
|
XY-200 |
400mm~75mm |
200m |
Related products brief introduction:

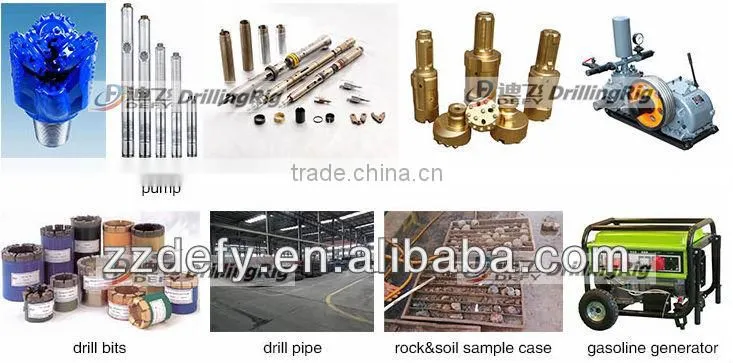

Spare parts:

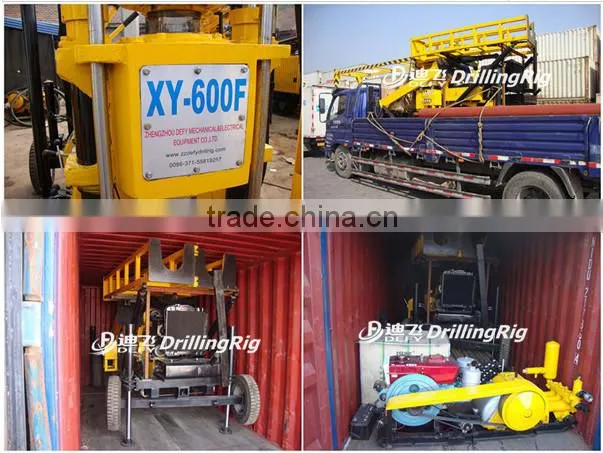

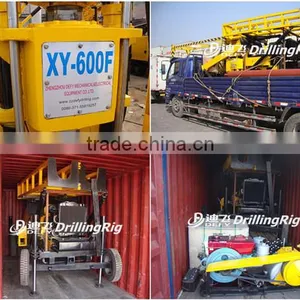

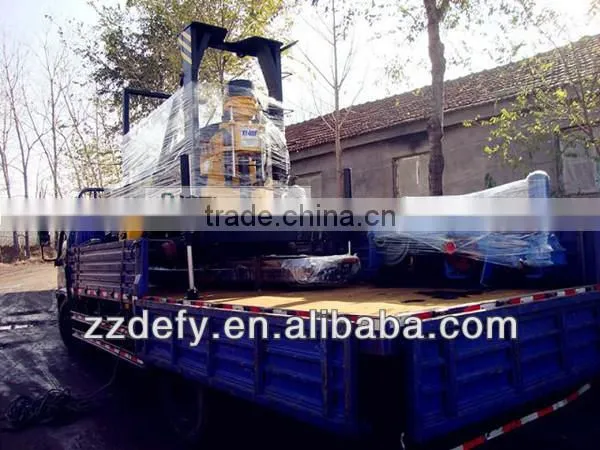

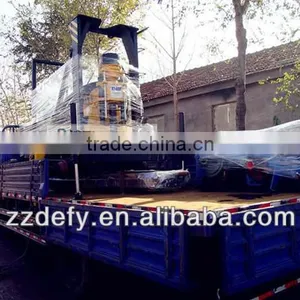

XY-600F Packing and Delivery:

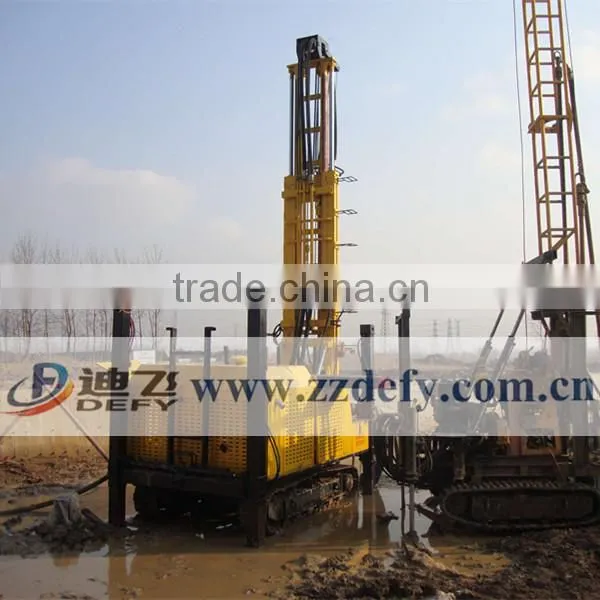

XY-600F Working Site:
Company Information:
Certificates:
Thanks for visiting,if interested,contact me anytime
O(∩_∩)O~
Please don`t hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
