Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale

Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale photo-1

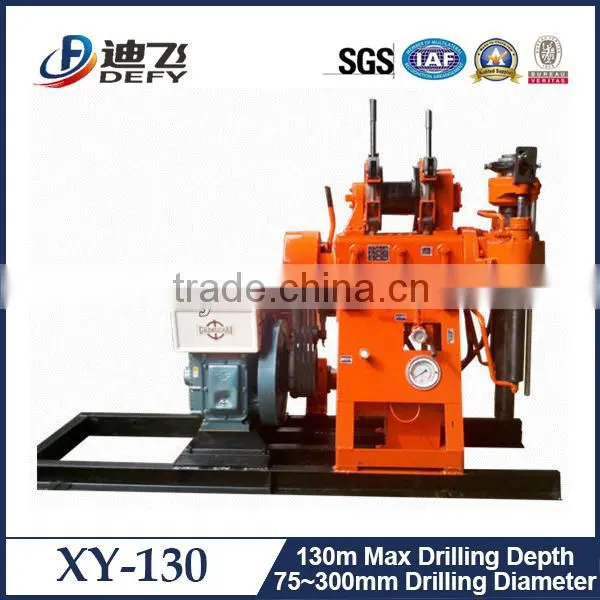

Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale photo-2

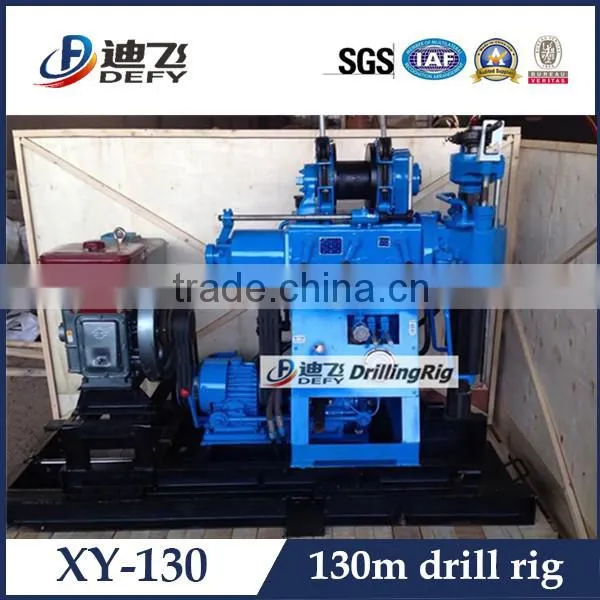

Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale photo-3

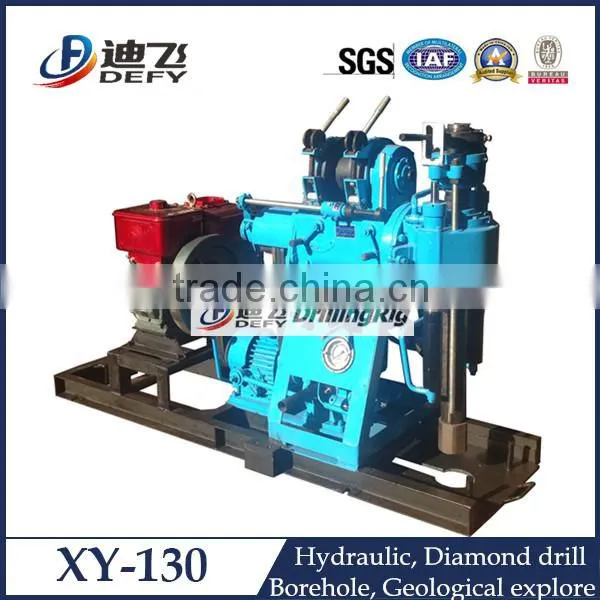

Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale photo-4

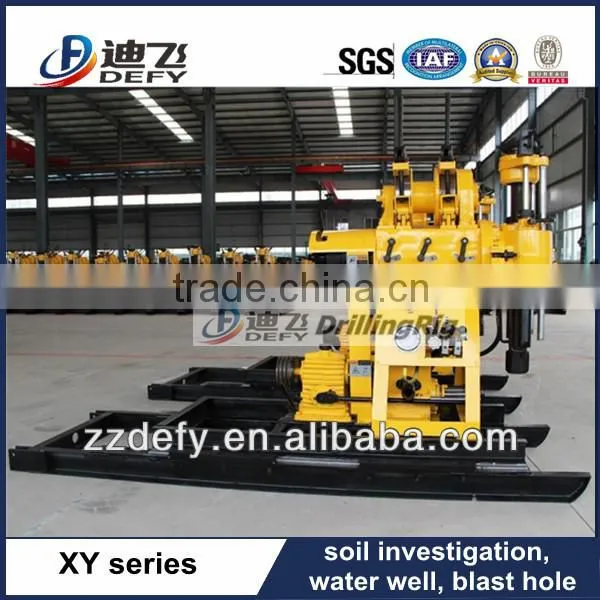

Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale photo-5

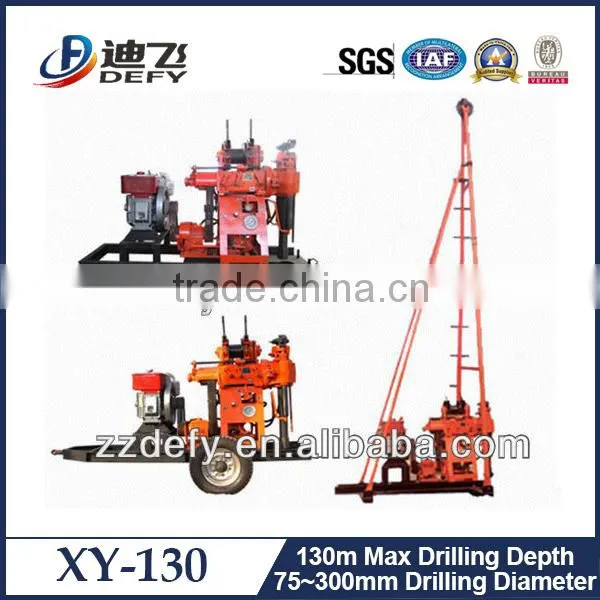

Borehole Drilling Machine XY-130 Portable Used Water Well Drilling Machine for Sale photo-6
US$ 5,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin and what you want
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number xy-130
Usage Water Well
Voltage 220V/380V
Power(W) 11kw
Dimension(L*W*H) 2000mm*900mm*1400mm
Weight 580kg
Certification BV,SGS
Warranty 12Months
After-sales Service Provided No overseas service provided

Borehole drilling machine XY-130 portable used water well drilling machine for sale

Borehole drilling machine XY-130 portable used water well drilling machine for sale



Product Description

  Usage of Borehole drilling machine XY-130 portable used water well drilling machine



1.water well,

2.geological exploration&survey

3.mineral prospecting

4.blast hole

5. geothermal air-conditioner hole

Characteristics

 Features of  XY-130 portable used water well drilling machine

1.hydraulic controlling

2.power resource :diesel engine or electrical motor

pact volume , dismountable ,easy to carry

4.can be mounted on wheel-trailer crawler or truck

specification:



1. Overall parameters

Drilling depth

130m

Maximum open hole caliber

300mm

End hole caliber

75mm

Weight(not include power)

580kg

Dimension

2000mm*900mm*1400mm

2. Vertical shaft

Rotating speed

142285570r/min

Feeding stroke

450mm

3. Hoist

Max. single line hoisting capacity

1600Kg

4. Mud pump

Type

Horizontal single urn twin-action

Rate of flow

95/77L/min

MAX. pressure

1.2MPa

Working pressure

0.7MPa

5. Power

Diesel engine

18HP, 2000r/min

Electric motor

11KW, 1460r/min

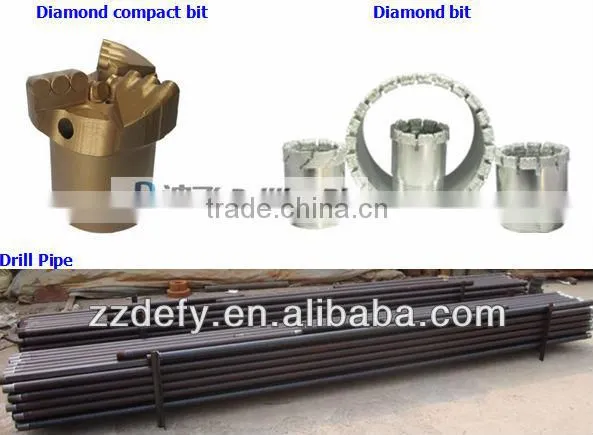

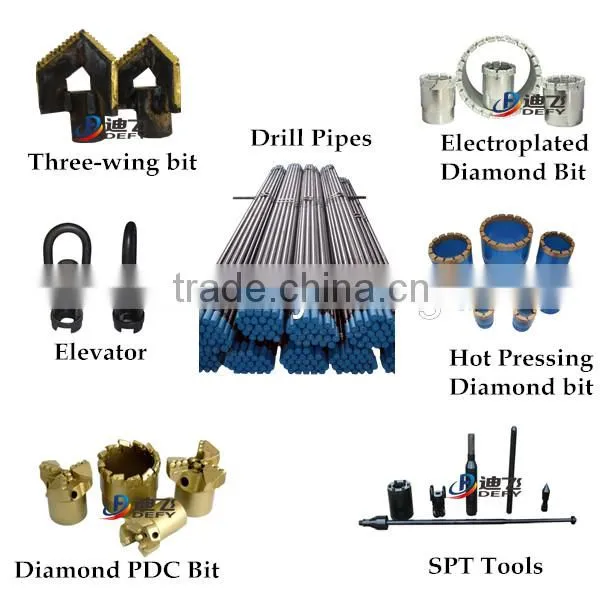

Spare Parts



Borehole drilling machine XY-130 portable used water well drilling machine for saleBorehole drilling machine XY-130 portable used water well drilling machine for sale

Company Information

We build the portable water well drilling rigs with nothing but the best components and materials. We work with hydraulic experts to help us make sure the rigs we build have an efficient hydraulic system. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.

Borehole drilling machine XY-130 portable used water well drilling machine for sale

FAQ:

1.Q:Can xy-130 be used in hill village without  electricity ?

    A: YES ,xy-130 can be equipped with either diesel engine or electrical motor ,so it can be worked hill village.

2.Q:whether  xy-130  Can be carried easily or not ?

   A: Yes,xy-130 compact volume,dismountable, for one or two persons can be able to carry .

3.Q:Can xy-130 be used for hard rocks ?

   A: yes,xy-130,applicable to drill all kinds of grounds ,both soft stratum and hard stratum ,such as sand, mud, weathering rocks ,hard rocks .

Borehole drilling machine XY-130 portable used water well drilling machine for sale

  Borehole drilling machine XY-130 portable used water well drilling machine for sale

Contact Me

Please don`t hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
