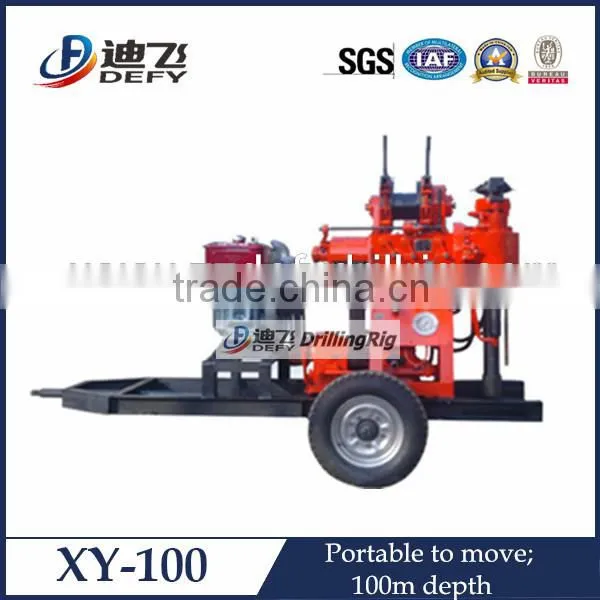

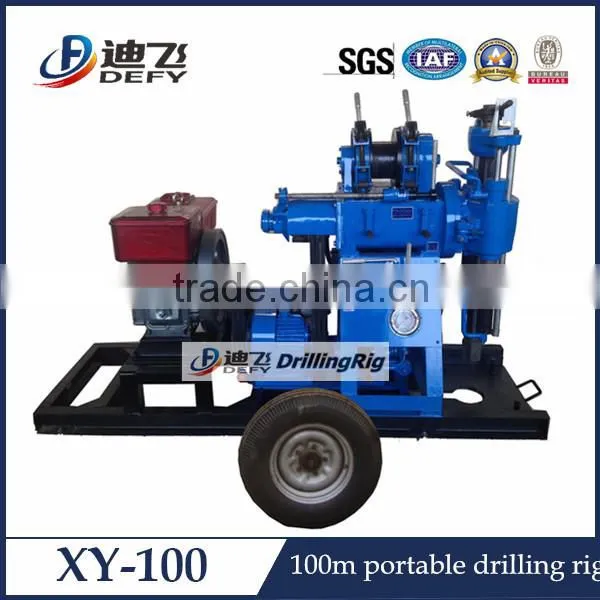

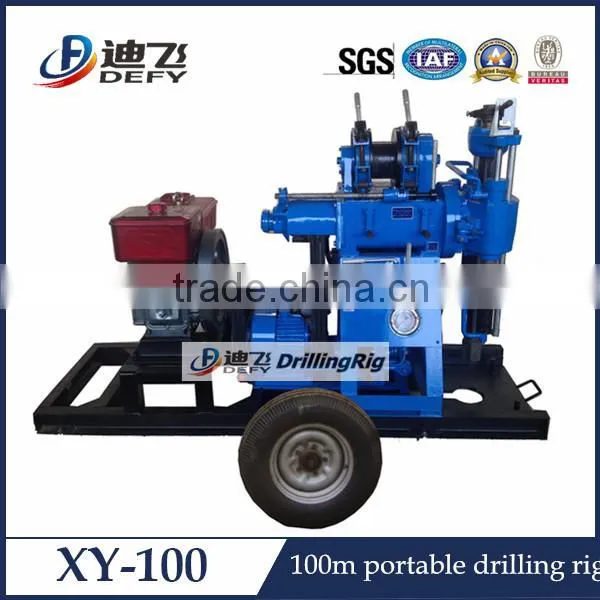

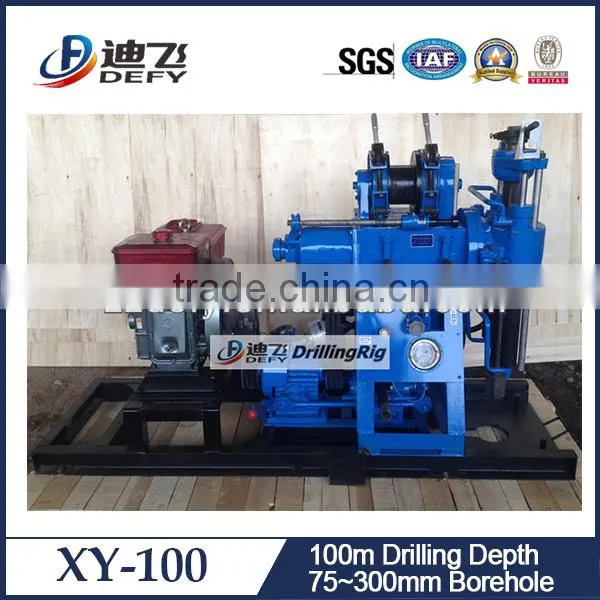

Water well drilling machine XY-100 portable bore well drilling machine price
XY-100 portable bore well drilling machine price for sale is a new- type, hydraulic
engineering borehole drilling machine for multiple applications.
1. Model No.: XY-100
2. Max. Drilling Depth:100m
3. Drilling Rod Diameter: 50mm
4. Borehole Diameter: 75~~300mm
5. Warranty: One year guarentee excluding wearing parts
6. Certifications: BV, SGS Certificate
7. Applications: Water Well, Irrigation wells, Geological Exploration, Blast Holes, Geothermal Heat Project etc.
Advantage of XY-100 portable water well drilling rigs for sale:
1. Power can be electrical motor or diesel engine, as per your project needs;
2. Engine and Mud pump,Reduction gears and Drill rig are all installed on one base,
more compact structure and improve the overall rigidity;
3. Mounted in 2-wheel trailer,easy to move around when working;
4. Easy to disassemble,installed and operation,
the Heaviest part is less than 100KG,convenient for maintenance and transport;
5. Using alloy bit for soft ground,using diamond bits for hard ground.
Water well drilling machine XY-100 portable bore well drilling machine price | |
1. Overall parameters | |
Drilling depth |
100m |
Maximum open hole caliber |
300mm |
End hole caliber |
75mm |
Diameter of drill rod |
42mm |
Drilling angle |
90~75 |
2. Vertical shaft |
|
Rotating speed |
142, 285, 570 r/min |
Feeding stroke |
450mm |
3. Hoist |
|
Max. single line hoisting capacity |
1600Kg |
Diameter of wire rope |
11mm |
4. Mud pump |
|
Type |
Horizontal single urn twin-action |
Rate of flow |
95/77L/min |
5. Power |
|
Diesel engine |
18HP, 2000r/min |
Electrical motor |
11KW, 1460r/min |

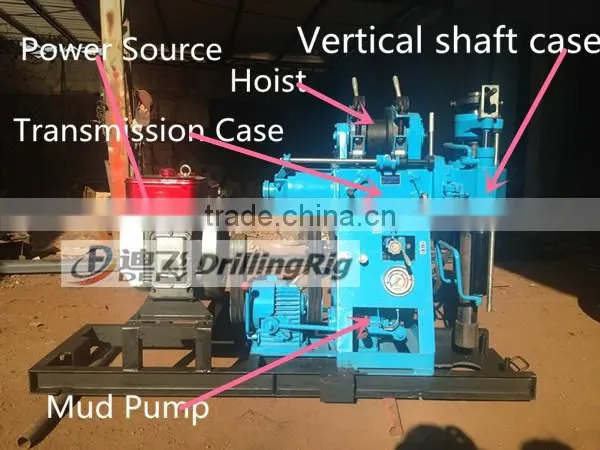

1.Power: You can choose either diesel engine or electrical motor as power. Diesel engine can be used for no electricity areas.It is very convenient.
2.Mud pump: Integrative mud pump, compact volume, easy to carry for one or two persons. Mud pump can wash the wells and cool the drill bit during operation.
3.Transmission case: Transmission case can adjust drill rate according to stratum environments.Soft stratum low drill rate is ok. If hard you need to increase drill rate accordingly.
4.Hoist: Lift part, lifting drill tools.
5.Vertical shaft case: Vertical shaft and chuck can hold and release drill rods perfectly and tightly, giving powerful propulsion force for smooth and stable working.
6.Frame: including drill tower, transfer machine and moving parts.
Drill tower:
Slide base: Don`t need to move the whole machine,is very convenient.

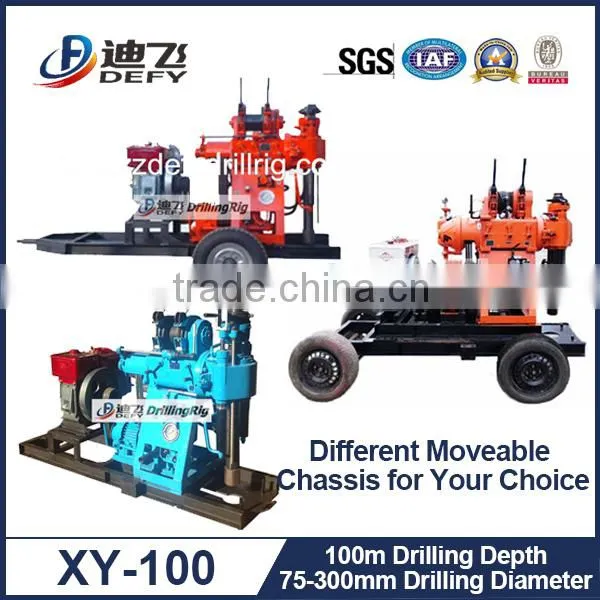

Moving parts: Drilling rig can be mounted on trailers or crawler or truck. easy to move.
7.Working with different drill tools can drill all kinds of stratum,such as sand, mud, soil, gravel, weathering rocks and hard rocks so on.
Three wing bit: drill for open hole, soil, sand, and small gravel layers.
Alloy bit: for soil, sand, gravel, etc.
Diamond bit: for rock and hard rock ground
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
Please don`t hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
