Product Details
Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | DEFY | Model Number: | DF-Y-2 |
Usage: | Ore | Power(W): | 22KW | Dimension(L*W*H): | 2177*950*1863mm |
Weight: | 1300kgs excluding power | Certification: | BV,SGS certificate | Warranty: | One year warranty excluding wearing parts |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

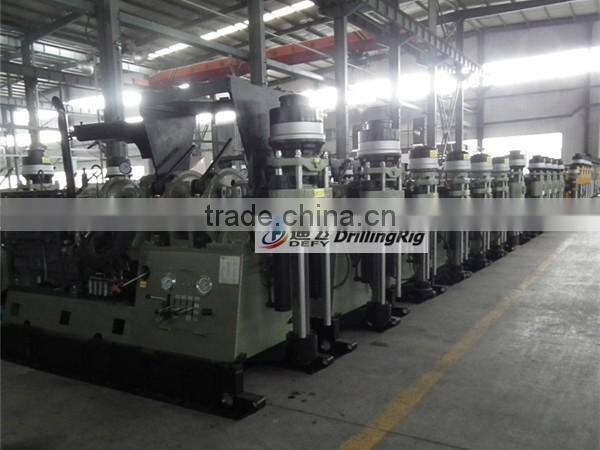

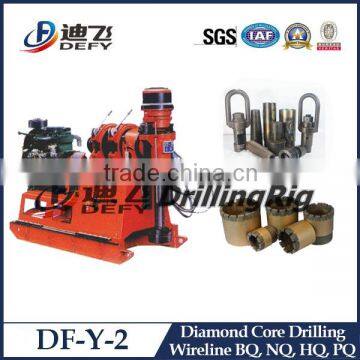

China Portable Full Hydraulic diamond core drill rig
I.General introduction:
DF-Y-2 Core Drill is up-dated designed according to the development of geological works to meet the needs of users. It is a new type spindle core drill rig. It is applied for engineering geological exploration drilling, hydro geology well drilling and big-hole basic engineering drilling including core drilling with tungsten-carbide tipped and diamond bit mainly.
Characteristics:
1. Light in weight, easy relocation.
2. Adopting traversal winch, this will overcome the fault of wire arbitrary intertwine and quick wearing out of the winch laid in length ways.
3. Belt transmission is adopted for the high speed level to make the drill soft in the uneven formation, and reduce the damage to the components and other mechanical failure.
4. In large spindle hole.
5. With wide speed range and large torque moment in lower speed, it is suitable for engineering geological subterranean and water explorations.
6. The rig is stable in relocation and firmly for position.
7. Debuts F3L 912 diesel engine or 22Kw electric motor for your selection.
II. Specifications:
Drilling capacity | Drilling type | Drilling depth |
Foundation pile drilling | 100m (328 feet) | |
Hydro geological well drilling | 150m (492 feet) | |
Core Drilling | 600m (1968 feet) | |
Rotator | Type of power engine | Diesel/electric motor |
Positive speed (r/min) | 92;152;230;330;293;485;734;1056 | |
Negative speed (r/min) | 81;258 | |
Max. torque of Spindle | 2.1 KN·m (1548 lbf·ft) | |
Spindle I.D | 93mm (3.66 inch) | |
Hoist | Hoisting capacity (single-third of the rope ) | 31300,12600,8800 N (7034;2831;1978 lbf) |
Lifting speed of wire rope (The third rope) | 0.64; 1.05; 1.6; 2.3 m/s (2.1;3.44;5.25;7.54 inch/s) | |
Wire rope diameter | 12.5mm (0.49 inch) | |
Drum diameter | 194mm (7.64 inch) | |
Brake rim diameter | 360mm (14.17 inch) | |
Drum length | 150mm(5.91inch) | |
Brake band width | 90mm (3.54 inch) | |
Drum capacity | 80m (262.4feet) | |
Traveling device | Retraction cylinder stroke | 600mm (23.62 inch) |
Distance between drill rig and hole | 420m (16.54inch) | |
Pressurizing system | Cylinder I.D. | 70 mm(2.76 inch) |
Cylinder rod dia. | 35 mm (1.38 inch) | |
Max. pressure | 45 KN(10116 lbf) | |
Max. lifting force | 60 KN(13488lbf) | |
Cylinder stroke | 550 mm (21.65 inch) | |
Oil pump | Type | CBF-E416-AL |
Displacement | 16L/min (4.22 US Gallons/min) | |
Speed | 1500(r/min) | |
Working pressure | 8Mpa (1160 psi) | |
Max. pressure | 20Mpa (2901 psi) | |
The hexagonal Kelly | Φ89×79 mm,Φ76×66 mm,Φ60×53 mm(Φ3.50×3.11 inch,Φ3.0×2.60 inch, Φ2.36×2.09 inch) | Φ89 mm,Φ71 mm,Φ50 mm (Φ3.50 inch,Φ2.80 inch,Φ1.97 inch) |
Dimensions (L×W×H) | 2177×950×1863 mm (85.71×37.40×73.35 inch) | |
Weight of drill (without power unit) | about 1300 kg (2867 lb) |
Accessories of coring drilling rig:
Capacity of DF-Y-2 Core Drill :
Rod Size | Drill Depth |
42 mm drill rod : | 530 m |
50 mm drill rod: | 385m |
60 mm drill rod: | 320 m |
43 mm wire-line drill rod: | 640m |
53 mm wire-line drill rod: | 500m |
63 mm wire-line drill rod: | 380 m |
AW drill rod: | 530 m |
BW drill rod: | 420 m |
NW drill rod: | 320 m |
AQ wire-line drill rod: | 565 m |
BQ wire-line drill rod: | 460 m |
NQ wire-line drill rod: | 350 m |

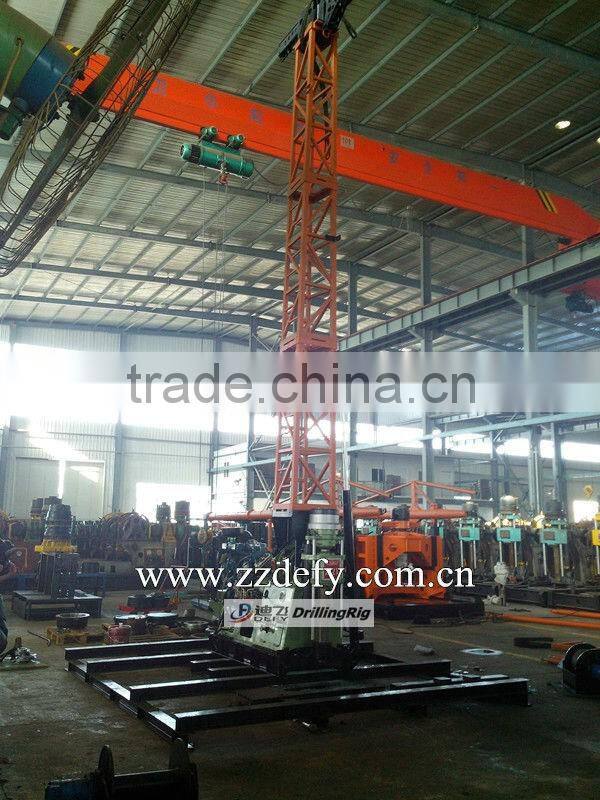

Working site of coring drilling rig:

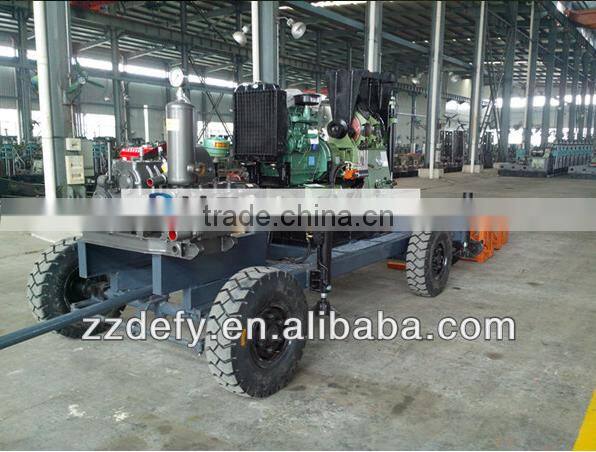

Wheel mounted coring drilling rig:
Please kindly tell us your detailed requirement then our professional engineers will give
you the most suitable suggestions.
1. What kind of projects you will work for?
---Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal
air-conditioner holes or others?
2. The Max. depth of drilling you hope to achieve?
---For DF-Y series, it can reach 300-4000m with different models.
3. The Min. and Max. hole diameter you want?
---Usually 96-118mm.
4. Condition of the environment?
---Soft ground like soil, mud, sand.
---Hard ground like hard rocks .
---Or mixed.
Our Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal
air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
Thanks for browse our products information. If you have any question, or want to know more about drilling rig, Pls contact me directly:
Nora
Skype/MSN: nora-drillingrig @
Phone/WhatsApp: 86-15286806707
Email: nora @
Tel: 86-371-55819257
Fax: 86-371-66770722
Contact Us
- Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
- Contact nameLisa Si
- Phone86-371-55819257
- Address No.96 Ruida Road, High-Tech Zone, Zhengzhou City, Henan Province, China Zhengzhou,Henan
