Fully Hydraulic core drilling rig for sale in global market
- 10 Set / Sets per Month
- Qingdao China
- T/T Credit Card
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | DEFY | Model Number: | DF-H-8 |
| Usage: | Ore | Power(W): | 264KW/2200rpm | Dimension(L*W*H): | 8300*2400*3500mm |
| Weight: | 25000 Kg | Certification: | BV,SGS | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

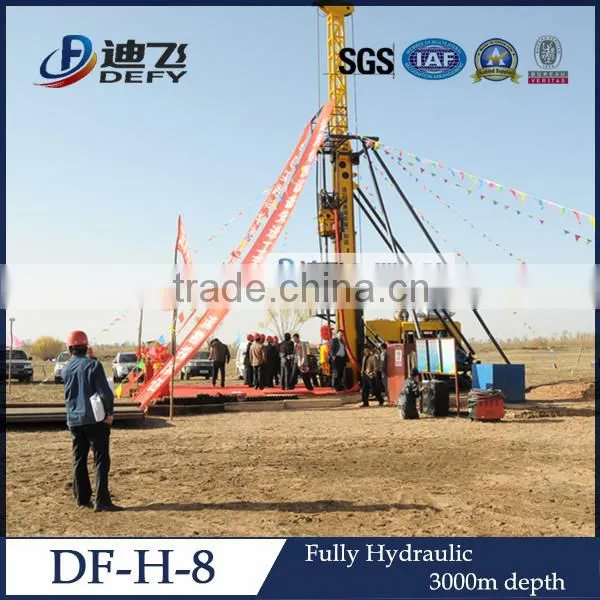

Fully Hydraulic core drilling rig for sale in global market
Brief introduction:
1>DF-H-8 Hydraulic Core Drilling Rig, an up-to-date multi-functional product,is a thoroughly new-type hydraulic core drilling rig developed on the basis of the market demand and the advanced techniques in the world.
2>It is suitable to use in plains, hills, high temperature as well as low temperature places.
3>The main machine is integrated in structure, which consists of self-propelled chassis, power, mud pump and hoist, etc.
4> It is wire-line coring, and at the same time has the unique top drive function. The maximum torque is 7200 N·m(5307 lbf·ft), which will be much more suitable for large diameter drilling in coal bed methane, hydrology and water well.
5>According to many years of experience in HDD field,our engineers install clamp and shackle device on the rig to relieve labor intensity, improve drilling efficiency and guarantee operator's safety.
Excellent in performance,high in working efficiency, easy for operation and keep the operators from dangers.
Specification:
Power Unit | Power | Cummins 6LTAA8.9-C360 264KW/2200rpm |
Drilling Capacity | BQ | 3000 m |
NQ | 2500 m | |
HQ | 2000 m | |
PQ | 1500 m | |
Drill Head | RPM of Spindle | Three Shifts/ Stepless-Change 0-1250 RPM |
Max. Torque of Spindle | 7200 Nm at 170 rpm | |
1300 Nm at 1250 rpm | ||
Capacity of Main Hoist | Hoisting force (single wire) | 180kN |
Steel Wire Diameter | 21.5 mm | |
Steel Wire Length | 50 m | |
Capacity of Wireline Hoist | Hoisting Force (single wire) | 15 kN (bare drum) |
Steel Wire Diameter | 6.3 mm | |
Steel Wire Length | 2800 m | |
Mud Pump | Type | Reciprocating Pump Triplex Plunger |
Model | BW320 | |
Stroke | 110mm | |
Output volume | 320,230,165,118 L/min | |
Discharge pressure | 4.0, 5.0, 6.0, 8.0 Mpa |

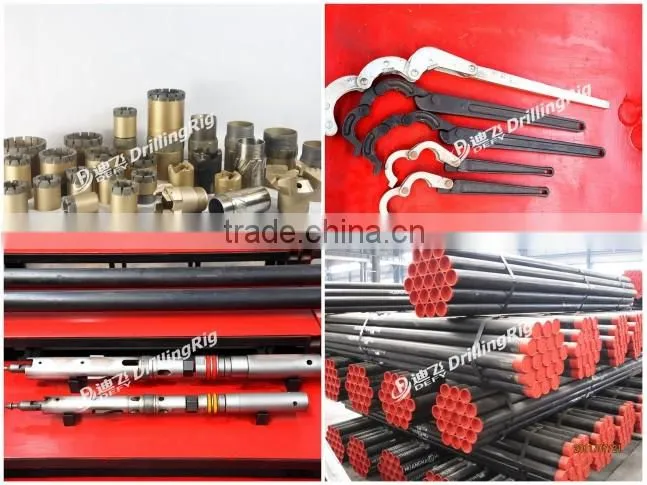

Accessories for DF-H-8:

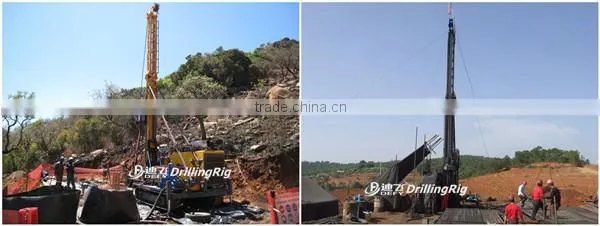

Working on Site:
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also
available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
Thanks for browse our products information. If you have any question, or want to know more about Models and quotation, Pls contact me directly:
Nora
Skype/MSN: nora-drillingrig
Phone/WhatsApp: +86-15286806707
Email: nora(@)
Tel: 86-371-55819257
Fax: 86-371-66770722
