Help Center300-600m XY-600C Portable Used Water Well Drilling Machine for Sale
Related Products
-
China Manufacturer of DF-Y-4 Hydraulic Diamond Core Drill Rig for SaleUS$ 10,000 - 31,000MOQ: 1 Set -
Good Quality XY-100 Mineral Prospecting Drilling RigUS$ 5,000 - 9,000MOQ: 1 Set
-
Economic Portable DF-180A Mini Well Drilling Rigs for SaleUS$ 2,000 - 3,500MOQ: 1 Set
-
XY-180 Soil Investigation DrillerUS$ 5,000 - 9,000MOQ: 1 Set
-
Small Model Core Sample Drilling Rig With Cheap PriceUS$ 5,000 - 9,000MOQ: 1 Set

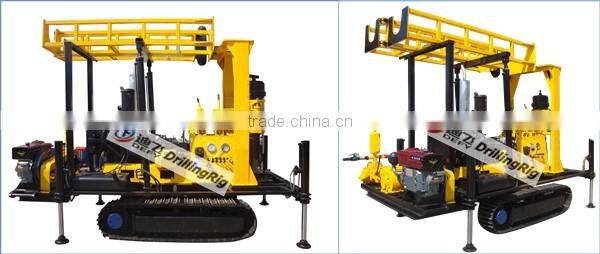

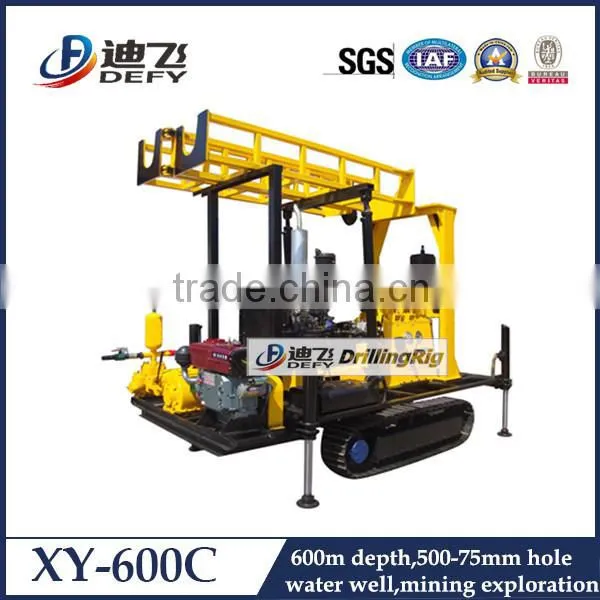

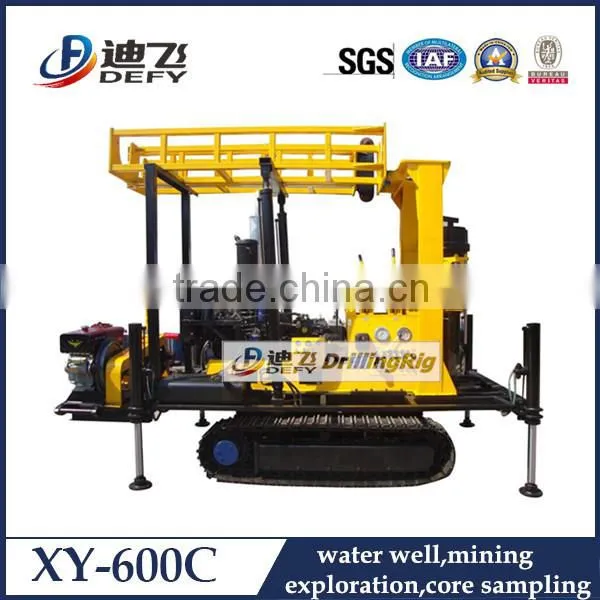

XY-600C portable used water well drilling machine for sale
XY-600C used water well drilling machine is a 600m spindle drilling rig, adopting 53HP diesel engine with electric start, BW-200/250 mud pump for water flushing and cooling drill tools, ten speed adjusment gearbox, hydraulic chuck, integrated drill tower, six wheels, sliding base.
It is widely used for drilling water well, geothermal and irrigation well, geotechnical investigation, mining exploration, bridge building, etc.
It can drill soil, sand, gravel, rock, etc.
1. Main Parameters | |||
Max. Drilling Depth |
600m |
||
Diameter of drill pipe |
Φ42,Φ50,Φ60,Φ76 |
||
Angle of vertical spindle |
90°~65° |
||
Drilling capability | |||
Φ75mm drill diameter |
600m depth |
||
Φ127mm drill diameter |
400m depth |
||
Φ219mm drill diameter |
210m depth |
||
Φ273mm drill diameter |
150m depth |
||
2. Vertical Spindle | |||
Rotation speed |
Forward 10 grades |
30-1050r/min |
|
Reverse 2 grades |
29-137r/min |
||
3. Main hoist | |||
Lifting speed of single wire |
0.5-1.9m/s |
||
Diameter of wire rope |
12.5mm |
||
Carry capacity of single wire |
4000kg |
||
4. Mud pump(as per your choice) | |||
Horizontal triplex mud pump |
BW-200 |
||
Displacement |
200L/min |
||
5.Power supply(choose one between the following two) | |||
Diesel engine |
Model 4100,38kw(50HP) |
||
Electrical motor |
Y180M-4B35,22kw |
||
6.Six-wheel Trailer |
|||
Walking speed |
25Km/hr |
||
1. Can it drill hard rocks?
Yes, XY-600C core sample drilling machine is a spindle drilling rig, designed with hydraulic diamond drilling system. Using diamond drill bit for hard rocks, with good performance.
2. How big power does it use?
It uses 53Hp diesel engine, with electric start, very easy to use.
It can also use electric motor for customer convenience.
3. How to buy?
After confirming machine, we will issue proforma invoice for your deposit. Then, produce machine. After finishing production, we will send you photos for confirmation. If good, pay us the balance payment. Finally, we will make delivery and shipping out.
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
If you have interest in our portable water well drilling machine, please don't hesitate to contact me for more information. Our engineer will create complete set of configurations according to your actual drilling needs.
Contact us: Lucile Liu
Tel: 0086-371-55819257
Fax: 0086-371-66770722
Mobile & Whatsapp: 0086-18135686181
Mail: lucile ( at )
Skype: defy007
Facebook: lucileliu1
