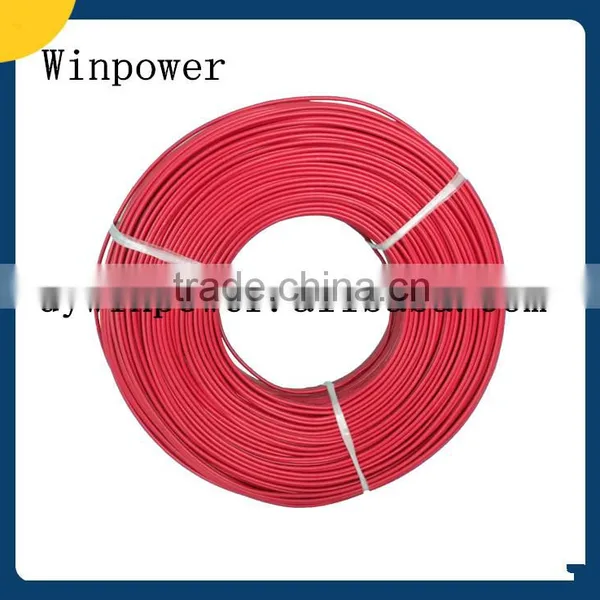

UL1569 10AWG PVC insulated red copper wire
- Rated temperature: 80°C 90°C 105°C
- Rated voltage: 300V
- Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
- Conductor: stranded tinned copper conductor 30~10AWG
- Insulation: PVC insulation, comply with ROHS environmental standard
- Flame Retardant Test: UL VW-1, CSA FT1 flame Test
- Uniform thickness to ensure stripping and cutting easily
- For general purpose internal wiring of appliation
MARKING:
E330446 AWM STYLE 1569 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
AWG | CONSTRUCTION (No./mm) | DIA.(mm) | THICKNESS (mm) | O.D. (mm) | ||
20 | 1/0.813 | 0.81 | 1.53 | 4.00 | 35.2 | 2,000 |
26/0.16 | 0.94 | 1.53 | 4.10 | 36.7 | 2,000 | |
18 | 1/1.024 | 1.02 | 1.53 | 4.20 | 22.2 | 2,000 |
16/0.254 | 1.17 | 1.53 | 4.30 | 23.2 | 2,000 | |
16 | 1/1.29 | 1.29 | 1.53 | 4.45 | 14 | 2,000 |
26/0.254 | 1.49 | 1.53 | 4.65 | 14.6 | 2,000 | |
14 | 1/1.63 | 1.63 | 1.53 | 4.80 | 8.78 | 2,000 |
41/0.254 | 1.88 | 1.53 | 5.05 | 8.96 | 2,000 | |
12 | 65/0.254 | 2.36 | 1.53 | 5.70 | 5.64 | 2,000 |
10 | 105/0.254 | 3.10 | 1.53 | 6.30 | 3.546 | 2,000 |
Packing:1.305m per roll with PE film as outer package
2. 4 rolls are to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manfuactured
4. Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour.
2) Take flight to Changzhou, and aboard Harmony train from Changzhou Station to Danyang station about 20 minutes.
