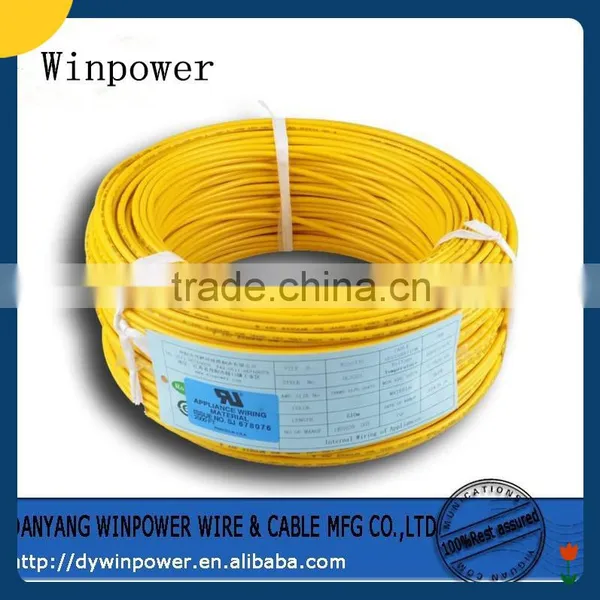

PVC insulated copper conductor electrical wire UL 1672
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
Specification:UL 1672 14 awg
Rated temperature: 105°C
Rated voltage: 300V
Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
Conductor: stranded tinned copper conductor
Insulation: PVC insulation, comply with ROHS environmental standard
Flame Retardant Test: UL VW-1, CSA FT1 flame Test
Uniform thickness to ensure stripping and cutting easily
Applied into electrical equipments as internal wire
MARKING:
E330446 AWM STYLE 1672 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR |
INSULATION | COVERING | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | ||||
AWG | CONSTR- UCTION (No./mm) | DIA. (mm) | INSULATION THICKNESS (mm) | O.D. (mm) | JACKET THICKNESS (mm) | O.D. (mm) | ||
28 | 1/0.32 7/0.127 | 0.32 0.38 | 0.44 0.46 | 1.20 1.30 | 0.40 0.40 | 2.00 2.10 | 227 239 | 2,000 |
26 | 1/0.404 7/0.16 | 0.40 0.48 | 0.45 0.46 | 1.30 1.40 | 0.40 0.40 | 2.10 2.20 | 143 150 | 2,000 |
24 | 1/0.511 11/0.16 | 0.51 0.61 | 0.49 0.49 | 1.50 1.60 | 0.40 0.40 | 2.30 2.40 | 89.3 94.2 | 2,000 |
22 | 1/0.643 17/0.16 | 0.64 0.76 | 0.48 0.47 | 1.60 1.70 | 0.40 0.40 | 2.40 2.50 | 56.4 59.4 | 2,000 |
20 | 1/0.813 26/0.16 | 0.81 0.94 | 0.44 0.48 | 1.70 1.90 | 0.40 0.40 | 2.50 2.70 | 35.2 36.7 | 2,000 |
18 | 1/1.024 16/0.254 41/0.16 | 1.02 1.17 1.18 | 0.44 0.47 0.46 | 1.90 2.10 2.10 | 0.40 0.40 0.40 | 2.70 2.90 2.90 | 22.2 23.2 23.2 | 2,000 |
16 | 1/1.29 26/0.254 | 1.29 1.49 | 0.46 0.46 | 2.20 2.40 | 0.40 0.40 | 3.00 3.20 | 14.0 14.6 | 2,000 |
14 | 1/1.60 41/0.254 | 1.60 1.88 | 0.45 0.46 | 2.50 2.80 | 0.40 0.40 | 3.30 3.60 | 8.78 8.96 | 2,000 |
Packing: packed in PE film and carton
Delivery: 3-15days after receiving the down payment
Terms of payment:T/T (30% down payment and pay off after received the duplicate of B/L )
L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manufactured
4. Convenient transporation to Danyang :
1) flight to Shanghai ,and aboard one-hour harmony train from Shanghai station to Danyang Station
2) Flight to Changzhou ,and aboard 20 minute train from Changzhou Station to Danyang Station
