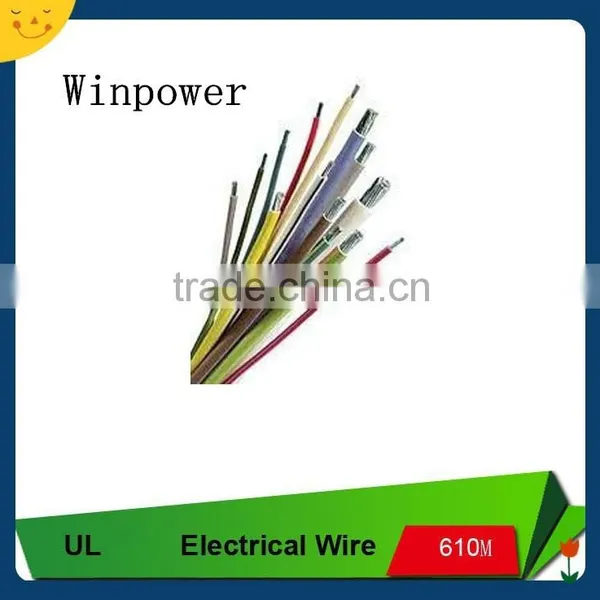

PVC insulated strand copper conductor wire UL 1569 14AWG
- 200 Kilometer / Kilometers per Month
- Shanghai/Zhenjiang Port
- T/T
- 60227 IEC 52/53 RVV, 60245 IEC57/54/66 YZ, YZW, YCW Flexible Cord
- SAA H05VV-F, 0.6/1KV Flexible Cord
- H05V2V2-F, H05Z1Z1-F, H05VV-F, H07RN-F, H05RN-F, H05RR-F Power Cord
- EV cable UL/CUL Approved UL62 UL1581 Standard
- SJEOOW SJEOW SJEW SJE SJEO SJEOO 300V TPE Flexible Cord UL62 UL1581 Standard
- SJOOW SJOW SJW SJ SJO SJOO 300V Rubber Flexible Cord UL62 UL1581 Standard
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Winpower | Model Number: | UL 1569 14AWG 41/0.254mm |
Type: | Insulated | Application: | Other, electrical equipment wire | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description
PVC insulated strand copper conductor wire UL 1569 14AWG
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
Specification:UL 1569 14AWG
Rated temperature: 105°C
Rated voltage: 300V
Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
Conductor: stranded tinned copper conductor 30~10AWG
Insulation: PVC insulation, comply with ROHS environmental standard
Flame Retardant Test: UL VW-1, CSA FT1 flame Test
Uniform thickness to ensure stripping and cutting easily
Applied into electrical equipments as internal wire
MARKING:
E330446 AWM STYLE 1569 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
AWG | CONSTRUCTION (No./mm) | DIA.(mm) | THICKNESS (mm) | O.D. (mm) | ||
20 | 1/0.813 | 0.81 | 1.53 | 4.00 | 35.2 | 2,000 |
26/0.16 | 0.94 | 1.53 | 4.10 | 36.7 | 2,000 | |
18 | 1/1.024 | 1.02 | 1.53 | 4.20 | 22.2 | 2,000 |
16/0.254 | 1.17 | 1.53 | 4.30 | 23.2 | 2,000 | |
16 | 1/1.29 | 1.29 | 1.53 | 4.45 | 14 | 2,000 |
26/0.254 | 1.49 | 1.53 | 4.65 | 14.6 | 2,000 | |
14 | 1/1.63 | 1.63 | 1.53 | 4.80 | 8.78 | 2,000 |
41/0.254 | 1.88 | 1.53 | 5.05 | 8.96 | 2,000 | |
12 | 65/0.254 | 2.36 | 1.53 | 5.70 | 5.64 | 2,000 |
10 | 105/0.254 | 3.10 | 1.53 | 6.30 | 3.546 | 2,000 |
Packing: 305m per roll ,to be packed in PE film.
4 rolls are to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment : 1.T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manfuactured
4. Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Station about one hour.
2) Take flight to Changzhou, and aboard Harmon train from Changzhou Station to Danyang Station about 20 minutes
