UL1569 PVC insulated copper electrical cable wire
- 200 Kilometer / Kilometers per Month
- Shanghai Port
- T/T
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Winpower | Model Number: | UL 1569 12AWG 65/0.254mm |
Type: | Insulated | Application: | Other, electrical equipment wire | Conductor Material: | Copper |
Conductor Type: | Stranded | Insulation Material: | PVC |
Product Description

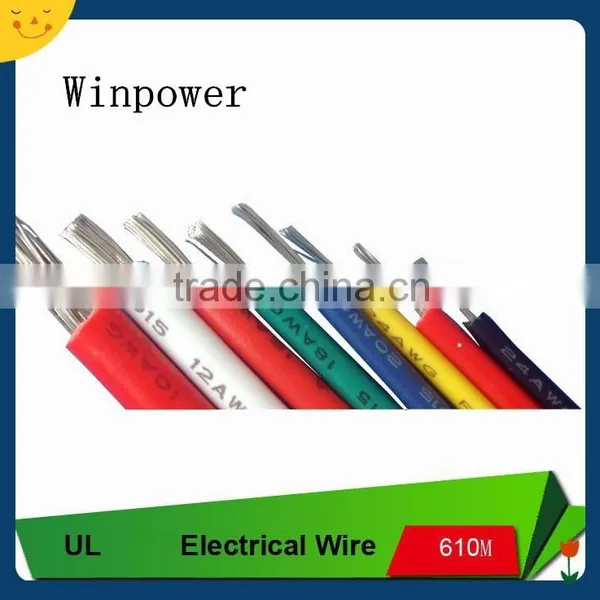

UL1569 PVC insulated copper electrical cable wire
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
Specification:UL 1569 12 AWG
Rated temperature: 105°C
Rated voltage: 300V
Reference Standard: UL758, UL1581,CSAC22.2NO.210.2
Conductor: stranded tinned copper conductor
Insulation: PVC insulation, comply with ROHS environmental standard
Flame Retardant Test: UL VW-1, CSA FT1 flame Test
Uniform thickness to ensure stripping and cutting easily
Applied into electrical equipments as internal wire
MARKING:
E330446 AWM STYLE 1569 AWG NO. 105°C 300V VW-1 --- AWM I A 105°C 300V FT1 RoHS COMPLIANT DANYANG WINPOWER
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
AWG | CONSTRUCTION (No./mm) | DIA.(mm) | THICKNESS (mm) | O.D. (mm) | ||
20 | 1/0.813 | 0.81 | 1.53 | 4.00 | 35.2 | 2,000 |
26/0.16 | 0.94 | 1.53 | 4.10 | 36.7 | 2,000 | |
18 | 1/1.024 | 1.02 | 1.53 | 4.20 | 22.2 | 2,000 |
16/0.254 | 1.17 | 1.53 | 4.30 | 23.2 | 2,000 | |
16 | 1/1.29 | 1.29 | 1.53 | 4.45 | 14 | 2,000 |
26/0.254 | 1.49 | 1.53 | 4.65 | 14.6 | 2,000 | |
14 | 1/1.63 | 1.63 | 1.53 | 4.80 | 8.78 | 2,000 |
41/0.254 | 1.88 | 1.53 | 5.05 | 8.96 | 2,000 | |
12 | 65/0.254 | 2.36 | 1.53 | 5.70 | 5.64 | 2,000 |
10 | 105/0.254 | 3.10 | 1.53 | 6.30 | 3.546 | 2,000 |
Packing:1.305m/coil ,with PE film as outer package
2. 4 coils to be packed in one carton.
Delivery: 3-15 days after receiving the down payment
Terms of payment:
1. T/T (30% down payment and pay off after receiving the duplicate of B/L)
2. L/C at sight
1. Sample Available
2. OEM are offered
3. Customer wire can be manufactured
4. Convenient transportation to Danyang
1) Flight to Shanghai ,and aboard Harmony train from Shanghai station to Danyang Station by one hour
2) Flight to Changzhou ,and aboard Harmony train from Changzhou station to Danyang Station by 20 minutes.
