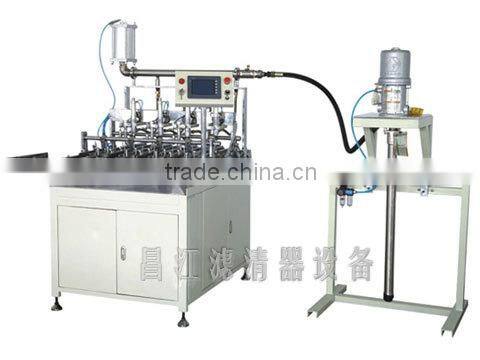

Filter End Cap PVC Gluing Pleater Machine Multifunction

Name: Filter End Cap PVC Gluing Pleater Machine Multifunction
Brand: CHANGJIANG
SKU: 117482545
Availability: InStock

US$ 500 - 24,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

CHANGJIANG

Model Number:

CJZJ-4 Cover

Ruian Changjiang Filter Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO AND SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name CHANGJIANG

Model Number CJZJ-4 Cover

After-sales Service Provided Engineers available to service machinery overseas

Consist

1. Main Machine

2. Pump

3. Computer Control Box

Specification

Available ID of the End Cap	60-100mm
Max End Caps	2pcs
Speed	15pairs/min
Viscidity of Glue	≤50000CP
Glue Kind	PVC( high temperature adhesive glue)
Power Supply	380V/50HZ
Conveyer Motor Power	0.75kw
End Cap Against Motor Power	90w
Working Air Pressure	0.6Mpa
Pump Air Pressure	≤0.45Mpa
M/C Weight	400kg
M/C Size	160019801430

Features

Simple and easy to adjust the action of the cap conveying and glue dispensing by computer control.
Machine works consistently and steadily.
This machine has the function of even glue while glue dispensing, so the glue on the end cap will be evenly, glue the up-down caps at the same time to develop the efficiency and easy for the next process.
Adopts import pump to ensure correct gluing out amount.
This machine is equipped with glue storage to make it glued evenly

Applications

The machine is used for glue dispensing on the up&down end caps of the spin on filter element
