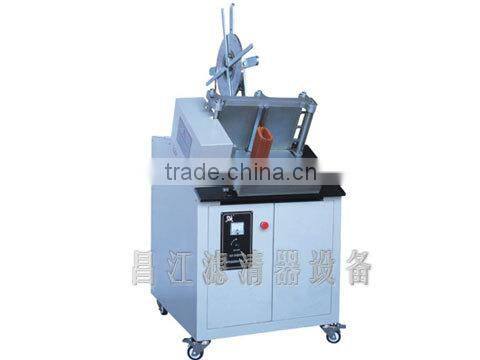

Help Center2016 Steel Clipping Machine for Car Air Filter Euipment
Related Products
-
Full Automatic Filter Making Machine , Auto Turntable Filter House Printing MachineUS$ 500 - 24,000MOQ: 1 Set -
Automatic Car Oil Filter Spiral Core Making MachineUS$ 500 - 24,000MOQ: 1 Set
-
Filter Cartridge Machine ,Welding Machine Marking Machine From Filter Manufacturing EquipmentUS$ 500 - 24,000MOQ: 1 Set
-
Customized Filter Spiral Winding MachineUS$ 500 - 24,000MOQ: 1 Set
-
Full-auto High Speed Turntable Seaming Production Line Of Oil Making MachineUS$ 500 - 24,000MOQ: 1 Set
First, the technical parameters
1, capacity: 10 / min
2, a high degree of filter paper: 20 ~ 250mm
3, origami height: 10 ~ 35mm
4, steel specifications: a: thickness 0.25 ~ 0.3mm b: width of 12mm
C: disk is expected within ≥ 150mm, ≤ 650mm outside
5, Motor Power: 1.1kw
6, supply voltage: 380V/50Hz
7, Machine Weight: 400kg
8, Overall dimension: 820 × 750 × 1450mm (L × W × H)
Second, the main characteristics of
1, strip shape, clamping, cutting, auto-complete the entire process of return.
2, with strip joints origami folder filter, filter leakage can be avoided.
3, in the strip in the roll forming flower processing,clip paper solid and not easily detached.
4,Clip paper the height and width can be easily adjusted, and able to maintain its consistency.
5, this machine a high degree of automation, easy operation, unique design.
Third, the scope of application
It is mainly used for sealing at both ends of filter paper
