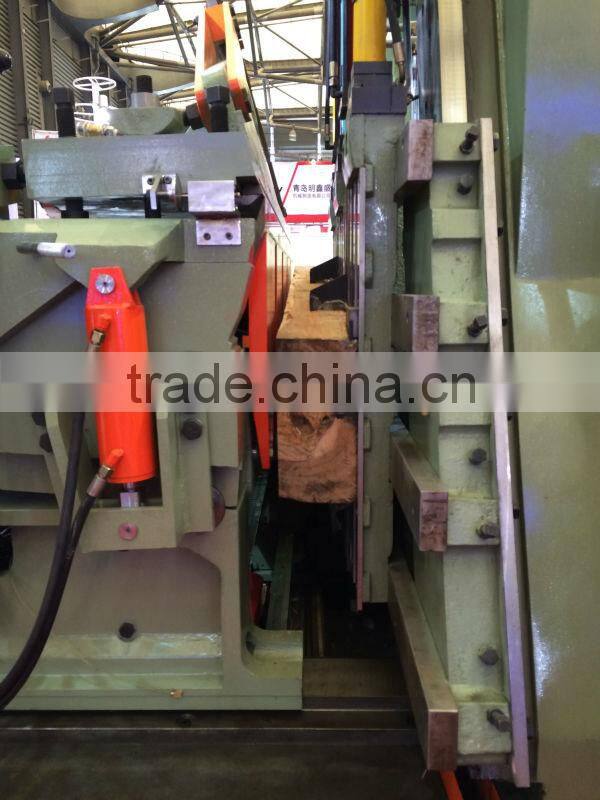

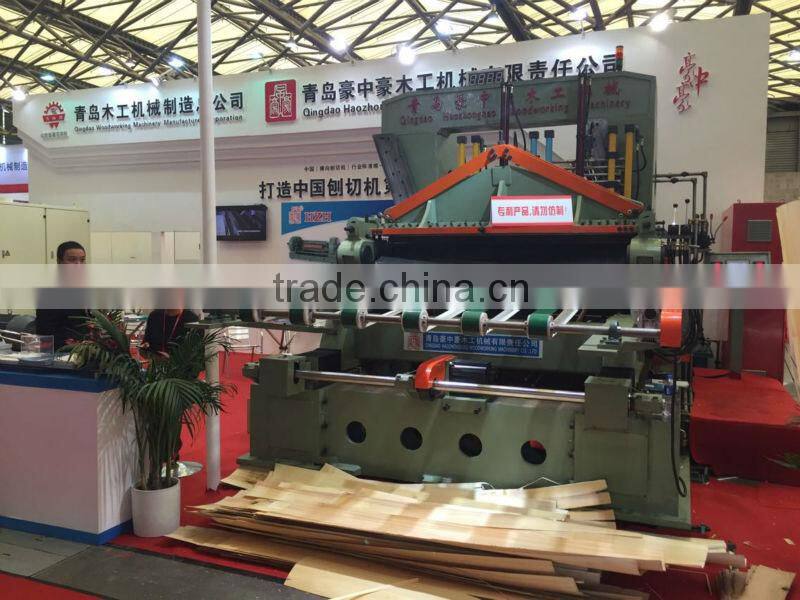

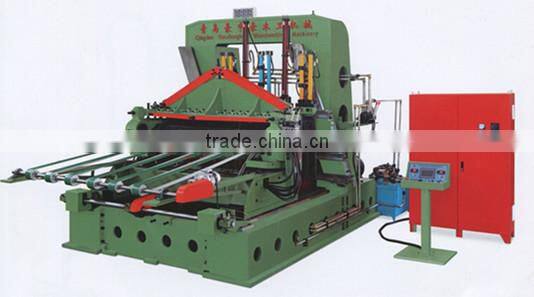

BB1326T Woodworking Face Veneer Vertical Slicer Machine

Specifications

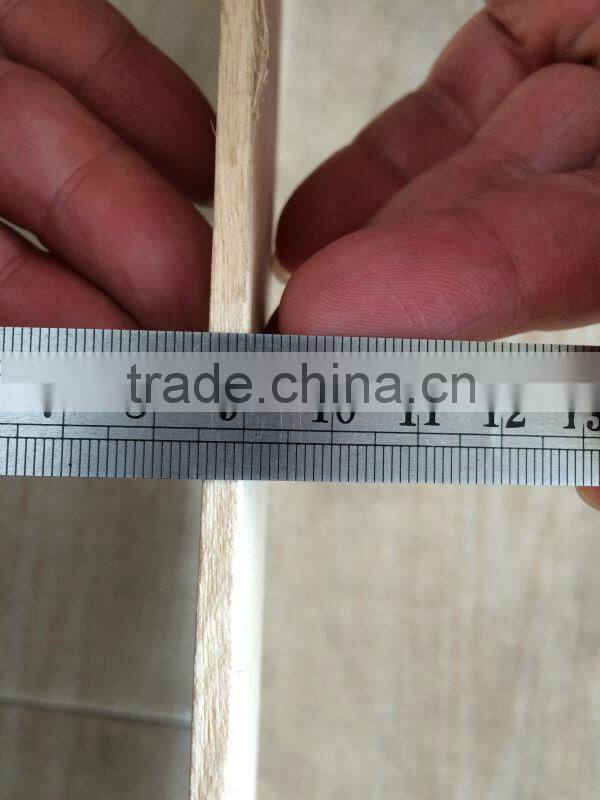

1 Slicing thickness:0.2-5mm
2 Max cutting speed is up to 40 pcs/min.
3 Surface is smooth
4 certificated by ISO9001 /CE

We supply High quality Woodworking Vertical Veneer Slicer machine Model BB1326T

 1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min

 2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system

 3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency

 4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator

 5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly

 6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality

 7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed

 8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.

/v_show/id_XOTE0MzY2NjQ0.html

                                     hydraulic blade holding system

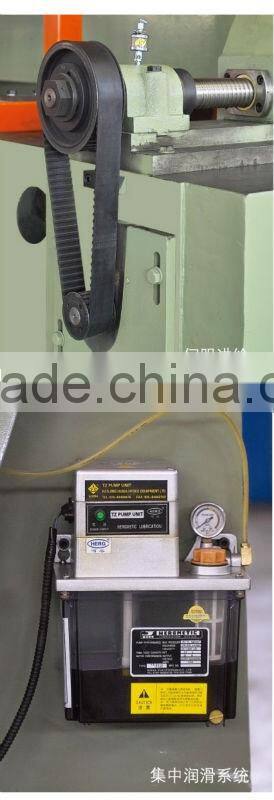

feeding system/Lubricating center

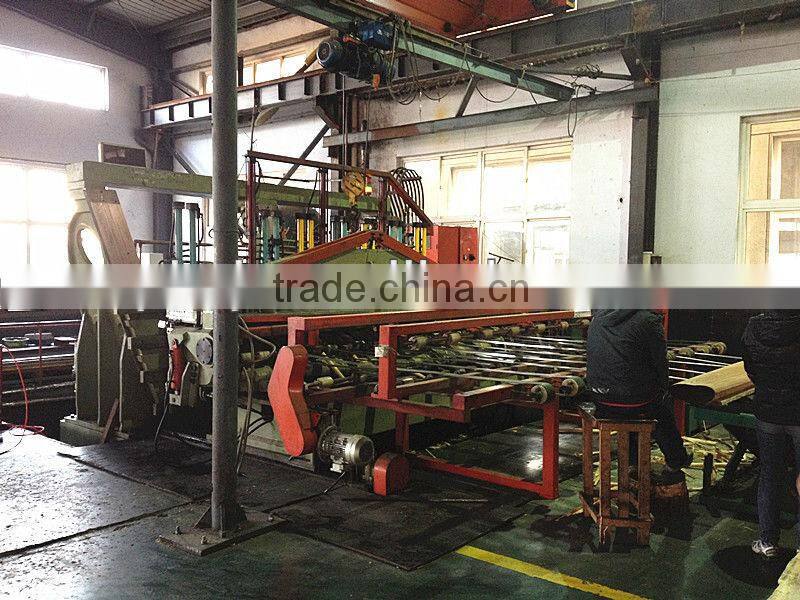

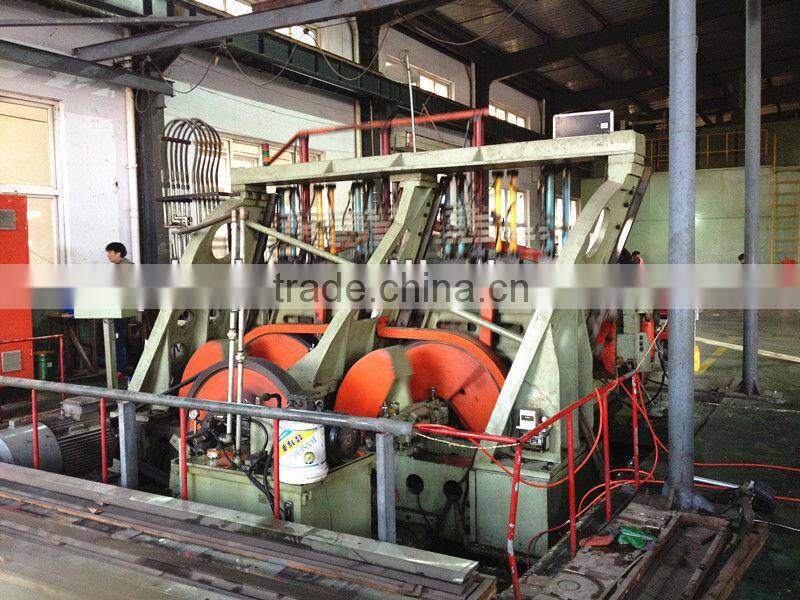

In working condition

Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment.

Package: Bare packing and fit in container directly.

Delivery: About 50 days after receive the down payment.

Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

What is the Max veneer width sliced by machine?

Usually 600, width can reach 1300mm by BB1135B model

Why choose HAOZHONGHAO?

1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.

2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company

3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.

4 Location: One hour reach Qingdao port
