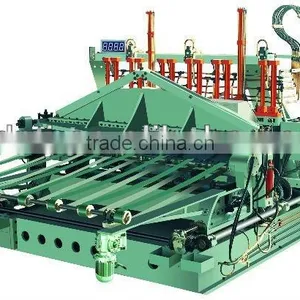

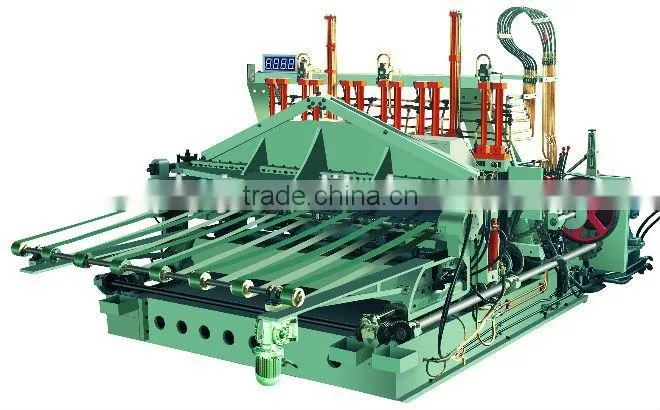

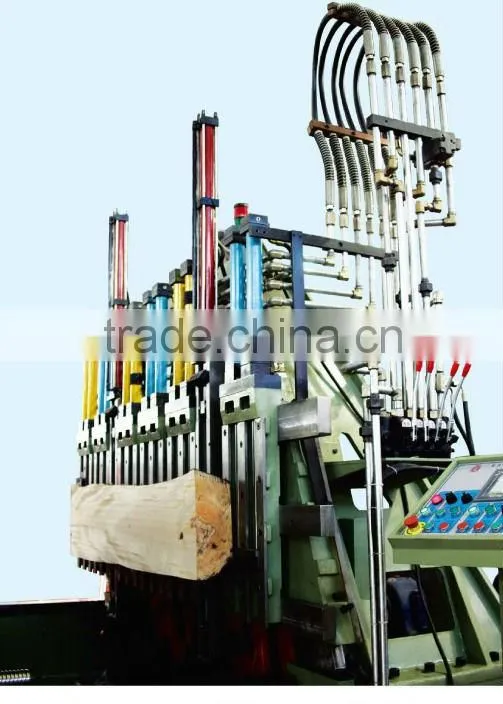

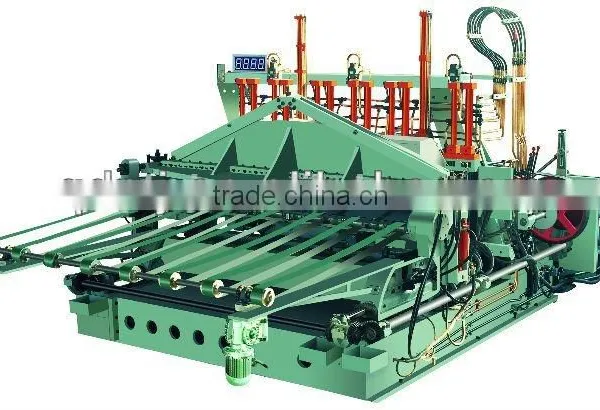

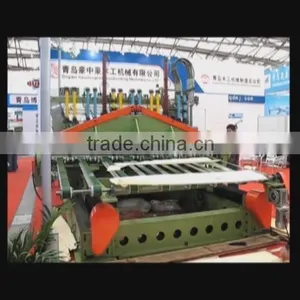

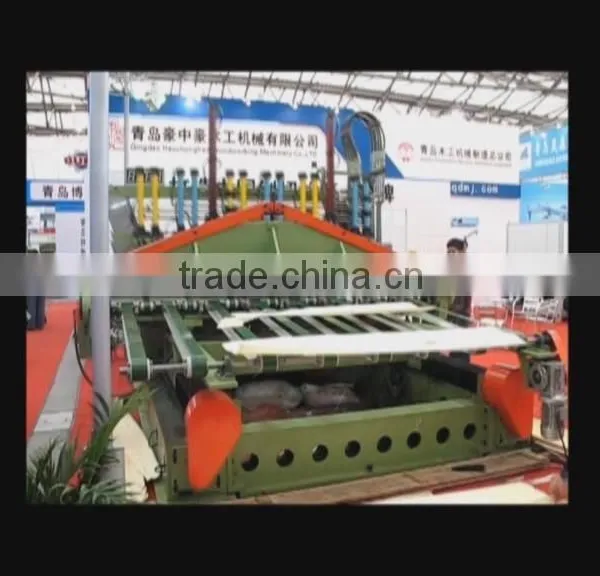

WE OFFERING U VERY HEAVY DUTY VERTICLE VENEER SLICER MODEL BB 1332
| MODEL | BB1332 |
| max allowed wood size | 3000x450x500mm |
| size of the planer tool | 3200x200x19mm |
| slicing thickness | 0.2-3mm |
| slicing speed | max.80pcs/min |
| wood clamping method | Hydraulic control |
| power source | 41.35/44.85kw |
| main motor | 30kw |
| motor of oil pump | 5.5kw |
| knife-holder quick back motor | 2kwx2/7.5Kw |
| circulating heat water motor | 0.75kw |
| veneer transport motor | 1.1kw |
| size of body | 6800x4600x3700mm |
| net weight | 21T |
Features Overview
1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism, guarantee movement normally smoothly and precisely.
BB1332 Veneer slicer online video: /v_show/id_XNTM4MjYwNTI4.html

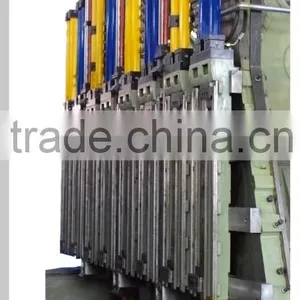

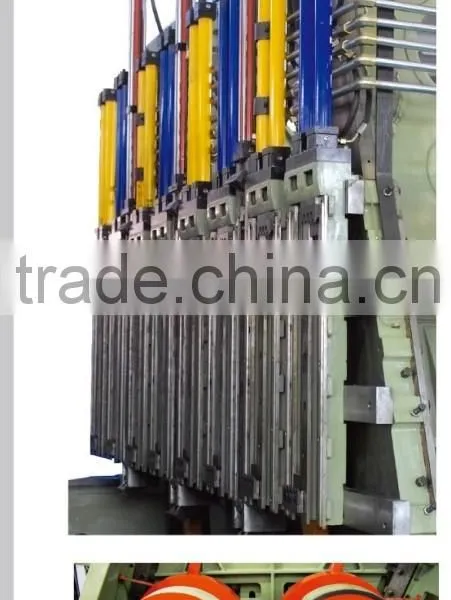

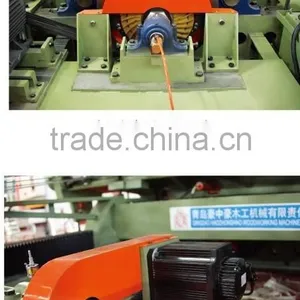

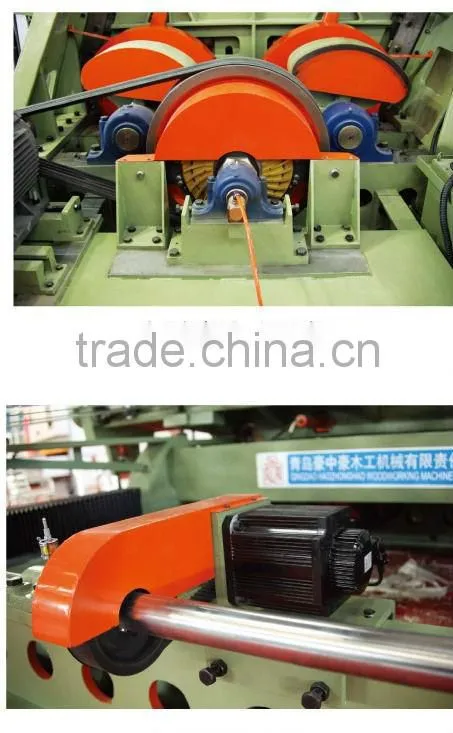

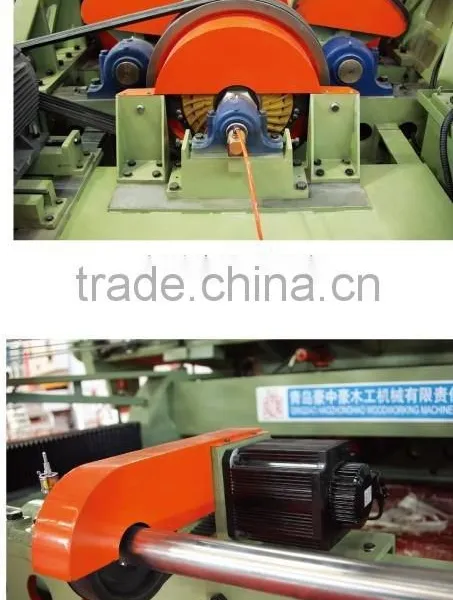

pneumatic brake system/ servo feeding system hydraulic clamping system

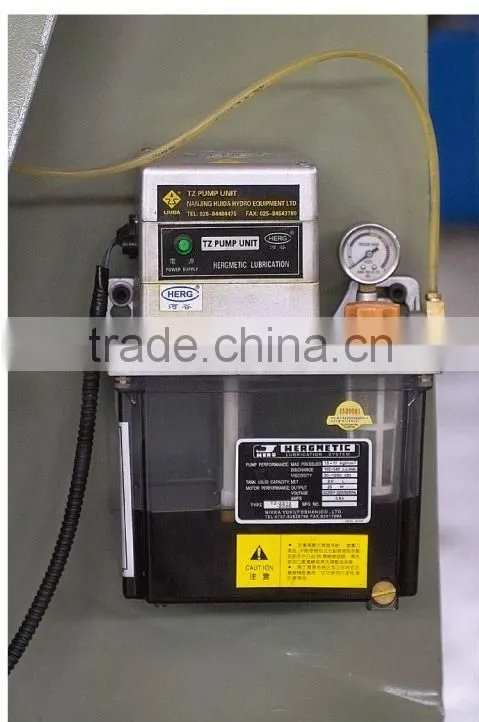

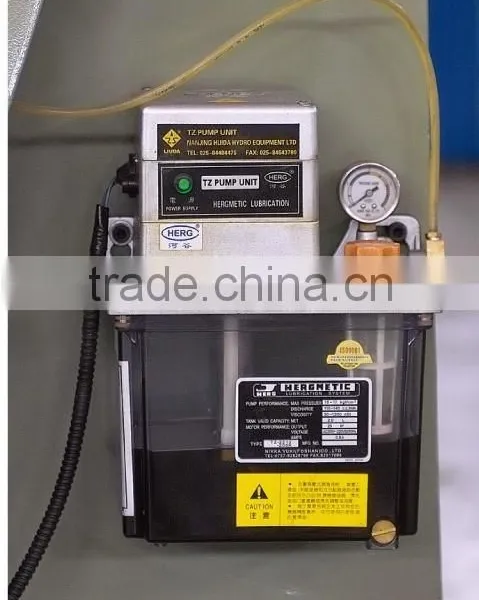

Self lubricating center
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
