We supply high quality BB1135B woodwokring wood venner slicer machine
| Max cutting size | 2600x1300x800mm |
| Blade size | 3550x200x20mm |
| Veneer thickness | 0.1-2mm(changs according different material ) |
| Cut speed | 5-26pcs/min |
| Clamping methods | (Hydraulic drive with vacuum disc) |
| Total power | 55.23kw |
| Main motor power | 37kw(DC) |
| Hydraulic pump | 5.5KW |
| Vaccum pump | 7.5KW |
| Feed motor | 4.3KW(servo motor) |
| Overall size | 9300x5800x2820mm |
| Weight | 26T |
Video online: /v_show/id_XNTM4MjU2MTY0.html
Youtube Video: https://youtu.be/LNcoawqO74A

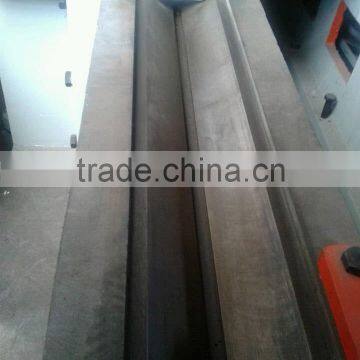

1 Double V-chutes are used for both sides the machine, with high parallel; special polymer wear-resistant material coated on the surface.Machine runs in higher stability and with less friction.
2 Serve motor control system is used for timber feeding, guarantee the veneer thickness in a high precision, avoiding blade scratch on the timber

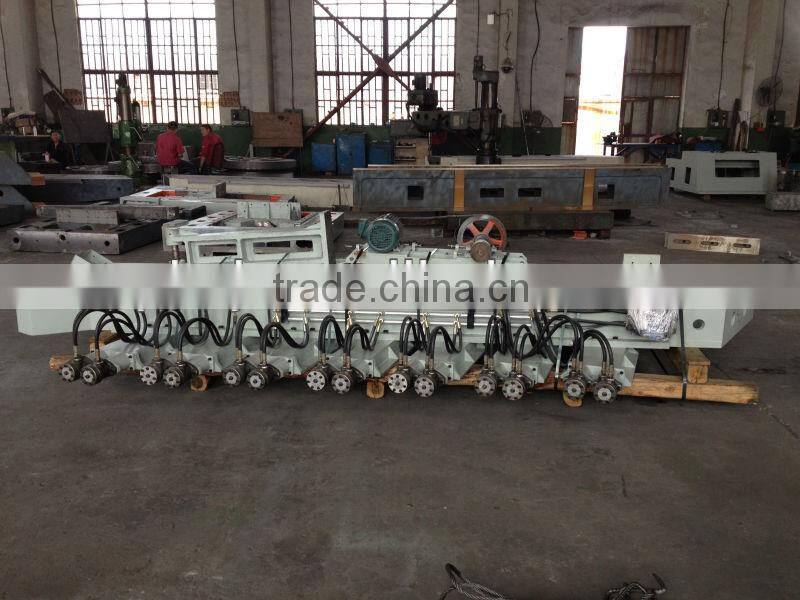

3 Whole casted beam holds the log stongly. and hydraulic driven hooks clamp the log tightly and effectively Vacuum system is used inside the log beam. helping hdding ttre big timber avoiding its deforming or dropping down duringg the cutting electric control
4 All switch button are gathered together in cabinet Single person can operate the machine avoiding the dangerous caused by fault
5 Special designed big size driving gear runs smoothly with low noise when it runs in high speed

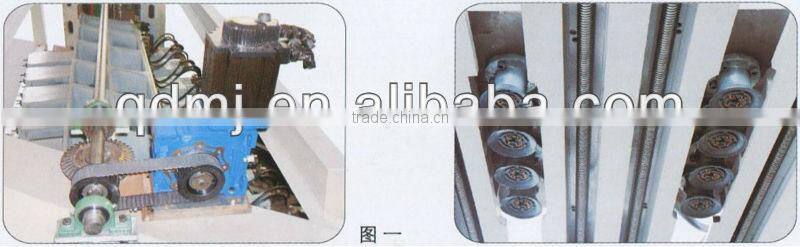

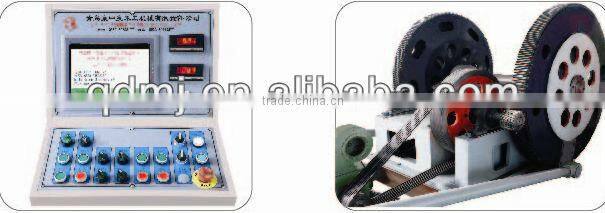

serve motor control Vacuum system holding timber
console desk big size driving gear

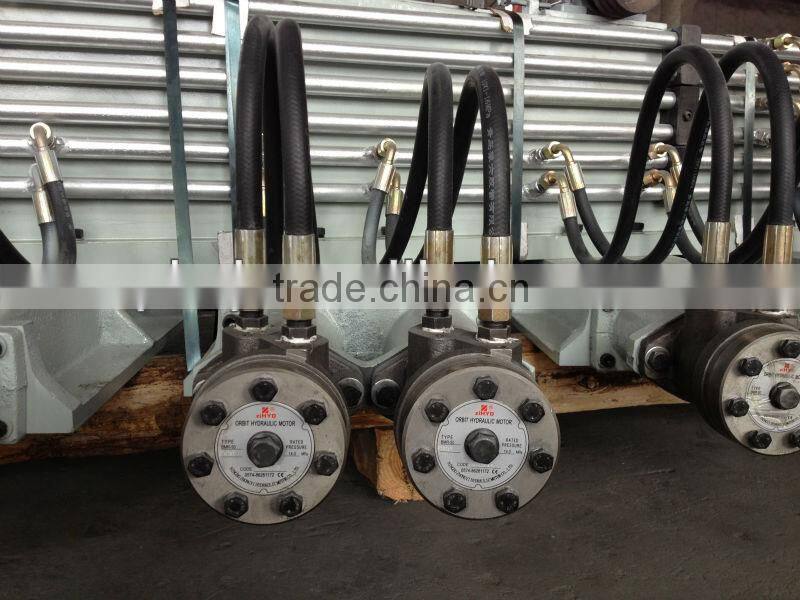

High quality Hydraulic wood clamping motor
We are at 2013 International Forestry and Woodworking Machinery Exhibition in Shanghai

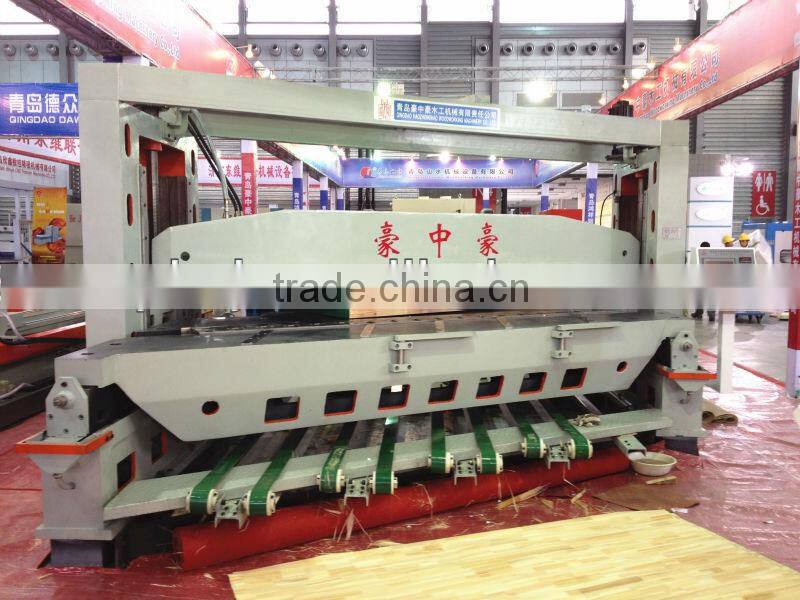

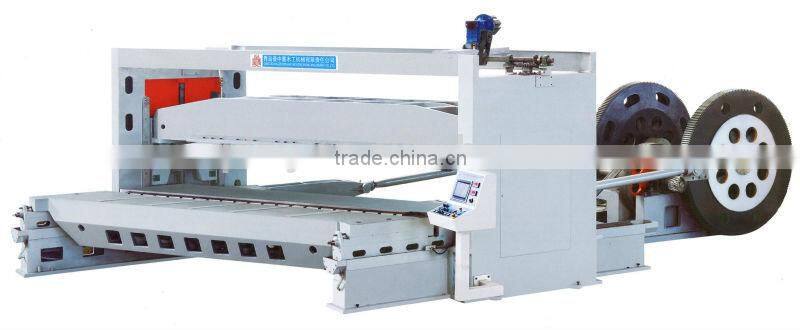

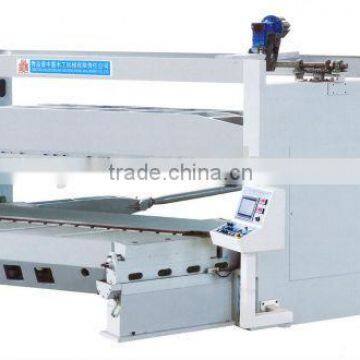

Horizontal Veneer Slicer Machine

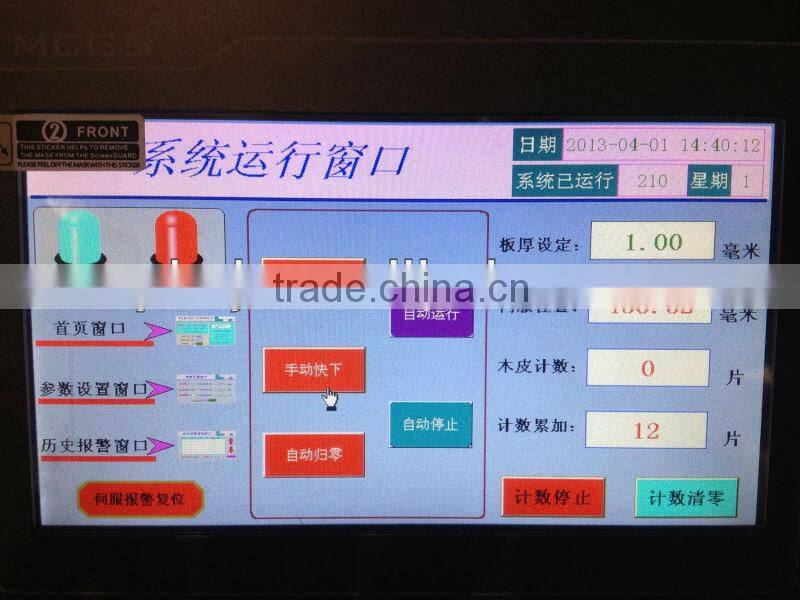

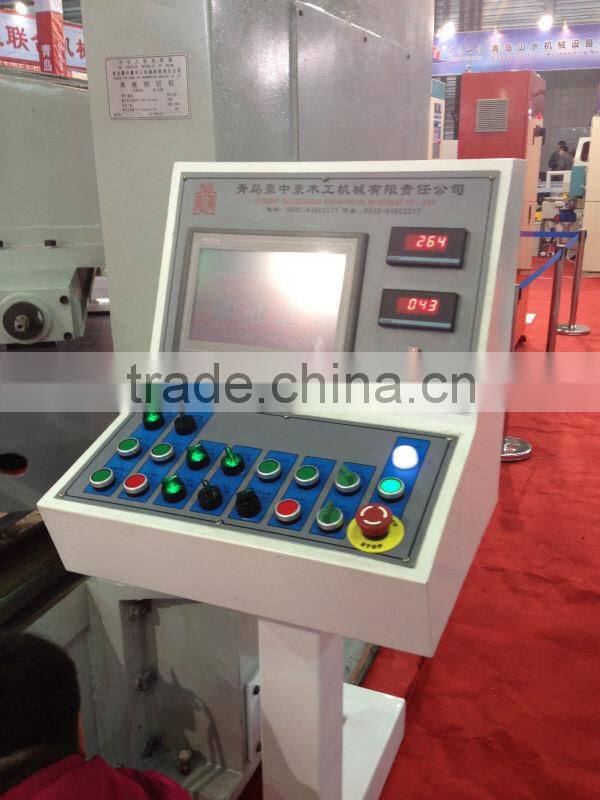

PLC control panel

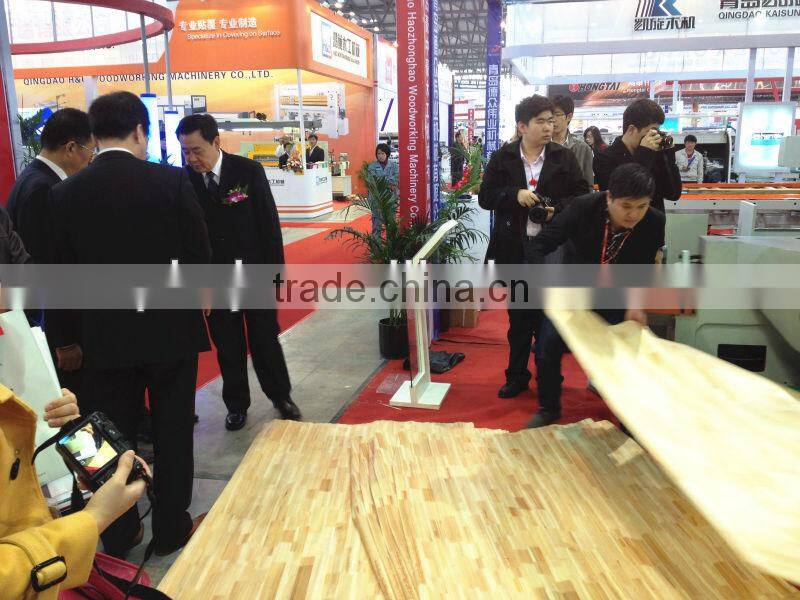

slicing the veneer in the exhibition

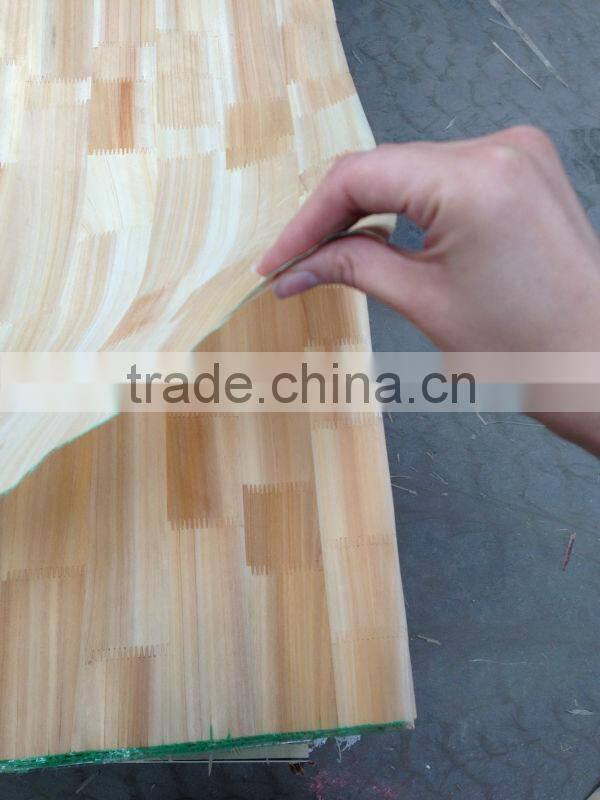

sliced veneer in factory
Package: Bare packing and fit in container directly.
Delivery: About 30 days after receive the down payment.
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, we got license from Italian DMC Corp. in 1985 to produce wide belt sanders. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9000 in the industry, and also a hi-tech enterprise in Qingdao.
Our website is ; you could get more information about our company and our products.
Certification:
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
What is the Max veneer width sliced by machine?
Usually 600, width can reach 1300mm by BB1135B model
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, cooperative with Italy DMC Company
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao port
How to contact me?
More details please contact Simon guan
Email: sales5 (at)
Skype: simon98178
Tel: 0086-84822277
Mobile: 0086-13455297096
